Home > Electrical & Electronics > Switch > Rotary Switch > 2016 * IEC60947-3, Manufacture 100,000times ,Class III IP20 32A 4-CELL 2POS Main Switch (OFF-ON Switch)
2016 * IEC60947-3, Manufacture 100,000times ,Class III IP20 32A 4-CELL 2POS Main Switch (OFF-ON Switch)
US$ 6.36 - 7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
DW31-32/4
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20A 5-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 1.1 - 8.1MOQ: 1 Piece -
32A 4-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 1.1 - 8.1MOQ: 1 Piece
-
25A 4-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 1.1 - 8.1MOQ: 1 Piece
-
20A 2-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 1 - 8.1MOQ: 1 Piece
-
Good Quality 63A 4-CELL 3POS/2POS Cam Switch With Protective Enclosure (IP65), Cam Switch/US$ 1.1 - 8.1MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
YOMIN
Model Number
DW31-32/4
Max. Current
32A
Max. Voltage
690V AC
Mechanical Life
100,000times (Operation frequency is 120 times per hour

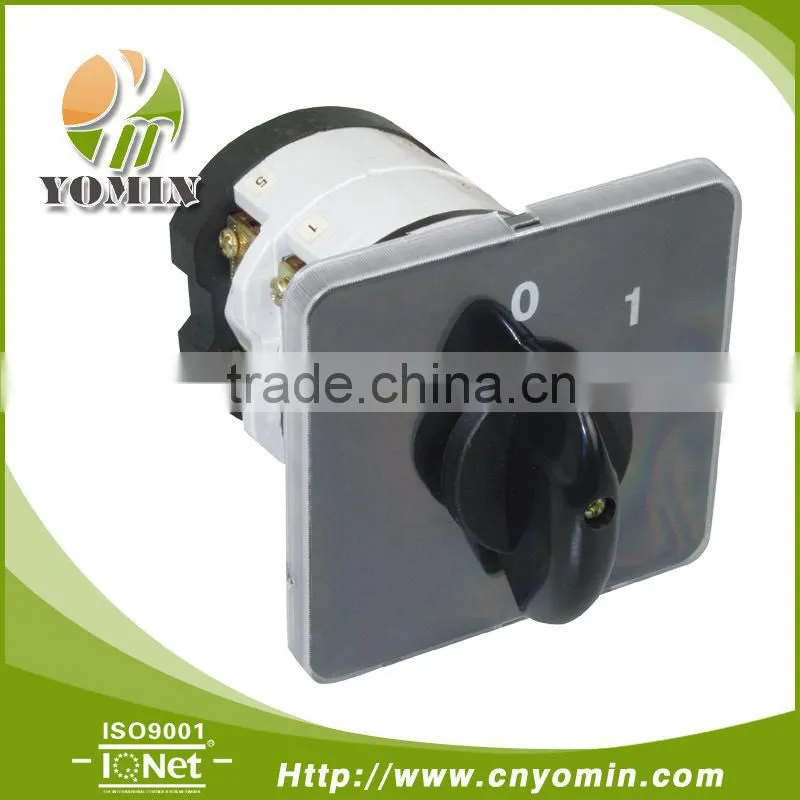

32A 4-CELL 2POS Main Switch (OFF-ON Switch)
Model: DW31-32/4
Product Overview
The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switch are suitable for AC as well as DC application used for virtually all purposes, such as motor control, panel meter switching, control and distribution panel, etc.
Construction Demo:
Crossing Competetiors:
----- BRETER -----
Specifications
- Max. Current...................................................32A
- No. of Cells.....................................................4-Cell
- Function..........................................................0 - 1 (OFF-ON)
- No. of Switch Positions.................................2POS.
- Max. Voltage....................................................690V AC
- Frequency........................................................50/60Hz
- Operation Series.............................................Rotary Cam
- IP / NEMA Rating.............................................IP20
- Working Temperature....................................-25°C~+40°C
- Altitude............................................................≤2,000m
Relative Humidity............................................≤50% @ Max. +40°C, (NOTE: allow higher humidity with low temperature less than 40°C eg.:humidity 90% @ 20°C)
- Customized Escutcheon................................Provided
- Standards........................................................IEC60947-3, EN60947-3, VDE0660 part 107, IEC60204, VDE0113,
- Mechanical Life...............................................100,000times
- Electrical Life...................................................30,000times
- Operative Frequency......................................120times per hour.
- Pollution Rating..............................................Class III
- Installation.......................................................Panel Mounting.
- Sample Service...............................................Pay to provide
- Quality Assurance..........................................24 months
- Item Condition.................................................Brand-New

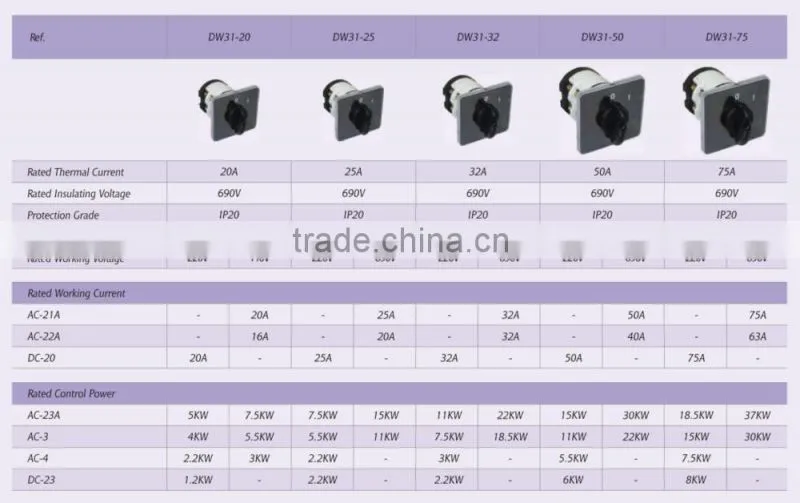

Selection Form
| Item | Rated Thermal Current | No. of Cells | Case Qty. |
| Model | (A) | (Pcs.) | |
| DW31-20/1 | 20 | 1 | 100 |
| DW31-20/2 | 20 | 2 | 100 |
| DW31-20/3 | 20 | 3 | 100 |
| DW31-20/4 | 20 | 4 | 100 |
| DW31-20/5 | 20 | 5 | 100 |
| DW31-25/1 | 25 | 1 | 72 |
| DW31-25/2 | 25 | 2 | 72 |
| DW31-25/3 | 25 | 3 | 64 |
| DW31-25/4 | 25 | 4 | 64 |
| DW31-25/5 | 25 | 5 | 48 |
| DW31-32/1 | 32 | 1 | 72 |
| DW31-32/2 | 32 | 2 | 72 |
| DW31-32/3 | 32 | 3 | 64 |
| DW31-32/4 | 32 | 4 | 48 |
| DW31-32/5 | 32 | 5 | 48 |
| DW31-50/1 | 50 | 1 | 30 |
| DW31-50/2 | 50 | 2 | 30 |
| DW31-50/3 | 50 | 3 | 30 |
| DW31-50/4 | 50 | 4 | 30 |
| DW31-50/5 | 50 | 5 | 30 |
| DW31-75/1 | 75 | 1 | 30 |
| DW31-75/2 | 75 | 2 | 30 |
| DW31-75/3 | 75 | 3 | 30 |
| DW31-75/4 | 75 | 4 | 30 |
| DW31-75/5 | 75 | 5 | 30 |

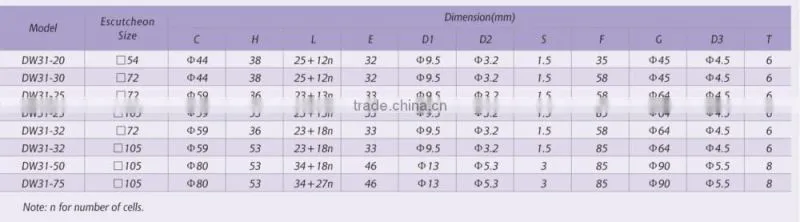

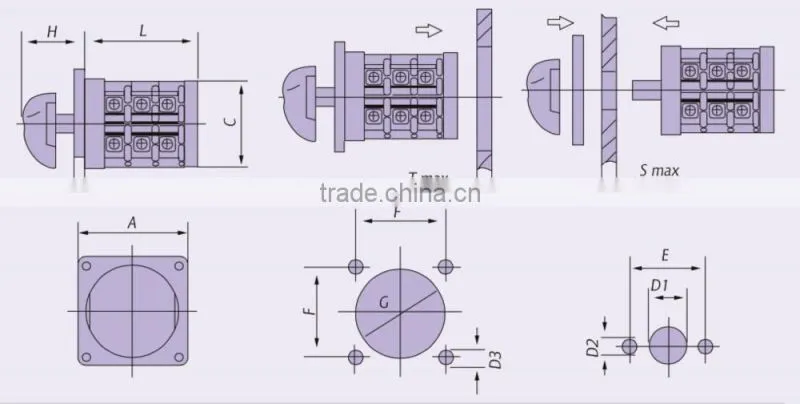

Dimension
