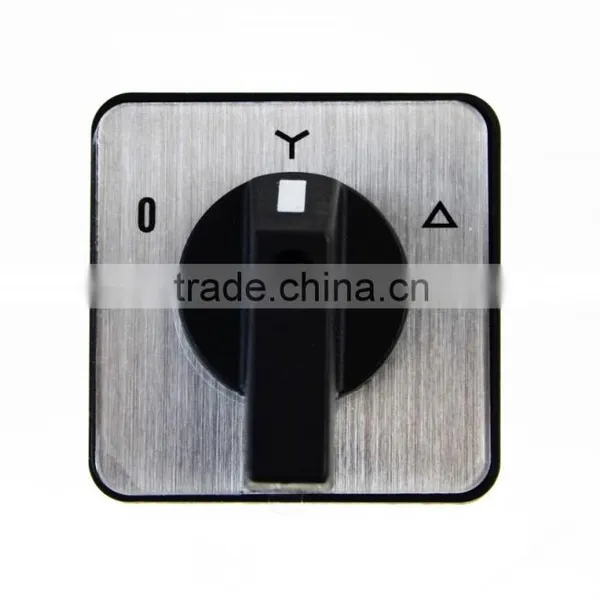

160A 4-CELL 3POS Star Delta Starter (Star Delta Cam Switch)
Model: DW26-160/4+SD001
The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switch are suitable for AC as well as DC application used for virtually all purposes, such as motor control, panel meter switching, control and distribution panel, etc.

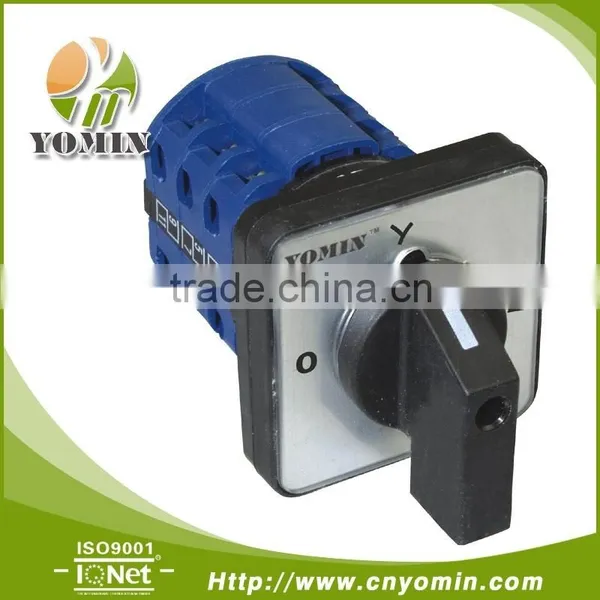

Construction Demo:
Star Delta Starter (Star Delta Cam switch) directly operate the star delta of motor with AC3 or AC4 duty rating.
Below is DW26 series overall specifications.
- Max. Current...................................................160A
- No. of Cells.....................................................4-Cell
- Function..........................................................Star Delta Selectivity
- No. of Switch Positions.................................3POS.
- Max. Voltage....................................................690V AC
- Frequency........................................................50/60Hz
- Operation Series.............................................Rotary Cam
- IP / NEMA Rating.............................................IP20
- Working Temperature....................................-25°C~+40°C
- Altitude............................................................≤2,000m
Relative Humidity............................................≤50% @ Max. +40°C, (NOTE: allow higher humidity with low temperature less than 40°C eg.:humidity 90% @ 20°C)
- Customized Escutcheon................................Provided
- Standards........................................................IEC60947-3, EN60947-3, VDE0660 part 107, IEC60204, VDE0113,
- Mechanical Life...............................................100,000times
- Electrical Life...................................................30,000times
- Operative Frequency......................................120times per hour.
- Pollution Rating..............................................Class III
- Installation.......................................................Panel Mounting.
- Sample Service...............................................Pay to provide
- Quality Assurance..........................................24 months
- Item Condition................................................Brand-New

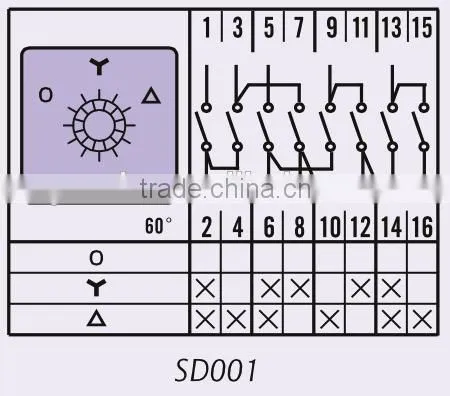

| Item | Rated Thermal Current | No. of Cells | Programme Code |
| Model | (A) | ||
| DW26 | 10, 20, 25, 32, 63, 125, 160 |
4 | +SD001 |
Note:
Please mention the Programme Code when ordering.
