Specifications
1. Max test force: 1000KN;2. Accuracy class:0.5 class;
3.Tensile,compression, bending
4.ISO75001,ASTM E4

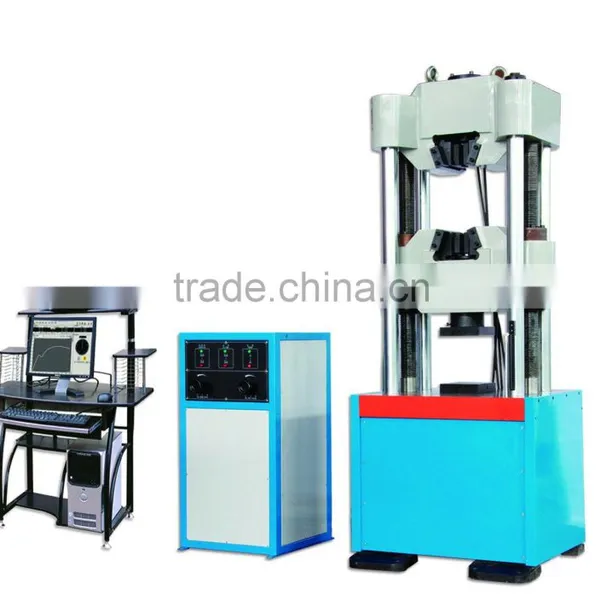

WEW Hydraulic Universal Testing machine 1000KN Hydraulic Tensile Testing MachineTensile strength testing machin
1. Introduction
This series machines are mainly designed for tension, compression, bending and shearing test of metal materials and meet with the requirements of GB/T228. This machine is also used for compression and bending test of nonmetal materials, such as cement, concrete and so on. Equipped with special auxiliaries, it can be used for mechanical property testing of fastener, wire rope and components.
2. Product features
2. It has compact structure and a rational layout, significantly reduces the overall height comparing the oil cylinder overhead. The machine owns hydraulic pressure sensor, which is with strong impact and longlife. Adjust the test space by turbine structure of mobile beam does not need rotation of screw when adjusting test space compacting the transmitting of chain. It makes complete separation between transmitting and positioning system, ensures the up and down jaws coaxial and the mainframe durable. Unique structure of screw gap eliminating can guarantee the continuity of the load test.
2.2 Independent hydraulic clamping structure can guarantee the reliability of the system; it will not hurt person for falling and ensure the safety of test personnel.
2.3 Limit mechanical and electrical protection system which is durable protection, can ensure the security of using.
3. Technical specification
Type Parameters | WEW-1000 | WE-W1000B | |
Force Accuracy | ±1% | ||
Measuring range of force (kN) | 20-1000 | ||
Subsection of force | 1,2, 5, 10 | ||
Accuracy of distortion | ±0.5%F.S | ||
Thickness of flat specimen (mm) | 0-40 | ||
Width of flat specimen (mm) | 120 | 80 | |
Testing space(mm) | tension | 650 | 620 |
| compression | 600 | 580 |
Clamping diameter of round specimen (mm) | φ13-φ60 | ||
Platen size(mm) | 210×210 | 205×205 | |
Distance of bending by pass roll(mm) | 30-800 | 100-500 | |
Maximum piston stroke(mm) | 250 | ||
Power supply | 380V±10%,50Hz | ||
Working environment | 10°C~30°C, relative humidity≤80% | ||
Overall dimension (L×W×H)(mm) | Host machine | 1070×850×2530 | |
| B type host machine | 980×650×2220 | |
| HPS | 1070×810×1730 | |
Weight(kg) | 4100 | 3300 | |
