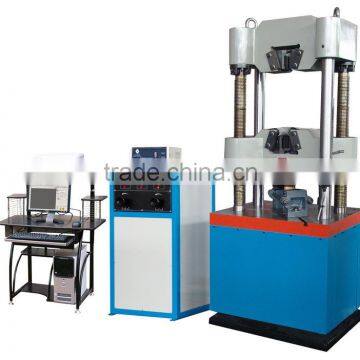

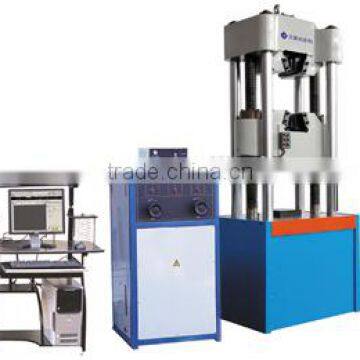

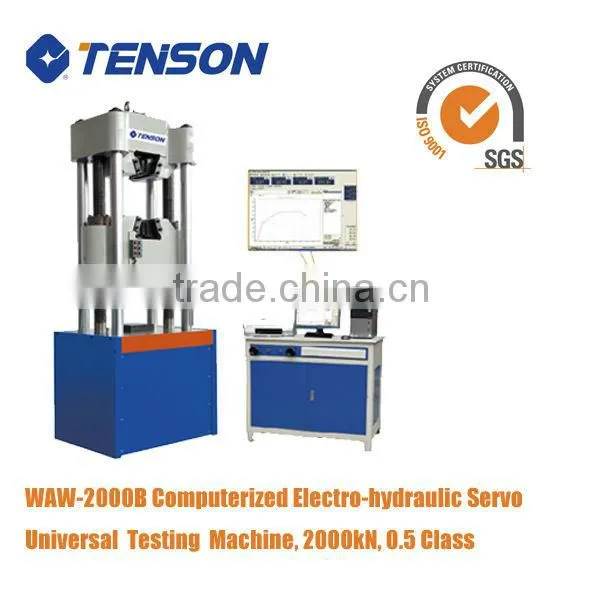

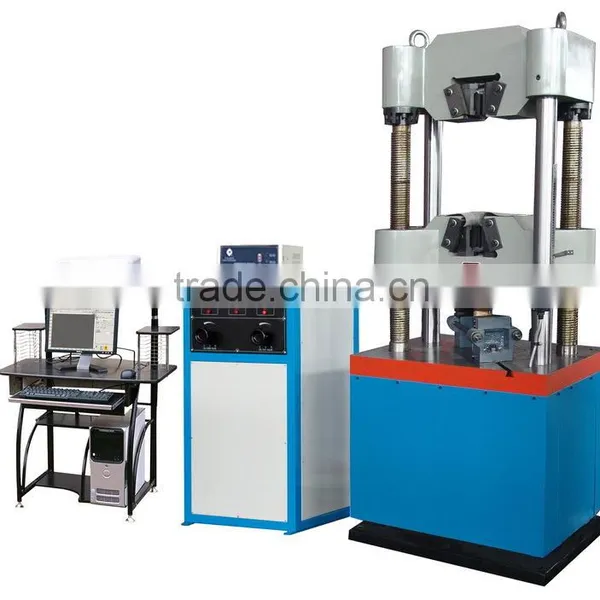

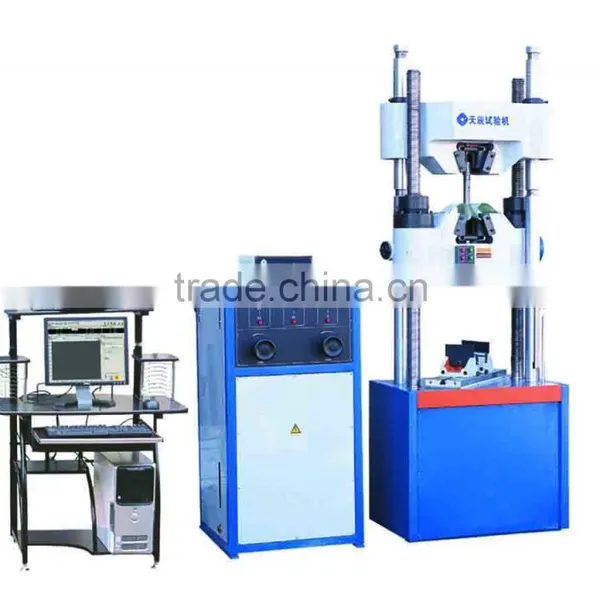

Help CenterWAW Computerized Electro-hydraulic Servo Universal Testing Machine
Related Products
-
UTM for Wire Rope Chain Sling ConductorUS$ 50,000 - 100,000MOQ: 1 Set -
Horizontal Testing Machine for Wire Rope Chain Sling ConductorUS$ 50,000 - 100,000MOQ: 1 Set
-
Horizontal Bench for Wire Rope Chain Sling ConductorUS$ 50,000 - 100,000MOQ: 1 Set
-
Hydraulic Type UTMUS$ 25,000 - 45,000MOQ: 1 Set
-
Universal Testing Machine-Patent ProductUS$ 25,000 - 45,000MOQ: 1 Set
Specifications
1.New product, new paten2.2000KN load capacity
3.ISO7500-1, ASTM E4
4.Tensile, compression,bending test
WAW Microcomputer Controlled Electro-hydraulic Servo Universal Testing Machine experiment
Main features of universal testing machine
1, Automatic control, measurement, data acquisition and processing, drawing and printing test curve (which parts can be zoomed in or out ) and test reports;
2, Monitoring system being calibrated and turned to zero automatically;
3, Testing force, deformation and displacement are controlled by speed,and the controlling error is less than ± 1% of settings;
4, Stepless speed regulation, control speed and control way can be converted randomly in the testing and also can be keeped;
5, Data storage and amplification of curve. In testing ,it can be arbitrary show different test curve;
6,In programme process, it can be converted to manual control ,adjust manually and control speed at any moment.
7, Automatic protection if testing force overloading; the scope of protection can be arbitrary setted,such as can be setted to 5% or 10% of the max testing force;
8, It can be conducted on network between testing labs and convenient for management.
Parameters of universal testing machine
Max load KN |
2000 |
Test force measuring range KN |
50~2000 |
Test Force showed the relative error |
≤indicating value±1% |
Test Force Resolution |
0.01kN |
Max tensile test space mm |
750 |
Max compression space mm |
380 |
Piston stroke mm |
150 |
Diameter of round specimen clamp jaw mm |
Φ13-Φ40 |
Thickness of flat specimen clamping jaws mm |
0-15 |
Maximum clamping width of the flat specimen mm |
75 |
Platen size mm |
φ160mm |
The maximum distance between two points bending test mm |
450 |
Bending branch roll width mm |
140 |
Bending branch roll diameter mm |
Φ40 |
Piston move maximum speed mm/min |
50 |
Clamping method |
Hydraulic clamping |
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer's company when you need.
Any questions,please feel free to contact us.
Contact person:Lilian Tan
Tel:0086 15105412106
Skype:lilian03102
Trademanager:cn1510404667
