FUTV4314A HDMI/SDI 4CH in 1 MPEG-4 AVC/H.264 HD Encoder
(SDI,CVBS,YPbPr,HDMI,2×XLR,2×RCA,AES,ASI in; 2×ASI,IP-MPTS,IP-SPTS out ) with MUX
R: V20150515-09-30
Input:ASI, CVBS, YPbPr, SDI, HDMI, RCA, XLR, AES
Output:IP-MPTS, IP-SPTS, ASI
Inner Function:Multiplexer
Power:
Outline
FUTV4314A-HDMI 4 in 1 MPEG-4 AVC/H.264 HD Encoder is a professional HD audio & video encoding and multiplexing device with powerful functionality. It has 4 channels HDMI (or SDI) input interfaces, supporting MPEG4 AVC/H.264 High Profile code format. This device can simultaneously encode 4 channel HD programs; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded program to generate ASI and IP output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems.
Features
- Support AVC/H.264 High Profile Level 4.0 video encoding , Advanced video pretreatment algorithm
- Support MPEG1 Layer 2, HE-AAC (V2), LC-AAC audio encoding
- 4 channel HDMI (or SDI) inputs and 1 ASI input with Mux
- Support PSI/SI editing and inserting
- Support VBR or VBR video bitrate mode
- Support 720P, 1080I, 1080P HD video format
- Support ASI output MPTS or 4 SPTS
- Support IP output (UDP) MPTS and 4 channel SPTS, unicast/multicast
- Support IP null packet filter
- Support PID filter and transparent transport.
- Real- time effective output bit-rate monitoring
- Support update device through NMS port
- Support LCD / keyboard operating, and network management (SNMP)

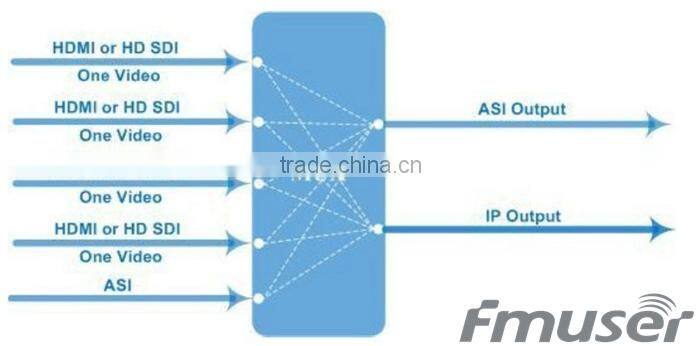

Principle Chart
Specifications
Input |
4x SDI input |
FUTV4314A-SDI |
4x HDMI input |
FUTV4314A-HDMI |
|
1×ASI input, BNC interface | ||
Video |
Resolution |
1920*1080_59.94P, 1920*1080_50P |
1920×1080_59.94i, 1920×1080_50i | ||
1280×720_59.94p, 1280×720_50p | ||
720x576_50i, 720x480_59.94i | ||
Encoding |
MPEG4 AVC/H.264 High Profile Level 4.0 |
|
Bit-rate |
0.8Mbps~19Mbps (each channel) |
|
Rate Control |
CBR, VBR |
|
GOP Structure |
IBBP |
|
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
|
Audio |
Encoding |
MPEG-1 Layer II, HE-AAC(V2), LC-AAC |
Sampling rate |
48KHz |
|
Resolution |
24-bit |
|
Bit-rate |
64Kb/s~384Kb/s each channel |
|
Multiplexing |
1×ASI input multiplexed and 4 encoding channel SPTS |
|
output |
2×ASI outputs, BNC interface |
|
MPTS and 4 SPTS over UDP,10/100Base-T Ethernet interface, support unicast / multicast | ||
System |
LCD/keyboard operating, net manager (SNMP)
Chinese-English control interface
|
|
Ethernet software upgrade | ||
General |
Dimensions (W×D×H) |
440mm×410mm×44.5mm |
Approx weight |
4Kg |
|
Temperature range |
0~45℃(work), -20~80℃(Storage) |
|
Power Requirements |
AC 110V±10%, 50/60Hz;
AC 220V±10%, 50/60Hz
|
|
Power consumption |
25W |
|

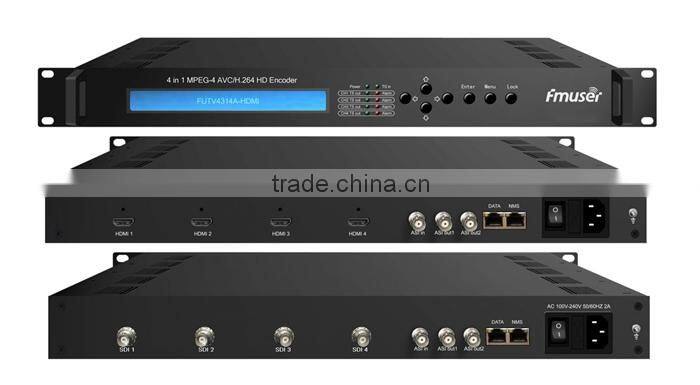

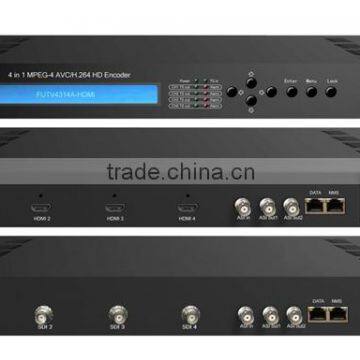

Appearance and Illustration
Front Panel Illustration:
1 |
LCD Screen |
|
2 |
Indicators |
Power Indicator |
TS In: Input Lock Indicator | ||
CH1 TS out – CH4 TS out: device starts to encode and output TS | ||
CH1 Alarm – CH4 Alarm: device stops encoding or encoding error | ||
3 |
UP/ DOWN, LEFT/RIGHT Keys |
|
4 |
Enter Key |
|
5 |
Menu Key |
|
6 |
Lock Key |
|
Rear Panel Illustration (FUTV4314A-HDMI):
1 |
4 * HDMI Input Ports-- FUTV4314A-HDMI |
4 * SDI Input Ports-- FUTV4314A-SDI | |
2 |
ASI Input Port |
3 |
2 * ASI Output Ports |
4 |
Data Port (for IP Signal Output) |
5 |
NMS (Network Management Port) |
6 |
Power Switch and socket |
7 |
Grounding Pole |

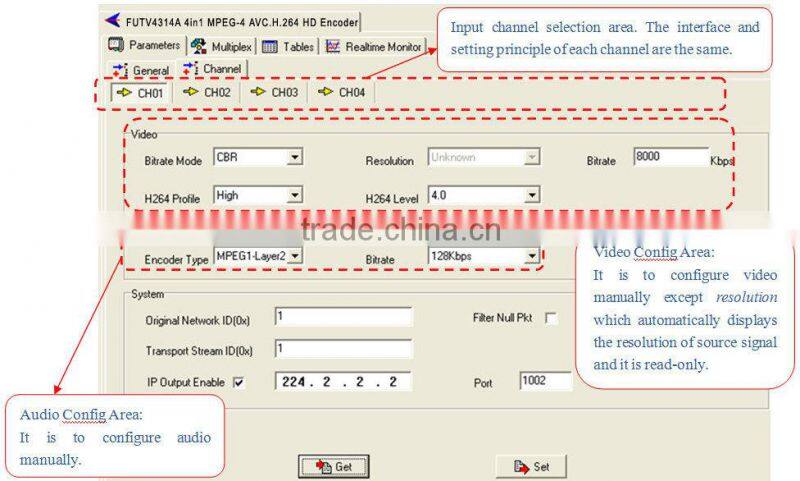

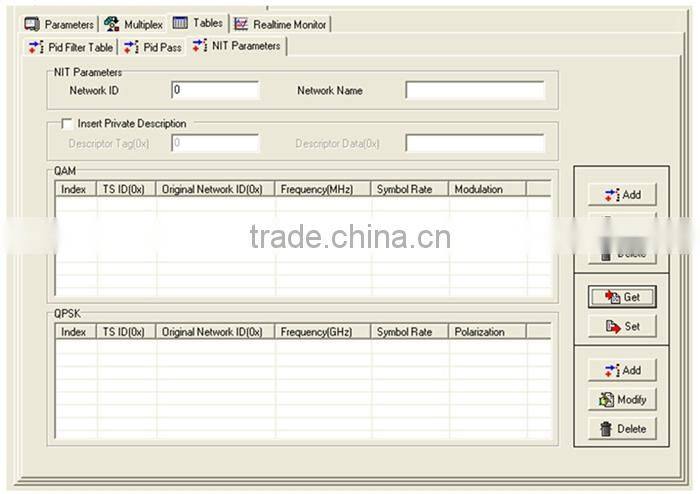

Network Management System
SNMP Network management system is applied to digital TV equipment operation, control and management and parameters setting, etc. It centralizes digital TV equipment through network.
Packing List
FUTV4314A 4 in 1 MPEG-4 AVC/H.264 HD Encoder 1pc
User manual 1pc
HDMI cable(FUTV4314A-HDMI) 4pcs
SDI cable(FUTV4314A-SDI) 4pc
ASI cable 1pc
Power cord 1pc
