FUTV4318A HDMI/SDI 8CH in 1 MPEG-4 AVC/H.264 HD Encoder
- 1000 Set / Sets per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- In stock PJ-208B earphone audio socket 4-pin 2.5 plug earphone socket plastic plug
- In stock PJ-208A earphone audio socket 4-pin 2.5 plug-in anti wolf alarm plug
- simar popular 22/24 inch self-reversing monitor tempered glass mirror presidential conference meeting speech teleprompter
- simar Best selling 20/22/24/27/32 inch self-reversing flip monitor M-ZYS20/22/24/27/32 teleprompter
- 17/20/22/24/27/32 inch Broadcasting studio prompter teleprompter for recording
- NIORFNIO T50M 50W FM transmitter, high-power USB playback farm application 5-kilometer range
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FMUSER | Model Number: | FUTV4318A |
Product Description
Please contact the following staff for instant help with product user manual, datasheet and updated wholesale price.
Email: hch(at)
Skype: erin-huang2
Wechat: +86 15800205544
Whatsapp: +86 15800205544
Tel:+86 15800205544 (Monday~Friday: 9:00 ~ 18:00 (+8 China ) )
Working Time
09:00--18:00 Beijing
17:00--2:00 San Francisco
19:00--4:00 New York
21:00--6:00 Paris
04:00--13:00 Moscow
12:00--21:00 Sydney
02:00--11:00am Congo ( Africa )
FUTV4318A HDMI/SDI 8CH in 1 MPEG-4 AVC/H.264 HD Encoder (8xHDMI,ASI in; 2xASI,IP-MPTS,IP-SPTS out) with MUX
R: V20150515-15-35Data sheet User Manual
Input:ASI, SDI, HDMI Output:IP-MPTS, IP-SPTS, ASI Inner Function:Multiplexer Power:
Overview
The FMUSER FUTV4318A-HDMI 8 in 1 MPEG-4 AVC/H.264 HD Encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI (or SDI) channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format, and also 1 ASI input for re-mux. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
* Support 8 HDMI/SDI channels input & 1 ASI Input
* Support H.264/AVC video encoding
* Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding
* Support PSI/SI editing and inserting
* Support VBR/CBR video bitrate mode
* Support 720P, 1080I, 1080P HD video format
* Support ASI output MPTS or 8 SPTS
* Support IP Output MPTS and 8 SPTS
* Support IP null packet filter
* Real-time output bit-rate monitoring
* Update device through NMS port
* Support LCD / keyboard operating, and network management (SNMP/Web)

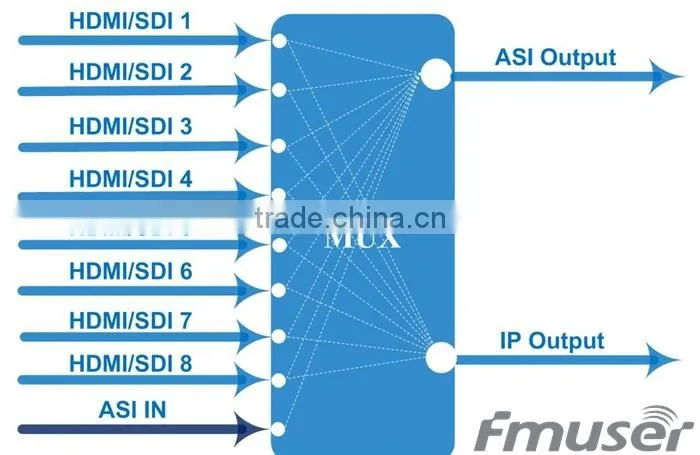

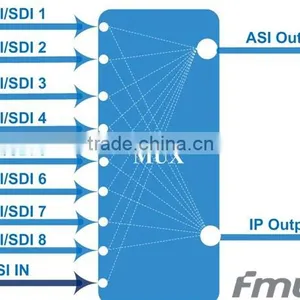

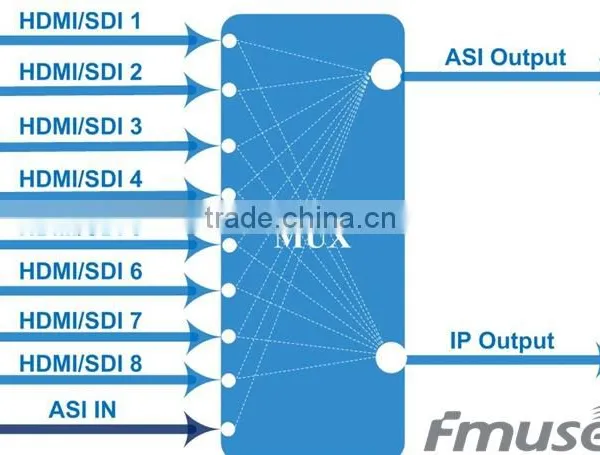

Principle Chart
Specifications
Input | 8xHDMI (or SDI) inputs | |
1 ASI input, BNC interface | ||
Video | Resolution | 1920x1080_60P, 1920x1080_50P |
1920x1080_60i, 1920x1080_50i | ||
1280x720_60P, 1280x720 _50P | ||
720x576_50i, 720x480_60i | ||
Encoding | MPEG-4 AVC/H.264 | |
Bit-rate | 0.8Mbps~19Mbps (each channel) | |
Rate Control | CBR/VBR | |
GOP Structure | IBBP | |
Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | |
Audio | Encoding | MPEG-1 Layer 2 (HE-AAC V2, LC- AAC Option) |
Sampling rate | 48KHz | |
24-bit | Resolution | |
Bit-rate | 64Kbps~384Kbps each channel | |
Multiplexing | 1 ASI input multiplexed with local 8 channels of TS | |
Stream output | 2*ASI output, BNC interface | |
MPTS and 8 SPTS over UDP/RTP, 1000 Base-T Ethernet interface (unicast / multicast); | ||
System function | LCD/keyboard operating, net manager (SNMP/Web) | |
Chinese-English control interface | ||
Ethernet software & hardware upgrade | ||
Miscellaneous | Dimension (W x L x H) | 440mmx410mmx44.5mm |
Approx weight | 4kg | |
Temperature | 0~45C(work), -20~80C(Storage) | |
Power | AC 100V-220V+/-10%, 50/60Hz | |
Consumption | 25W |

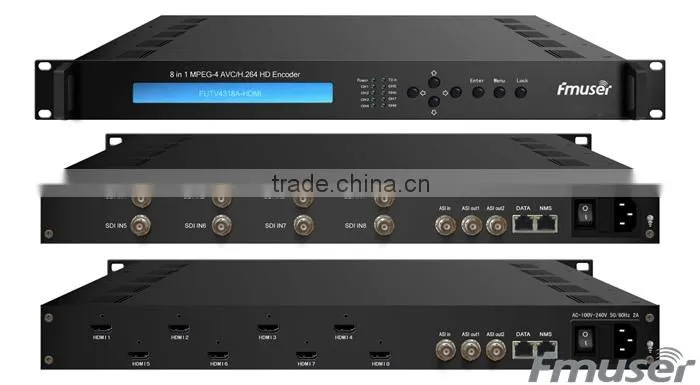

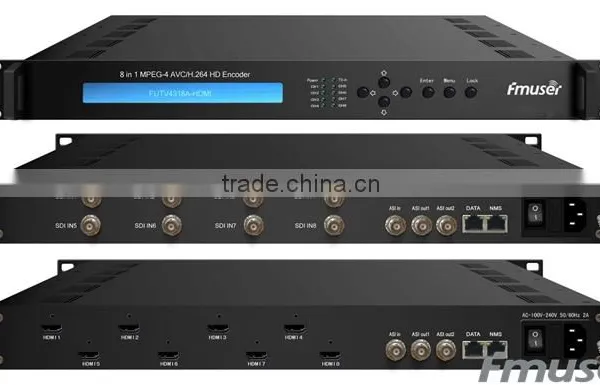

Appearance and Illustration
Front Panel Illustration:
1. LCD Screen
2. Indicators: Power Indicator
TS In: Input Lock Indicator
CH1-CH8: When the program has been multiplexed, the indicator will be on.
3. UP/ DOWN, LEFT/RIGHT Keys
4. Enter Key
5. Menu Key
6. Lock Key
Rear Panel Illustration:
1. 8 * HDMI Input Ports
2. ASI Input Port
3. 2 * ASI Output Ports
4. Data Port (for IP Signal Output)
5. NMS (Network Management Port)
6. Power Switch and socket
7. Grounding Pole

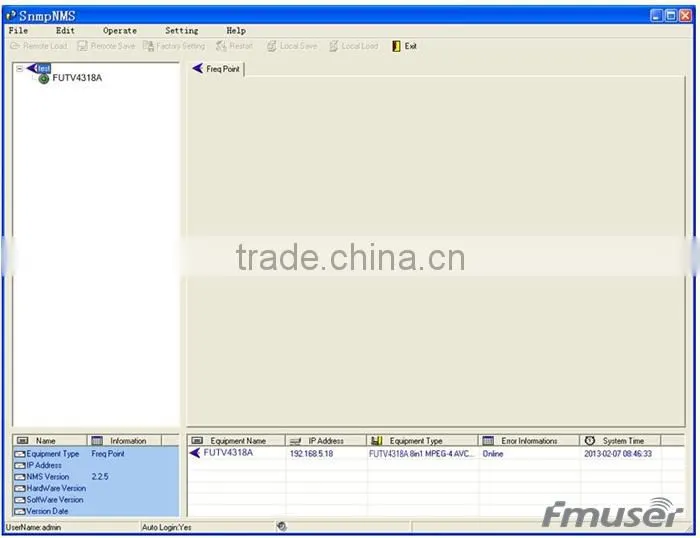

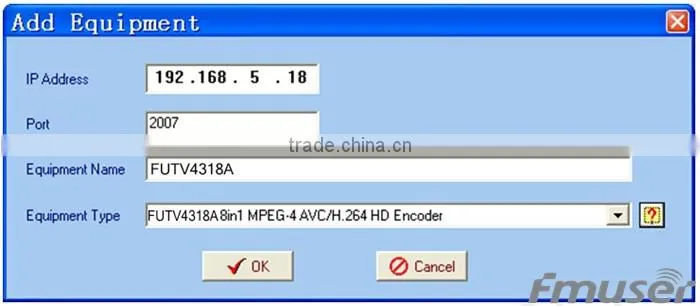

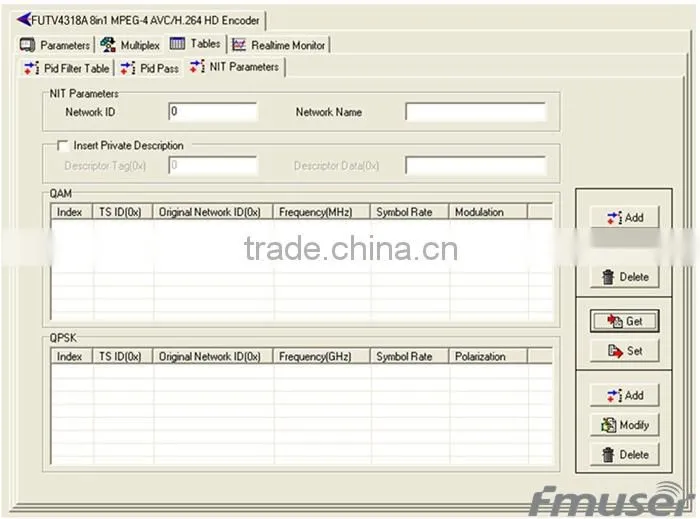

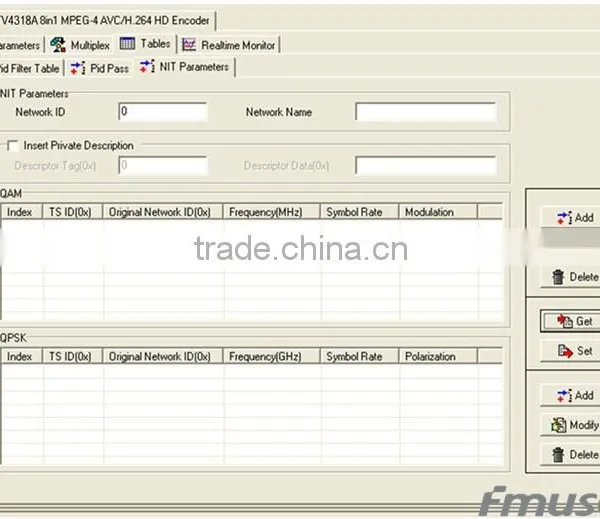

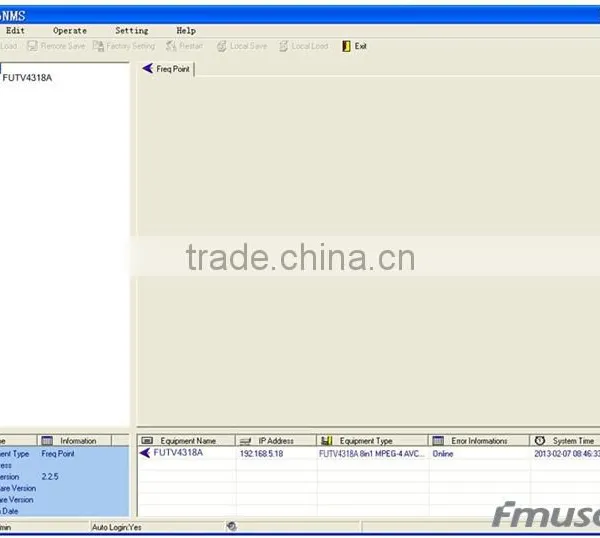

Network Management System
SNMP Network management system is applied to digital TV equipment operation, control and management and parameters setting, etc. It centralizes digital TV equipment through network.
Packing List
1pc * FUTV4318A 8 in 1 MPEG-4 AVC/H.264 HD Encoder
1pc * User manual
8pcs * HDMI cable
1pc * ASI cable
1pc * Power cord

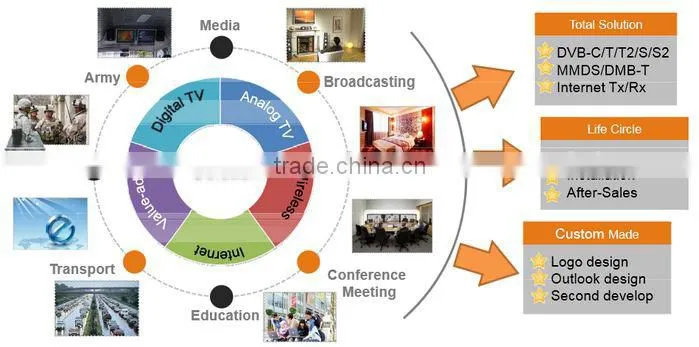

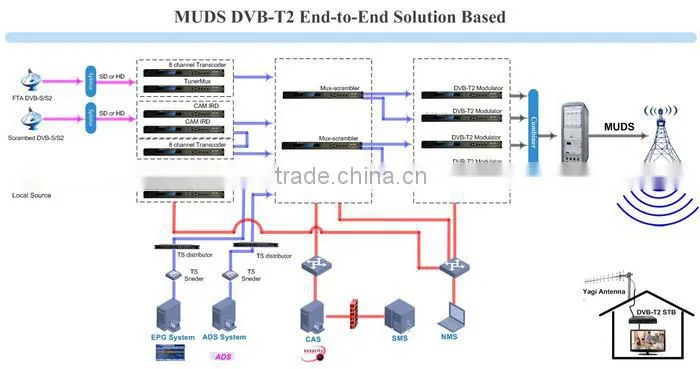

Kindly contact me to send you more solutions for DVB-C, DVB-S, DVB-T, Cable QAM System for Hotel ,Microwave , Radio reporter system...etc
1.FAQ:Where is your company located? How can I visit your company?
A:Our factory is located in Tian He District, Guang Zhou City, China, it's about 25 mins away from Canton Fair Center and 15 mins from Guang Zhou Eastern Station, all our clients, from home or abroad, are warmly welcome to take a visit here!
You can search this numbers " 23.127,113.332 " in google map , then you can find our fmuser office .
2.FAQ:How does your company do regarding quality control?
A:Quality is very important and always the priority of our inspection system. FMUSER team members always pay great attention to quality control from the very beginning to the end.
All machine will be Aging work 40days before shipment.
3.FAQ:Can I get some samples?
A: Yes, sure, we are honored to offer you samples, sample fee can be discussed.
4.FAQ:What is your mode of transportation?
A: We ship via International Express like FedEx, UPS, DHL, TNT, other ways designated by customers are also optional.

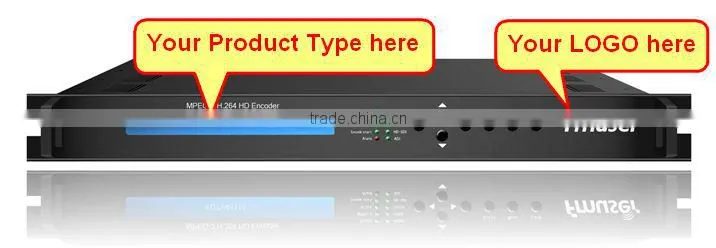

5.FAQ:Could you pls make OEM for us?
A: Surely yes.We provide the service of replacing your logo and company name on box, product and software interface
of the device .
6.FAQ:What's your payment method supported?
A: We accept T/T, Paypal, Western Union, MoneyGram etc.
7.FAQ:What about your warranty?
A: We provide 1 year quality warranty for our main devices, accessories are not within this range, but our accessories are endurable enough to use for long time.
