Help CenterHF25 Metal Tube Float Flow Meter for Flow Level Indicators
Related Products
-
HF25 Metal Tube FlowmeterNegotiableMOQ: 1 Piece -
HF25 Metal Tube FlowmeterNegotiableMOQ: 1 Piece
-
HF25 Metal Tube Flow Meter for Flow Level InstrumentNegotiableMOQ: 1 Piece
-
UB Series Glass Liquid Level Gauge for Depth Water Measure Common High Temperature Pressure Low Temperature Frost ProofNegotiableMOQ: 1 Piece
-
UGS A Glass Tube Level Gauge for Measuring Tool Standard TypeNegotiableMOQ: 1 Piece
Specifications
1. variable area type2. metal float
3. for liquid, gas, steam
4. needle indication
5. without power supply

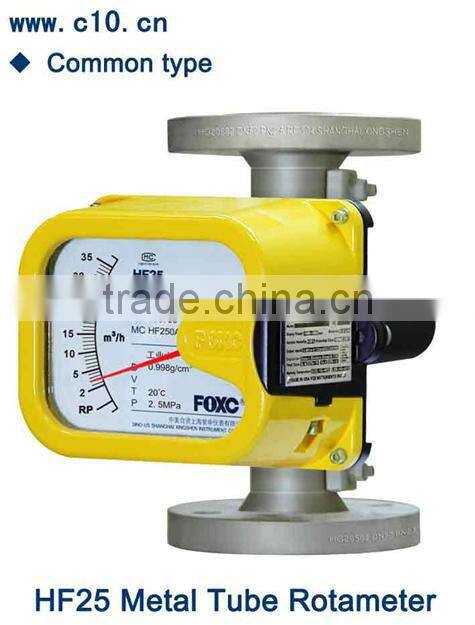

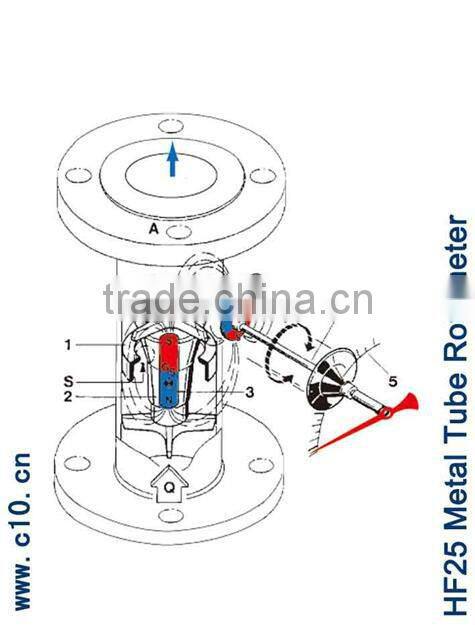

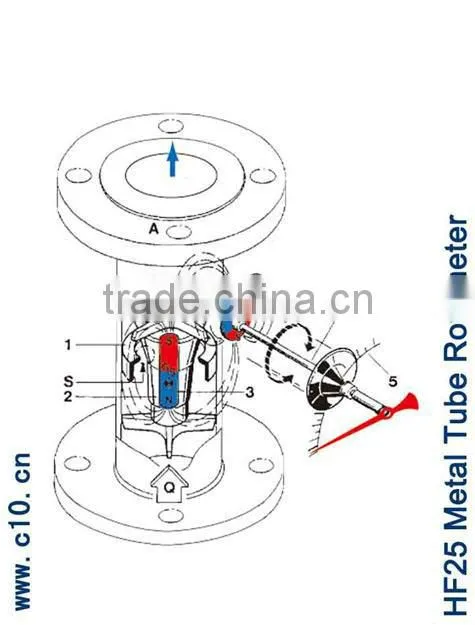

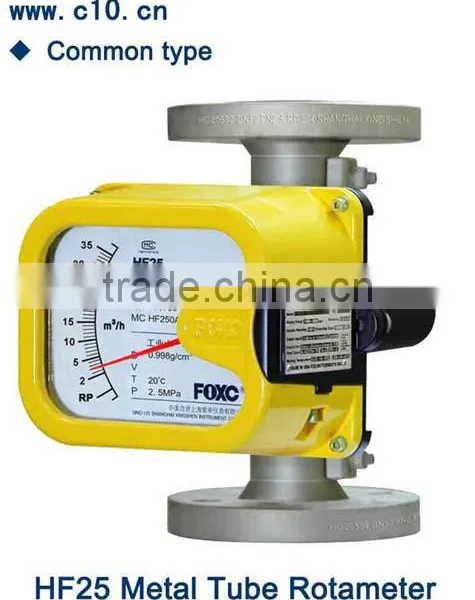

HF25 series Metal Tube Rotameter is a variable area flow meter that can measure liquid, gas or steam even under high pressure 2500LB and high temperature 450 °C ; as its sturdy, safe and endurable features, it is especially suitable for corrosive and cloudy liquid.
FEATURES :

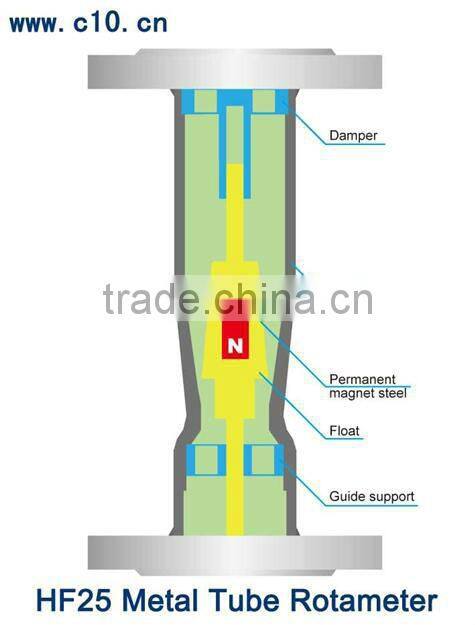

Measure tube
l Firm whole metallic structure
l Optional multi-range material
l Heating jacket design
l High temperature
l With damping device
l Lower pressure loss
l Suitable for extreme condition and corrosive medium
l Good shock resistance & thermal stability
Indicator Part
l Digital and PTR indicator
l Converter with microelectronic processor
and self-checking function
l With explosion proof operation switch,
no need to open cover to make field
configuration and data revision
l 4~20 mA output, HART, lower and upper limit alarm
l Protection class up to IP67
l Ex-proof design
TECHNICAL PARAMETER :
Output signal: two wire 4~20mADC, with HART
Power supply: 24VDC
Power interface: M20×1.5
Flange standard: HG20592-97(M) ANSI B16.5
Nominal pressure: 1.6 2.5 4.0 6.3Mpa
Measure Ratio : 10:1
Accuracy: 1.5%FS (DN15 dia. 2.0%FS)
Medium temperature:-50~100°C(standard) ≤200°C(high temperature) ≤300°C (jacket type)
Damping time: 0~199sec.
Ambient temperature: -35~70°C(LCD) -40~70°C
Measure range: water: 25~100000 L / h (20°C)
air: 0.7~1800 m³/h (0.1013 Mpa, 20°C )
SPECIFICATION LIST :
