UGS A Glass Tube Level Gauge for Measuring Tool Standard Type

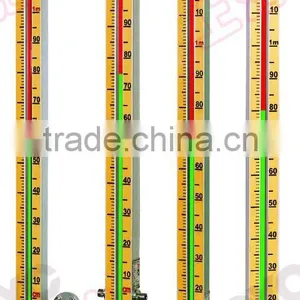

UGS A Glass Tube Level Gauge for Measuring Tool Standard Type thumbnail-1

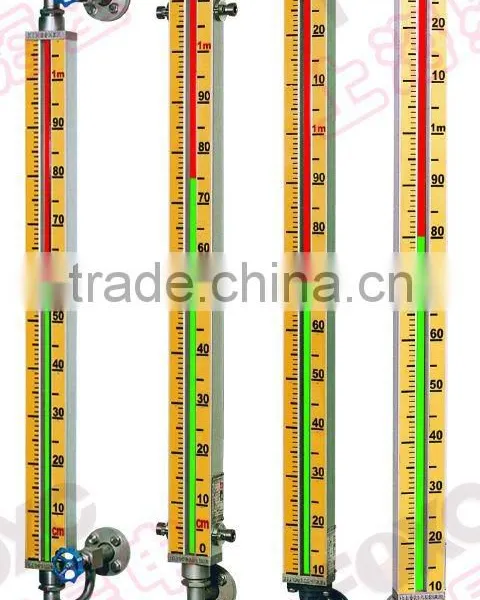

UGS A Glass Tube Level Gauge for Measuring Tool Standard Type photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Xingshen
Model Number:
UGS-A
Contact Supplier Request Quote Chat Now
Shanghai Xingshen Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Xingshen
Model Number UGS-A

Specifications

High purity quartz glass tube/ glass tubular
Clear indication
Good sealing
Red and green indication

UGS color quartz glass liquid level gauge is made of high purity quartz glass tube (99.99%SiO2). Clear in reading, reliable in seal, endurable in lifetime, high temperature and high pressure resistance, viscosity proof, easy cleaning and maintenance, it is widely applied for liquid level measure and indication of vessels and boilers in various fields, such as petroleum, chemical, electric power and metallurgy etc. To measure and indicate colorless transparent liquid level (water, liquid ammonia, white oil, liquid gas, propylene and etc.), this gauge is highly recommended.







UGS

Color Quartz Glass Tube Liquid Level Gauge

Model



A

Standard:no blind area.valve with safety device

Basic
 types

B

common type: with blind area, temperature:-50~450°C

C

anti-corrosion: PP lined stainless steel,temperautre≤80°C

D

anti-corrosion: PTFE lined stainless steel,T≤200°C

G

Large diameter glass level gauge



1

CS

Flange &valve material

2

304S

3

316L



25

Class 150LB ANSI          PN2.5Mpa

Pressure rating

40

Class 300LB ANSI          PN4.0Mpa

64

Class 400LB ANSI          PN6.4Mpa

100

Class 600LB ANSI          PN10.0Mpa



20

DN20

Flange diameter

25

DN25

40

DN40



RF

Raised flange

Flange seal

FF

flat flange



J1

heating jacket

Heat tracing

J4

electric heating



300

300mm

C-C distance

500

500mm

800

800mm

1100

1100mm

1400

1400mm

1700

1700mm

2000

2000mm

2500

2500mm



specified length
