Specifications
1.electronic universal testing machine price2.Tensile, compression grips and three-point bending grip
3.floor type
4.CE SGS

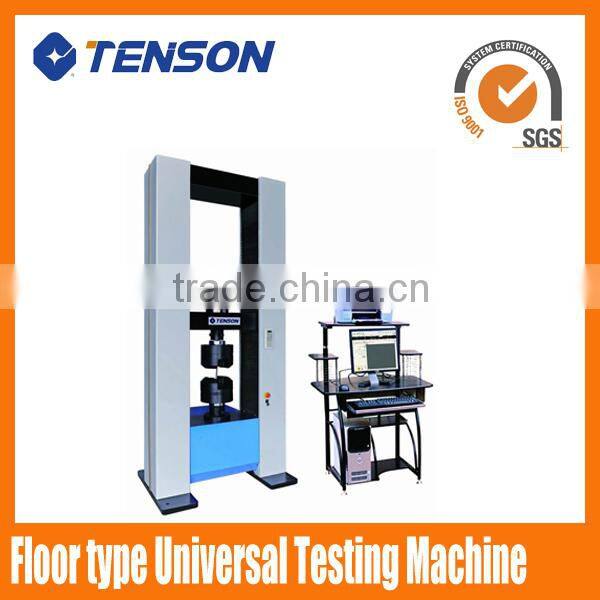

Hot selling electronic Price universal testing machine Plastic laboratory equipment/textile lab equipment
1. Introduction of Electronic Universal Testing Machine
WDW-300T Series Computerized Electronic Universal Testing Machines are applicable for tensile, compression, bending test of metal materials and non-metal materials. It has 50kN, 100kN, 200kN, 300kN and 600kN load capacity.
The machine is calibrated according to ASTM E4 and ISO75001 international standard.
It meet with the requirements of GB, ISO, JIS, DIN and ASTM, etc.
They are essential testing instrument for quality testing section, university and colleges, research institution and industrial and mining enterprise.
2.Main Configuration--- Electronic Universal Test machine
1. Imported high precision load cell; (American Celtron)
2. Imported servomotor and servo driver; (Japanese Panasonic)
3. Precise reducer;
4. Precise ball screw shaft;
5. Imported photoelectric encoder; (Japanese OMRON)
6. Single chip controller;
7. Computer (Lenovo), LCD display;
8. Color ink jet printer (HP);
9. High precision data collection board (16 A/D data collection);
10. One set of tension, compression and bending attachment;
11. One set of Electronic Extensometer.
3.Main technical parameters
The accuracy grade of tester |
One grade |
Test force measuring range |
2%-100%FS |
the relative error of test force value |
±1% |
Test force resolution |
1/200000 of largest test force |
Deformation measurement range |
2%-100%FS |
Deformation value relative error |
±1% |
Deformation of the resolution |
1/200000 of largest deformation |
Displacement measurement error |
±1% |
Force adjustment error rate control |
±1% of setting value |
Deformation rate adjustment error |
±1% of setting value |
Beam speed adjusting range(mm/min) |
1. 1-500 |
The relative error of beam speed |
±1% of setting value |
|
The control error of constant force, deformation and displacement |
A) Setting value ≥10%FS, under ±0.1% of setting value B) Setting value <10%FS,beyond ±0.1% of setting value |
Available stretch space(mm) |
800 |
Available test width(mm) |
540 |
Power(V) |
220±10% |
Customer visit
Any questions,please feel free to contact us.
