Specifications
wire rope universal tensile test machineFor wire rope,chain,cables and aluminum and copper conductors
Imported ball sensor
1000kN 2000kN 3000kN Wire rope tensile testing machine Chain tensile testing machine Steel wire tensile testing machine
1.Functions & Applications:
This Wire Rope Universal Tensile Test Machine is specially used for tensile, breaking strength, destructive test of steel wire rope, cable. Designed specifically for wire, rope, and cable testing, this series uses a horizontal frame test opening to accommodate long specimens and high elongation demands. This machine adopts steel welded frame structure, and uses single-rod double-acting piston cylinder to provide loading force. cylindrical pin plug to mount specimen, and load cell to measure testing force.These test frames are powered by hydraulics for high strength testing and can be customized in length to meet a variety of application requirements. It can adjust the tensile space according to the length of specimen in test process. The software uses three closed loop servo enables testing at use-defined loading rates.
2. Main Technical Specification:
Model |
WLW-600 |
WLW-1000 |
WLW-2000 |
WLW-3000 |
|
Max Load Capacity |
600KN |
1000KN |
2000KN |
3000KN |
|
Range of Testing Force |
4%-100% |
||||
Accuracy of Testing Force |
±1% |
||||
Relative error of displacement |
±1% |
||||
Stress speed |
1-45Mpa/s |
||||
Precision of constant stress |
±1% |
||||
Stretching distance |
0-10000mm |
||||
Piston stroke |
500mm or customized |
||||
Method of Specimen Clamping |
Bolt way,specially according to the specimen that customer provide. |
||||
Control mode |
Computer controlled or hand valve control |
||||
Effective testing space |
Width 750mm or customized |
||||
Fixed-way of moving beam |
Manual bolt fixed or hydraulic automatic bolt fixed |
||||
Power supply |
220V/380V, 50Hz |
||||

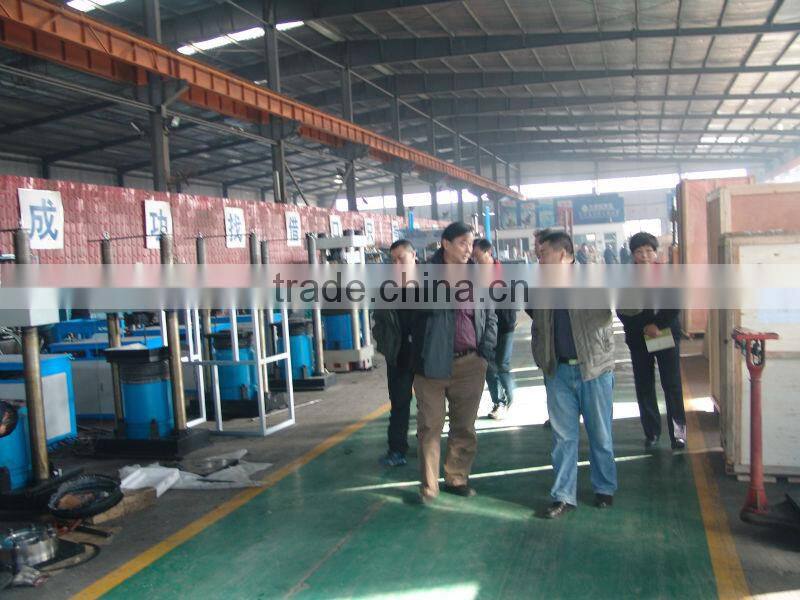

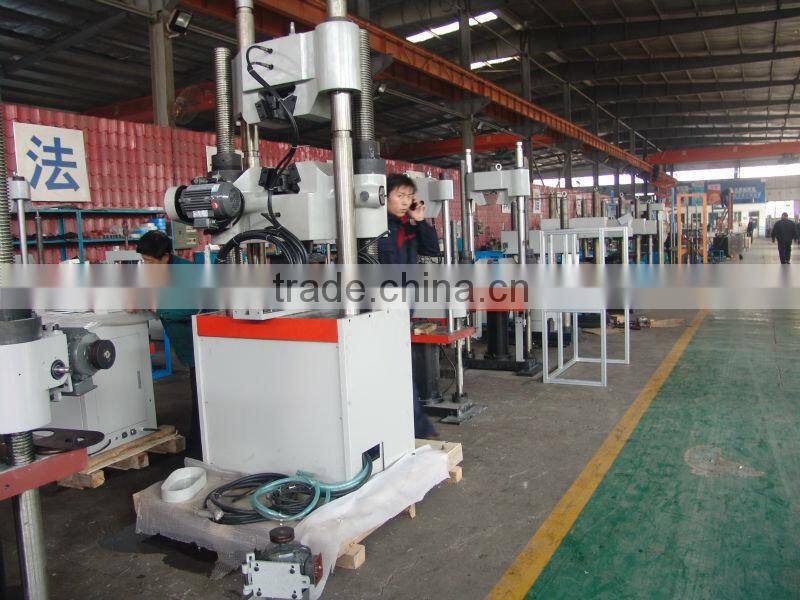

3.Our factory
Any questions,please feel free to contact us.
Contact person:Lilian Tan
Tel:0086 15105412106
Skype:lilian03102
Trademanager:cn1510404667
Website: www.tianchentest .com
