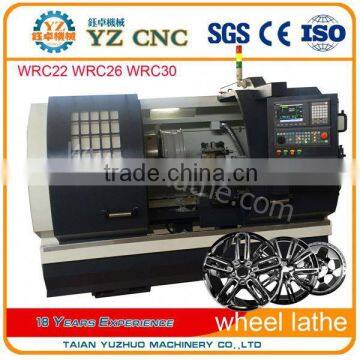

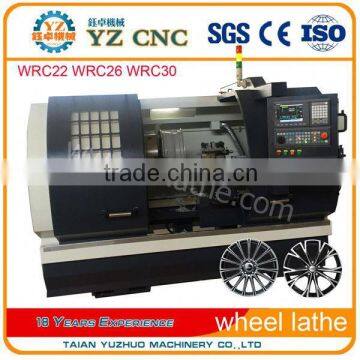

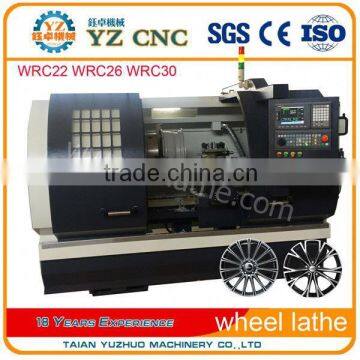

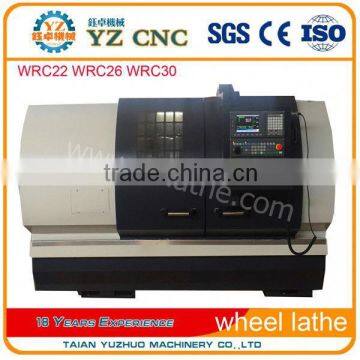

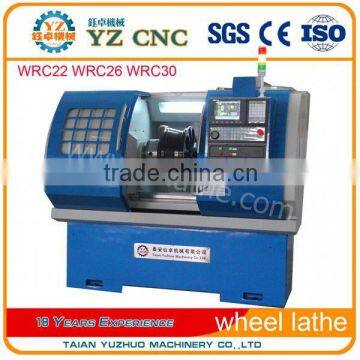

Hot New Products For 2016 Alloy wheel repair CNC Lathe
1-3-Jaws Chuck(With Special Soft Jaws)
2-Manual Quick Change Toolpost ,four-station turret,
3-Automatic lubrication system,
4-Turning the cooling system.
5-With probing system
6-Diamond Cutter 1 set
7-cnc controller syntec
8-Full Enclose(Security Guard Door)
9-Specific Digital Optimization Software
10-Training Video CD
11-Work Lighting System
Alloy wheel repair cnc lathe |
WRC22 |
WRC26 |
WRC30 |
||
Max. swig over bed (mm) |
Φ630(25’) |
Φ725(28’) |
Φ775(30’) |
||
Max. swig over cross slide (mm) |
Φ410 |
Φ540 |
Φ550 |
||
Max. Size of alloy wheel |
22’ |
26’ |
28’ |
||
Cross slide travel (mm) |
330 |
350 |
360 |
||
Width of the rail |
265 |
330 |
400 |
||
Length of the rail |
1180 |
1320 |
1630 |
||
Size of the three-jaw chuck |
10’ |
12’ |
15’ |
||
Range of spindle speed (RPM) |
50~2500 |
50~2000 |
50~1800 |
||
Spindle speed control |
Automatic |
Automatic |
Automatic |
||
Spindle bore (mm) |
Φ60 |
Φ60 |
Φ82 |
||
Taper of spindle bore |
MT6 |
MT6 |
1:20/ Φ 90 |
||
Taper of spindle nose |
A2-6 |
A2-6 |
D1-8 |
||
Max. size of tool post |
25×25mm |
25×25mm |
25×25mm |
||
Stations of tool carrier |
4 position |
4 position |
4 position |
||
Min. setting unit of motor |
(Z) long 0.001mm, (X) cross 0.001mm |
||||
Moving speed of post |
(Z) long 8m/min, (X) cross 4m/min |
||||
Motor power |
5.5KW |
7.5KW |
7.5KW |
||
Machine base |
Whole cast iron base |
||||
Machine size(L×W×H) (mm³) |
2100 ×1700×1900 |
2300×1750×1950 |
2690×1850×2010 |
||
Net weight |
1950kgs |
2600kgs |
3000kgs |
||
ITEMS |
WRC28 |
WRC32 |
|
Max. swig over bed (mm)(inch) |
Φ770 (30’) |
Φ880(34’) |
|
Max. Size of alloy wheel (inch) |
Φ720 (28’) |
Φ820(32’) |
|
Adjustable stroke of carrier in X direction |
100mm |
100mm |
|
Cross slide travel (mm) |
390 |
450 |
|
Width of the rail (mm) |
300 |
400 |
|
Length of the rail (mm) |
1300 |
1650 |
|
Size of the three-jaw chuck (inch) |
12’ |
16’ |
|
Range of spindle speed (RPM) |
50~2000 |
50~1800 |
|
Spindle speed control |
Automatic |
Automatic |
|
Spindle bore (mm) |
Φ82 |
Φ82 |
|
Taper of spindle bore |
1:20(Φ90) |
1:20(Φ90) |
|
Max. size of tool post |
25×25mm |
25×25mm |
|
Stations of tool carrier |
4 position |
4 position |
|
Min. setting unit of motor |
(Z) long 0.001mm, (X) cross 0.001mm |
||
Moving speed of post |
(Z) long 8m/min, (X) cross 6m/min |
||
Motor power |
7.5KW |
7.5KW |
|
Mchine base(cast iron base) |
Whole |
Separate |
|
Machine size |
(L×W×H) (mm³) |
2140 ×1600×1860 |
2970×1660×2080 |
Package size |
|
2300×1750×2100 |
3120×1810×2350 |
