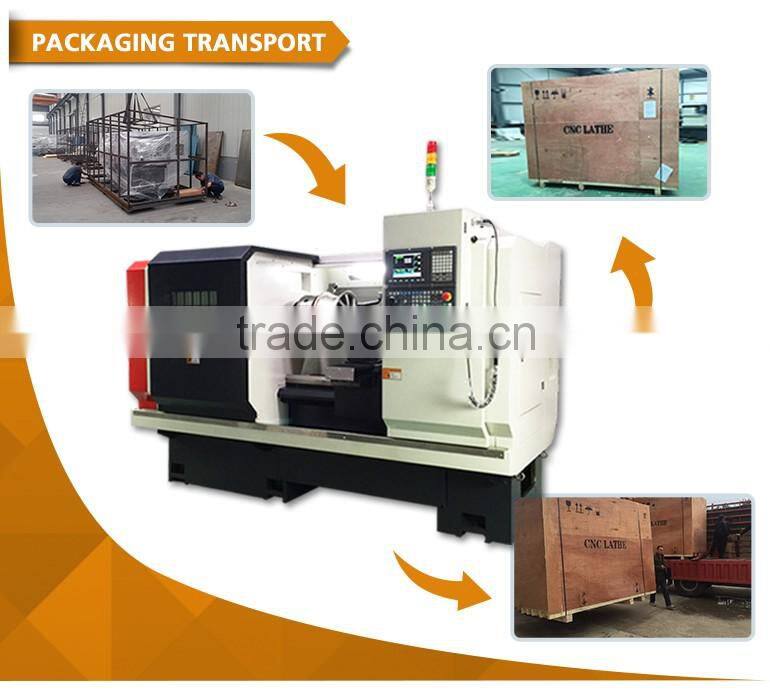

High-Efficiency Energy-Saving Alloy wheel repair rim CNC Lathe
1-3-Jaws Chuck(With Special Soft Jaws)
2-Manual Quick Change Toolpost ,four-station turret,
3-Automatic lubrication system,
4-Turning the cooling system.
5-With probing system
6-Diamond Cutter 1 set
7-cnc controller syntec
8-Full Enclose(Security Guard Door)
9-Specific Digital Optimization Software
10-Training Video CD
11-Work Lighting System

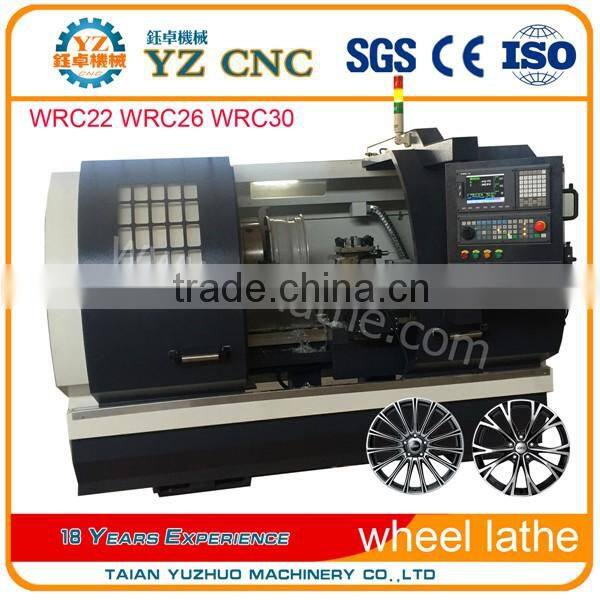

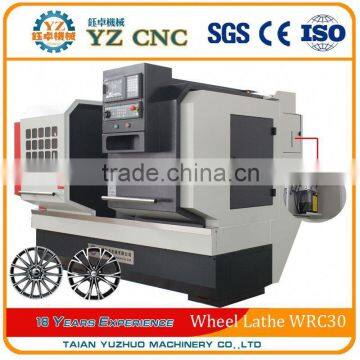

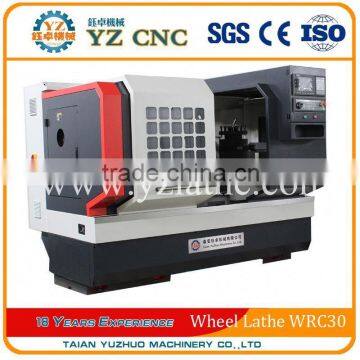

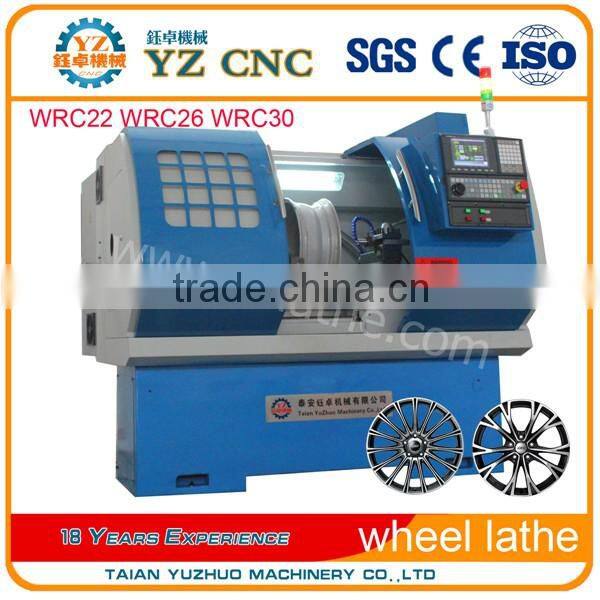

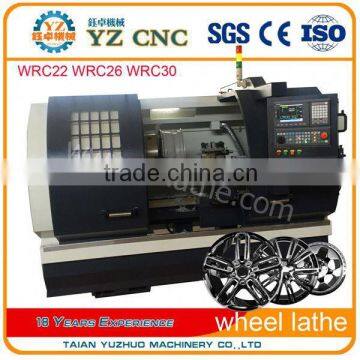

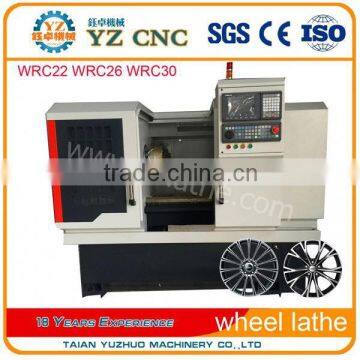

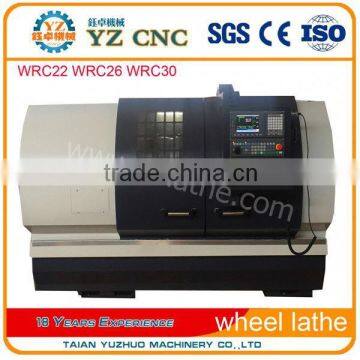

Alloy wheel repair cnc lathe | WRC22 | WRC26 | WRC30 | ||
Max. swig over bed (mm) | Φ630(25’) | Φ725(28’) | Φ775(30’) | ||
Max. swig over cross slide (mm) | Φ410 | Φ540 | Φ550 | ||
Max. Size of alloy wheel | 22’ | 26’ | 28’ | ||
Cross slide travel (mm) | 330 | 350 | 360 | ||
Width of the rail | 265 | 330 | 400 | ||
Length of the rail | 1180 | 1320 | 1630 | ||
Size of the three-jaw chuck | 10’ | 12’ | 15’ | ||
Range of spindle speed (RPM) | 50~2500 | 50~2000 | 50~1800 | ||
Spindle speed control | Automatic | Automatic | Automatic | ||
Spindle bore (mm) | Φ60 | Φ60 | Φ82 | ||
Taper of spindle bore | MT6 | MT6 | 1:20/ Φ 90 | ||
Taper of spindle nose | A2-6 | A2-6 | D1-8 | ||
Max. size of tool post | 25×25mm | 25×25mm | 25×25mm | ||
Stations of tool carrier | 4 position | 4 position | 4 position | ||
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | ||||
Moving speed of post | (Z) long 8m/min, (X) cross 4m/min | ||||
Motor power | 5.5KW | 7.5KW | 7.5KW | ||
Machine base | Whole cast iron base | ||||
Machine size(L×W×H) (mm³) | 2100 ×1700×1900 | 2300×1750×1950 | 2690×1850×2010 | ||
Net weight | 1950kgs | 2600kgs | 3000kgs | ||
ITEMS | WRC28 | WRC32 | |
Max. swig over bed (mm)(inch) | Φ770 (30’) | Φ880(34’) | |
Max. Size of alloy wheel (inch) | Φ720 (28’) | Φ820(32’) | |
Adjustable stroke of carrier in X direction | 100mm | 100mm | |
Cross slide travel (mm) | 390 | 450 | |
Width of the rail (mm) | 300 | 400 | |
Length of the rail (mm) | 1300 | 1650 | |
Size of the three-jaw chuck (inch) | 12’ | 16’ | |
Range of spindle speed (RPM) | 50~2000 | 50~1800 | |
Spindle speed control | Automatic | Automatic | |
Spindle bore (mm) | Φ82 | Φ82 | |
Taper of spindle bore | 1:20(Φ90) | 1:20(Φ90) | |
Max. size of tool post | 25×25mm | 25×25mm | |
Stations of tool carrier | 4 position | 4 position | |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | ||
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | ||
Motor power | 7.5KW | 7.5KW | |
Mchine base(cast iron base) | Whole | Separate | |
Machine size | (L×W×H) (mm³) | 2140 ×1600×1860 | 2970×1660×2080 |
Package size |
| 2300×1750×2100 | 3120×1810×2350 |
