Home > Products > 14. Analogue Panel Meter > Manufacturer DT-A50 CT Operated AC Ammeter ,Analog Panel Meter 50*50 /

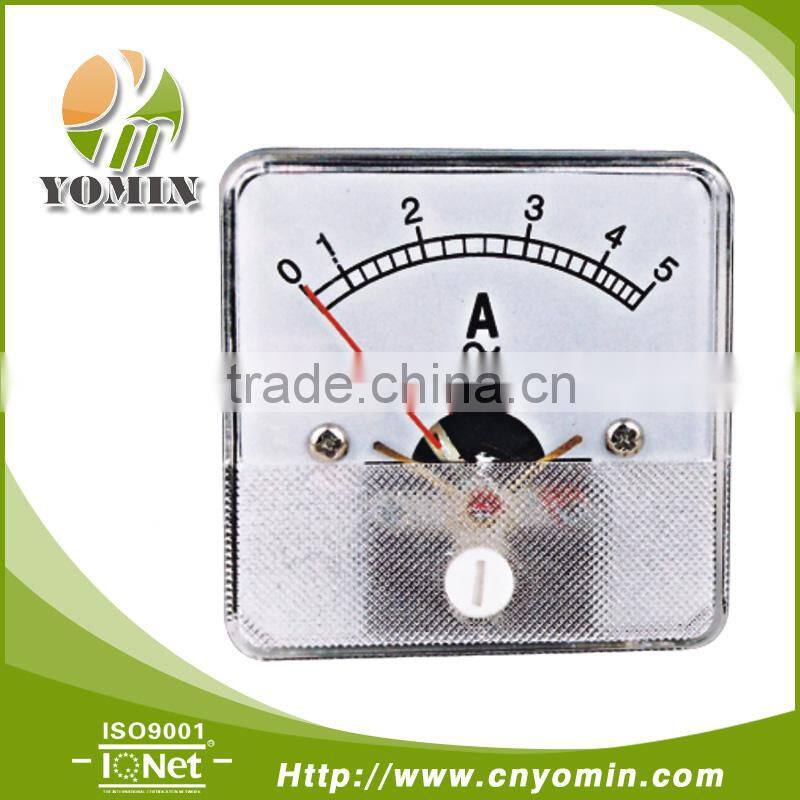

Manufacturer DT-A50 CT Operated AC Ammeter ,Analog Panel Meter 50*50 /

FOB Price

USD $5 - $10 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Ningbo or Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Place of Origin	Zhejiang, China		Brand Name	Yomin
Model Number	DT-A50		Display Type	Analog Only
Measuring Range	5A~6000A		Accuracy Class	2.5
Supply Voltage	5A~6000A		Operating Temperature	-25℃~+40℃
Dimensions	50*50

Product Description

DT-A50 CT operated AC Ammeter analog panel meter 50*50

Product Description

Reference Standards:

EN60051,EN50081,EN50082,EN61010,IEC60051,IEC1010,DIN43780

Auxilary power supply

The accepted tolerance for nominal values of the auxiliary power supplt is:Voltage:+10%~-15% Frequency:45Hz~65Hz

Zero Correction

A zero corrector is provided on the front panel of the meter,which can adjust the pointer to

the zero position.

Casing

The casing and frames for all instruments are made of self extinguishing ABS,according to

UL94,with high impact resistance.

The bases are made from self extinguishing reinforced PPO,according to UL94,with high

impact resistance and maximum electrical insulation.

Technical parameters

Model	Frame Size (mm)	Mode	Measuring Range	Class Index	Case Qty.(Pcs)
Direct input AC Ammeter
DT-DA50	50x50	-	5~50A	2.5	200
DT-DA60	60x60	-	5~50A	2.5	150
DT-DA67	60x70	-	5~50A	2.5	150
DT-DA80	80x80	-	5~60A	2.5	100
CT Operated AC Ammeter
DT-A50	50x50	X/5A*	5~6000A	2.5	200
DT-A60	60x60	X/5A*	5~6000A	2.5	150
DT-A67	60x70	X/5A*	5~6000A	2.5	150
DT-A80	80x80	X/5A*	5~6000A	2.5	100
CT Operated AC Ammeter
DT-A50	50x50	-	300V; 500V	2.5	200
DT-A60	60x60	-	300V; 500V	2.5	150
DT-A67	60x70	-	300V; 500V	2.5	150
DT-A80	80x80	-	300V; 500V	2.5	100
Direct input DC Ammeter
DC-DA50	50x50	-	50μA~30A	2.5	200
DC-DA60	60x60	-	50μA~30A	2.5	150
DC-DA67	60x70	-	50μA~30A	2.5	150
DCDA80	80x80	-	50μA~30A	2.5	100
Shunt operated DC Ammeter
DC-A50	50x50	x/60mV*	5~6000A	2.5	200
DC-A60	60x60	x/60mV*	5~6000A	2.5	150
DC-A67	60x70	x/60mV*	5~6000A	2.5	150
DC-A80	80x80	x/60mV*	5~6000A	2.5	100

DC-V50	50x50	-	50mV~500V	2.5	200
DC-V60	60x60	-	50mV~500V	2.5	150
DC-V67	60x70	-	50mV~500V	2.5	150
DC-V80	80x80	-	50mV~500V	2.5	100

Dimension and wiring
