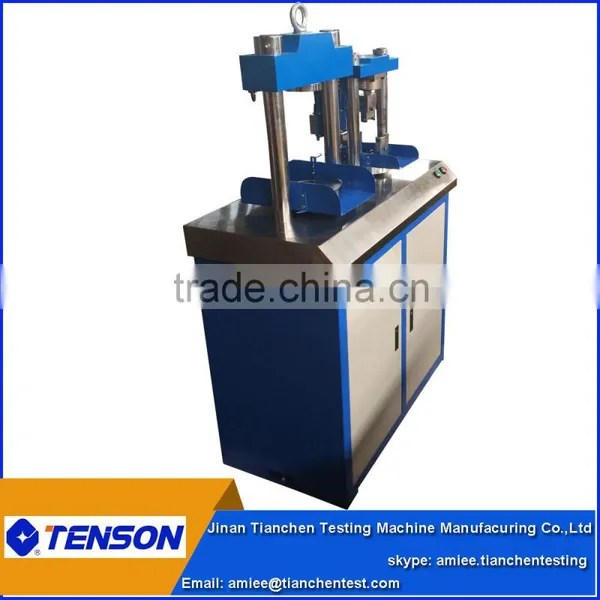

CE Cetificate Break and Compression Testing Machine for Cement YAW-300C
Introduction
The YAW-300C cement break and bending testing machine can do break and compression test in one machine it is maily used to test breaking and compression preformance of cement, it is meeting to ISO -R679 << Cement strength Test Method>>, and GB/T 17671-1999 << Cement and Sand Strength Test Method>>, The test process is automatic, lose noise and high precision, fully new digital valve can avoid contamination and jams
Features

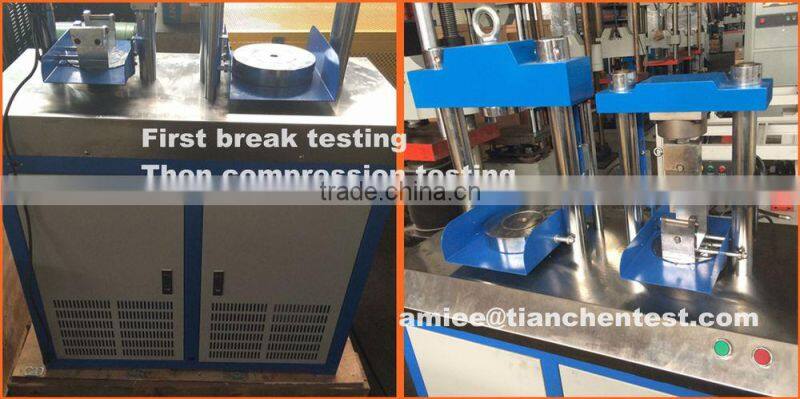

Testing step: first break cement then compression test

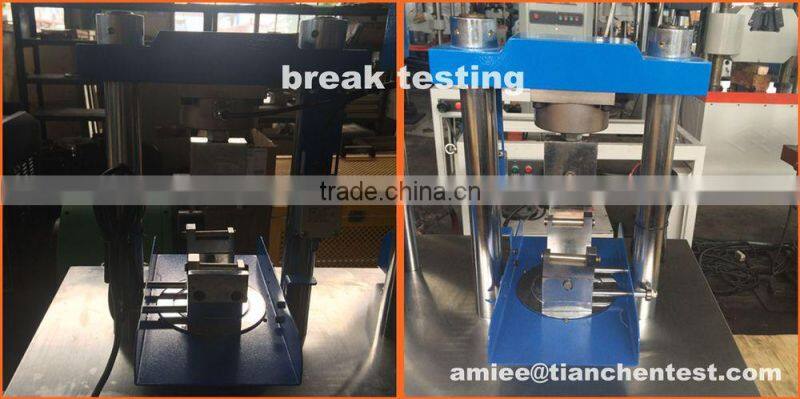

Break test

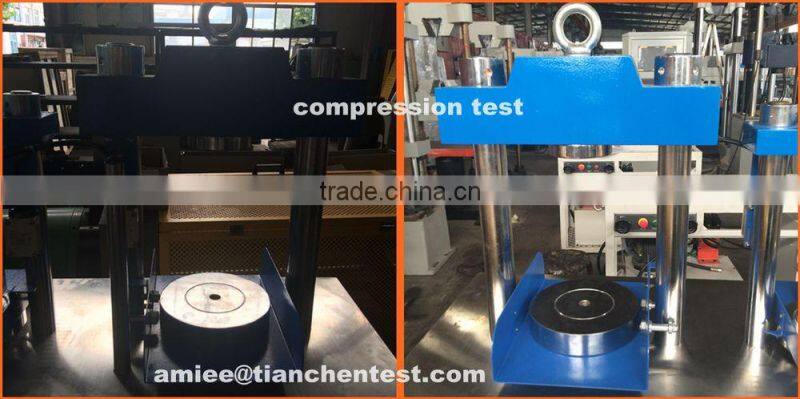

Compression test

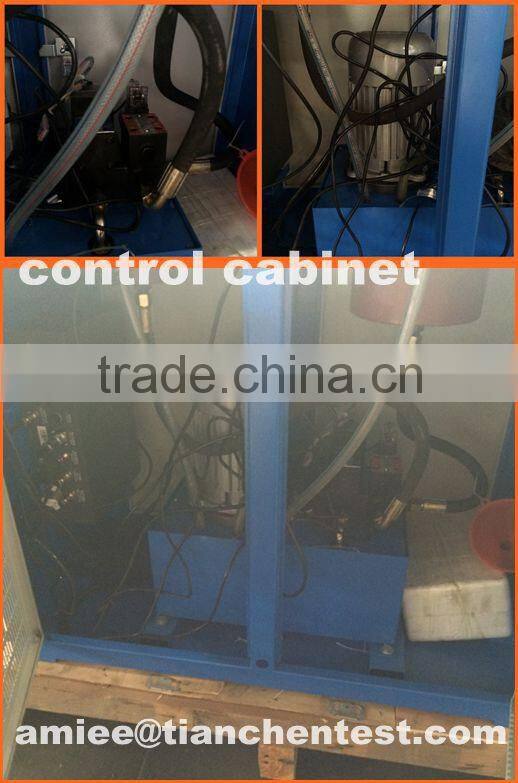

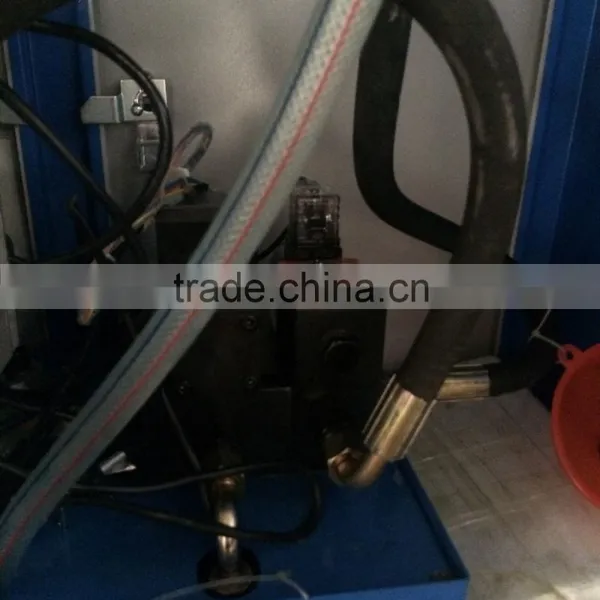

Control cabient

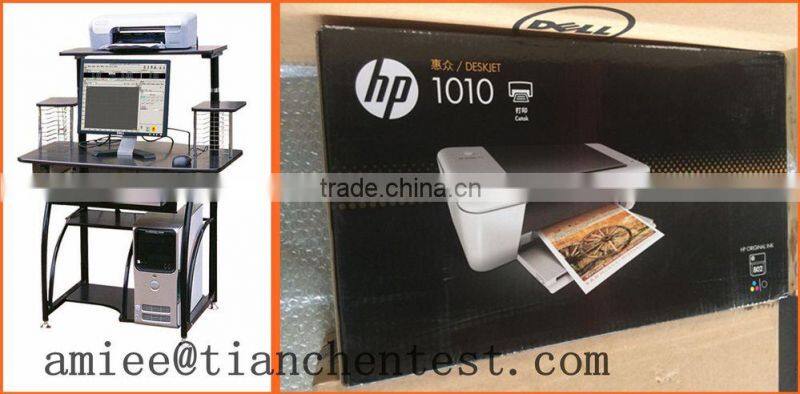

Electro-hydraulic servo type, with the LENOVO 19'' Computer, and HP A4 color ink jet printer
Characteristics of software
1.The software divide testing procedures as follows: tile compression resistant executive program(GB13544-2000),
cement compression resistant testing program (GB-17671-1999), concrete specimen testing program (GB-T5001-2002)
and mortar testing program (GB170-90).
2 There is no subsection in all process. (Or classify according to the requirements of customers.)
3 Display “testing-force-time”test curve at real time.
4 Complete test in batch automatically and adjust breaking of specimen.
5 Windows style can be controlled by human or computer. It is easy to manage and control, collect and calculate.
6 Record and save testing data automatically.
Technicalparameters
Maximum testing forice |
Compression 300kN, break 10kN |
Reading accuracy |
1 class |
Load speed accuracy |
0-10 KN adjustable, 25-75N adjustable |
Reading accuracy |
1% |
load speed: |
2.4 KN/S ± 200N/S, 50N/S ± 5N/S |
|
Power supply |
AC 220V ±10%, 50Hz, single phase or AC 380V ±10%, 50Hz, three phases |
Motor power |
0.75kw |
Overall dimension (L×W×H) (mm) |
820*500*1300mm |
Weight (kg) |
450kg |

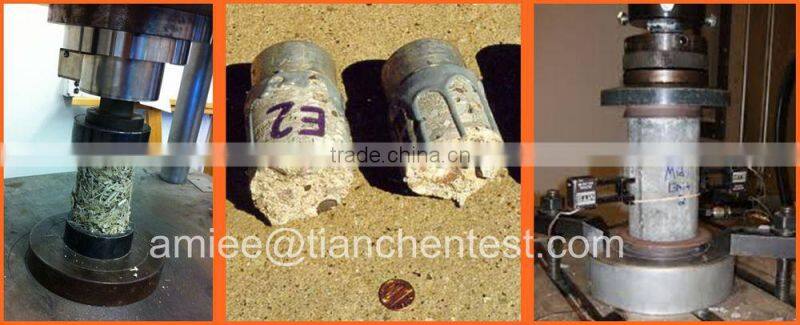

Specimen testing
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
