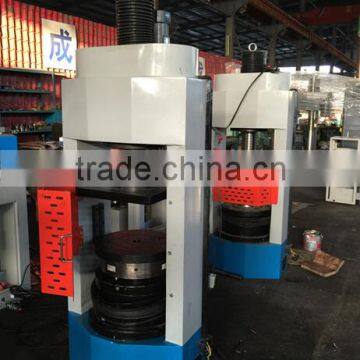

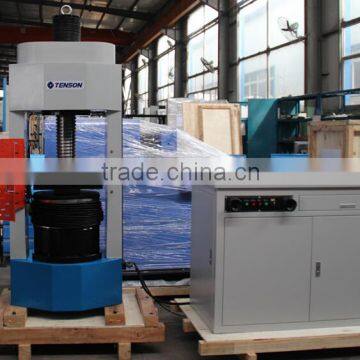

New Whole Casting Computerized Electro-hydraulic Compression Testing Machine 2000kN
Introduction
The whole casting Computerized Electro-hydraulic Compression Testing Machine 2000kN YAW-2000D is used for test the anti-pressure perforamance for cement, concrete samples( or components), it is 2 column structures, which as better rigidity, and stable working performance, it is perfect testing equipmrent for university, quality department and so on
Product features
|
1. Load measurement: Adopt high precision load cell, high precision oil cylinder piston stroke ensure the machine high precision, and more stable. |
|
2. Multi-protection: multi-protect for the software, hard ware, piston stroke and electric. When more than 2-5% of maximum loading, will realize the safe protection automatically, and has the limit switch for the oil cylinder lifting. |
|
3. Compact structure, reasonable layout, the host machine adopts whole casting steel structure, host machine and oil power supply integration, more beauty. |
4. Can be manual or automatic controlling method, more convenient to using. |
Software features
|
1. The interface includes test type, control process, test data analysis and software main program.The software can do many compression tests of materials, such as brick, cement, concrete and so on. |
2. Real-time record test curve. |
and quick. |
It is XML format. |
5. Operation easily, print test curve and related pictures and words. |
6. Data management, it can enquire, load and delete by many ways. |
Technicalparameters
Maximum testing force |
2000kN |
Class |
0.5 grade |
Measuring range of testing force |
1%-100% FS |
Accuracy of testing force |
Better than ±0.5% |
Test force loading speed |
0.02%-2% FS/s |
Resolution ratio |
1/300000 FS or more than |
Distance between columns |
400mm |
Under and lower pressure plate size |
Upper: 250mm Bottom: 260*280mm |
Distance between upper and lower plate |
320mm |
Upper and lower plate space adjusting method |
Electronic ball screw |
Maximum piston stroke |
10mm |
Piston stroke moving direction control |
Two-way oil cylinder |
Maximum piston stroke moving speed |
80mm/min |
Rate of loading |
600N/s~60kN/s |
Power supply |
AC 380V±10%,50Hz, three phases |
Working environment |
10~30℃, relative humidity 80% or less than |
Specimen testing
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
