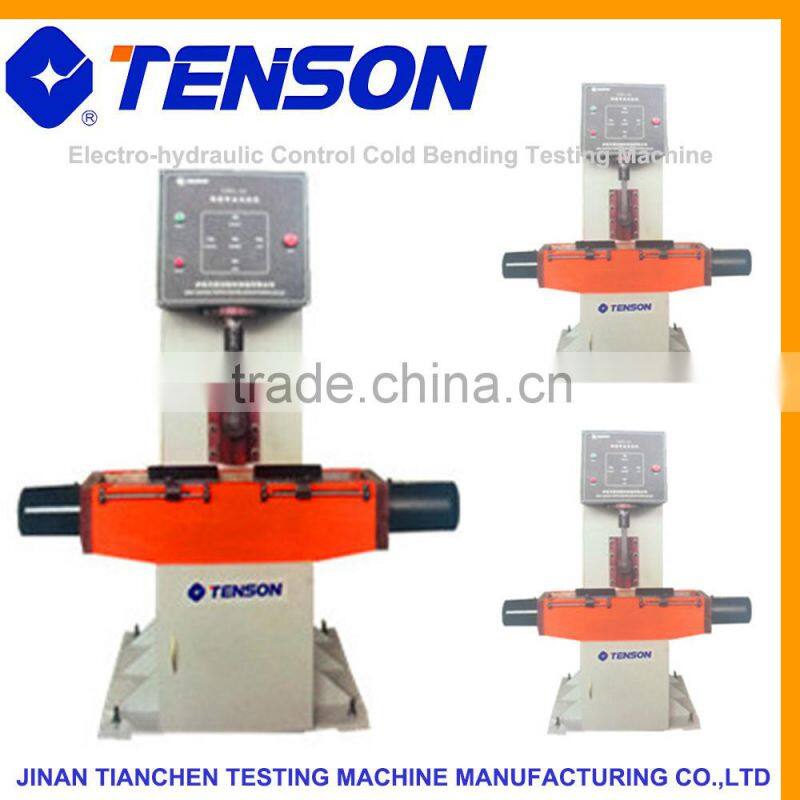

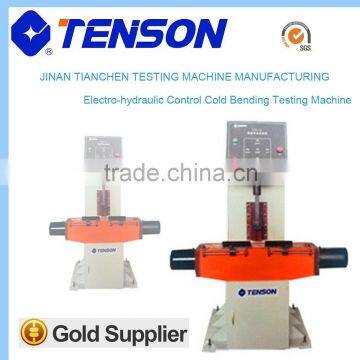

GWL-50 Electro-hydraulic Control Cold Bending Testing Machine
Main functions
This testing machine is used for bending test of metal materials,like tube, rod, sheet,rebar,etc. It adopts hydraulic double direction for loading,the main oil-cylinder firstly bending and horizontal oil-cylinder for re-loading. After unloading, the bending angle is equal to setting angle.
Main technical specifications:
Type GWL-50 | |||
Max.testing force |
200kN |
Bend range |
Arbitrary |
Structure |
Three oil-cylinder |
Piston stroke |
280mm |
Span adjust |
Ruler needle |
Side piston stroke |
225mm |
Max.rebar diameter |
Φ50mm |
Main piston unloading speed |
≥400mm/min |
Max.specimen thickness |
6-40mm |
Size piston unloading speed |
≥400mm/min |
Max.span |
450mm |
Power |
380V.2.2+0.75kw |
Roller span |
5-400mm |
Outer dimension |
1680×600×1580mm |
Roller diameter |
80mm |
Weight |
1200kg |
Roller seat specification |
Round pin 2pcs/flat pin 1pc |
||
Roller pin |
Φ(6.5,8,10,12,14,16,18,20,24,32,40,42,48,54,56,60,64,66,70,72,75,80,88,100,112,128,140,144,180,200)mm |
||
Pipe roller |
Optional |
||
For more information, quotation, working videos, just feel free to contact us!
