GW-40B Reinforcing Steel Bar Bending Testing Machine
Introduction
GW-40B Reinforcing Steel Bar Bending Testing Machine is applied to do bending test and plane reverse bending test of reinforcing steel. It confirms to GB1499.2-2007 and YB/T 5126-2003, widely used in steel metallurgical,steel structure,prefabricated components, construction building materials,steel pipe production and other enterprise,the project quality supervision,engineering inspection station, it is an indispensable testing equipment to test the cold bending property and the reverse bending property of thread steel. The instrument is also applicable to do field test of bending test for reinforcing steel bar in the construction industry.
Technical Parameters
Type GW-40B | |||
Diameter range of reinforcing steel bar |
Φ6-Φ40mm |
Roller |
3*Φ6,3*Φ8,3*Φ10,3*Φ12,3*Φ14, 3*Φ16,3*Φ18,3*Φ20,3*Φ22,3*Φ25, 4*Φ28,4*Φ32,4*Φ36,4*Φ40 one for each, total:14 (HTB335) |
Positive bending angle of reinforcing steel bar |
0°-180°Arbitrary setting |
||
Reserve bending angle of reinforcing steel bar |
0°-30°Arbitrary setting |
||
Bending speed |
≤20°/s |
||
Distance between rollers center |
165mm |
Roller |
4*Φ8,4*Φ10,4*Φ14,4*Φ16,4*Φ18,4*Φ20, 4*Φ22,4*Φ25,5*Φ28,5*Φ36,5*Φ40 one for each,total:11(HRB400) |
Diameter of working plates |
Φ580mm |
||
Power of motor |
1.5KW |
||
Overall dimension(L×W×H) |
1050×740×1170(mm) |
Weight |
About 700kg |
Remarks:Other Roller is customized made | |||

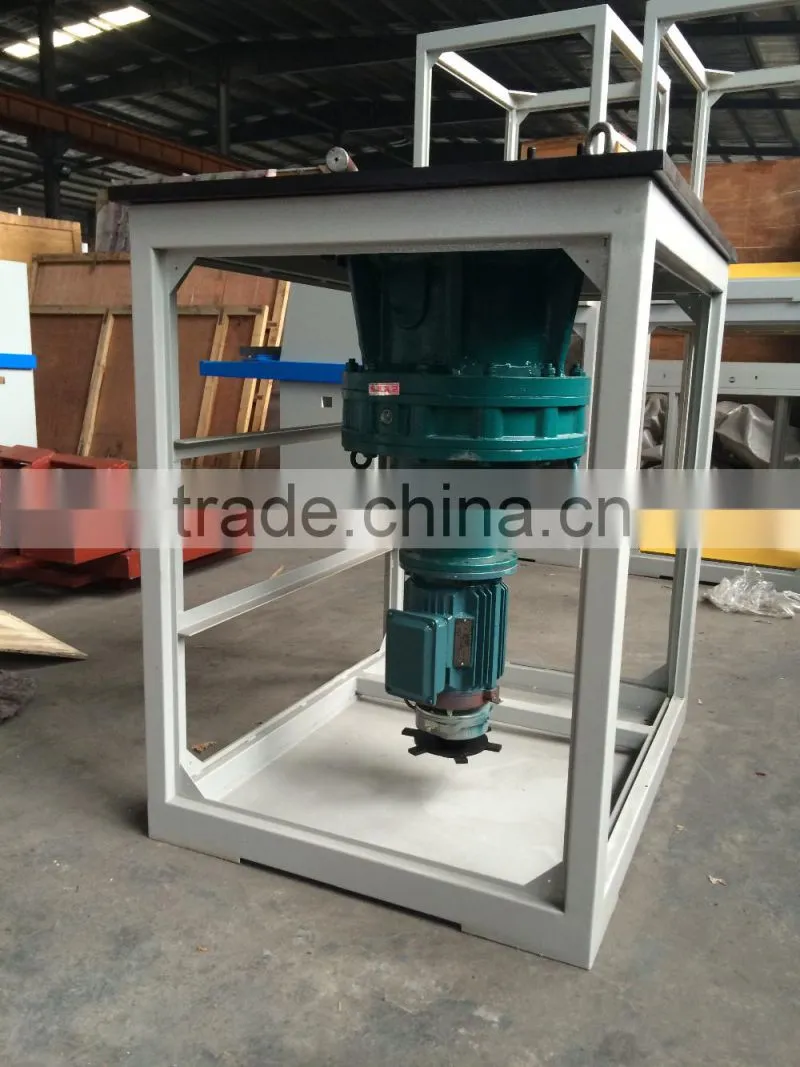

Part shows
For more information, quotation, working videos, just feel free to contact us!
