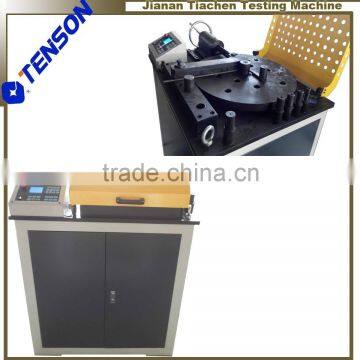

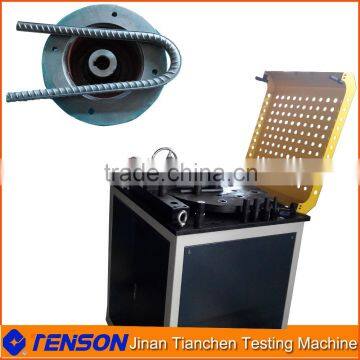

GW-40B Reinforcing Steel Bar Bending Testing Machine
Main functions
GW-40B Reinforcing Steel Bar Bending Testing Machine is applied to do bending test and plane reverse bending test of reinforcing steel. It confirms to GB1499.2-2007 and YB/T 5126-2003, widely used in steel metallurgical,steel structure,prefabricated components, construction building materials,steel pipe production and other enterprise,the project quality supervision,engineering inspection station, it is an indispensable testing equipment to test the cold bending property and the reverse bending property of thread steel. The instrument is also applicable to do field test of bending test for reinforcing steel bar in the construction industry.
Technical Parameters
Diameter range of reinforcing steel bar |
Φ6-Φ40mm |
Positive bending angle of reinforcing steel bar |
0°-180°Arbitrary setting |
Reserve bending angle of reinforcing steel bar |
0°-30°Arbitrary setting |
Bending speed |
≤20°/s |
Distance between rollers center |
165mm |
Diameter of working plates |
Φ580mm |
Power of motor |
1.5KW |
Overall dimension(L×W×H) |
1050×740×1170(mm) |

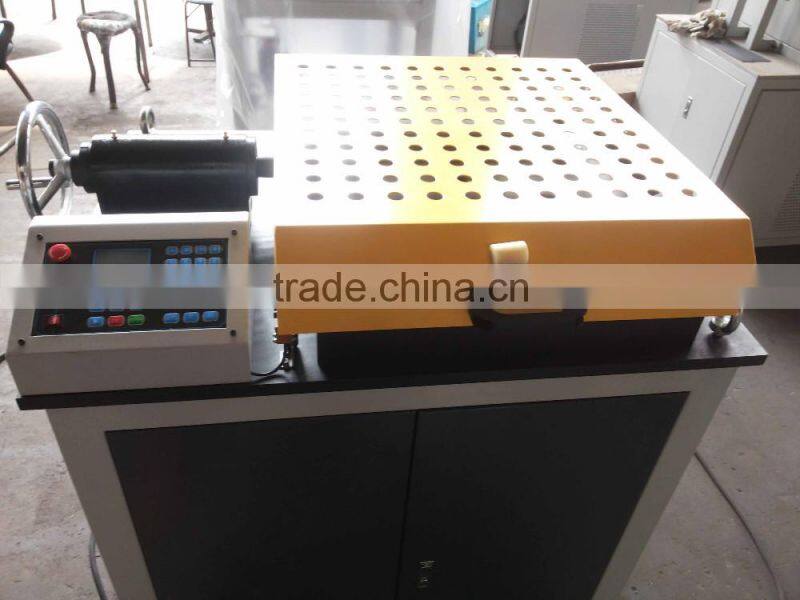

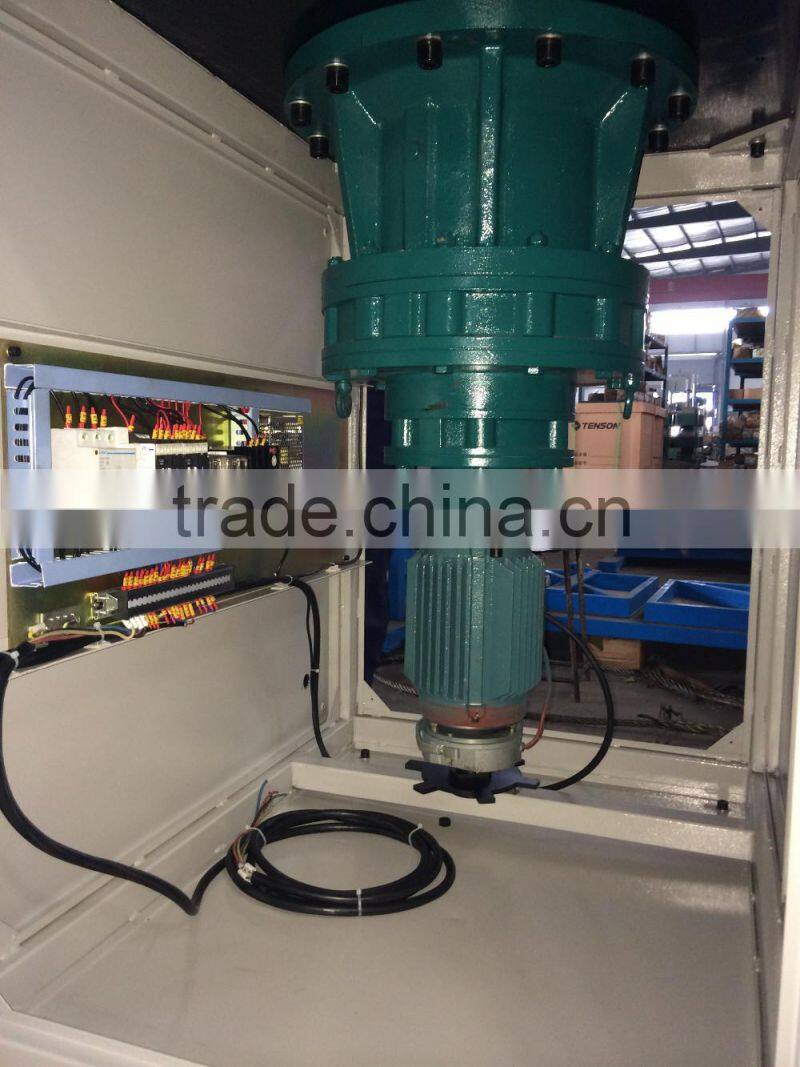

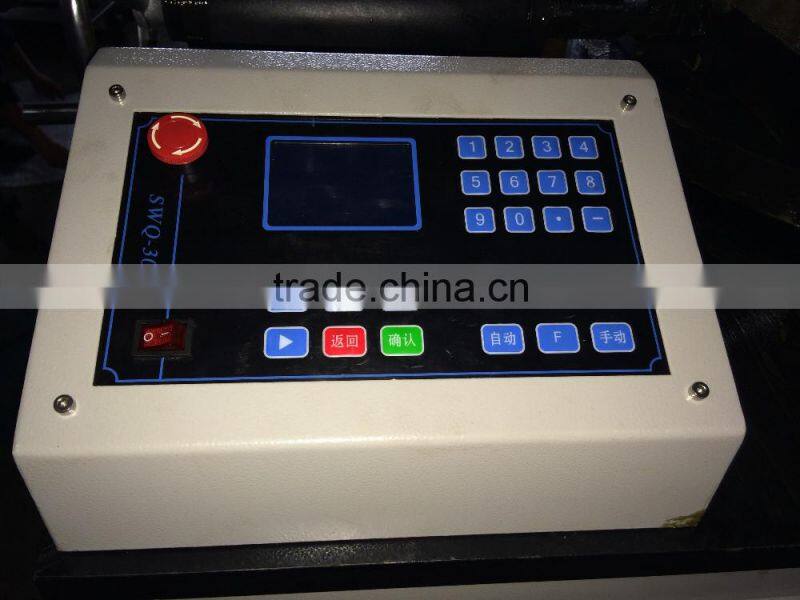

part shows
For more information, quotation, working videos, just feel free to contact us!
