GW-40B Reinforcing Steel Bar Bending Testing Machine of Tianchen
Introduction
GW-40B testing machine is applied to do bending test and plane reverse bending test of reinforcing steel. It conforms to GB/499-2-2007 and YB/75126-2003, widely used in steel metallurgical, steel structure, prefabricated components, construction building materials steel pipe production and other enterprise, the project quality supervision, engineering inspection stations, it is an indispensable testing equipment to test the cold bending property and the reverse bending property of thread steed. The instrument is also applied to do field test of bending test for reinforcing steel bar in the construction industry.
Technical Parameters
Type |
GW-40B |
Test bar diameter range |
φ6-φ40mm |
Bending angle |
0-180 |
Re-bending angle |
0-30 |
Bend speed |
20/s |
Distance between the center two roller |
165mm |
Diameter of working |
φ580mm |
Power of motor |
1.5kw |
Outer dimension |
1050*740*1170mm |
Roller |
3*φ6,3*φ8, 3*φ10, 3*φ12, 3*φ14, 3*φ16, 3*φ18, 3*φ20, 3*φ22, 3*φ25, 4*φ28, 4*φ32, 4*φ36, 4*φ40, |
Roller |
4*φ8, 4*φ10, 4*φ14, 4*φ16, 4*φ18, 4*φ20, 4*φ22, 4*φ25, 5*φ36, 5*φ40, |
Weight |
700kg |
Remark: other rollers are customized made | |

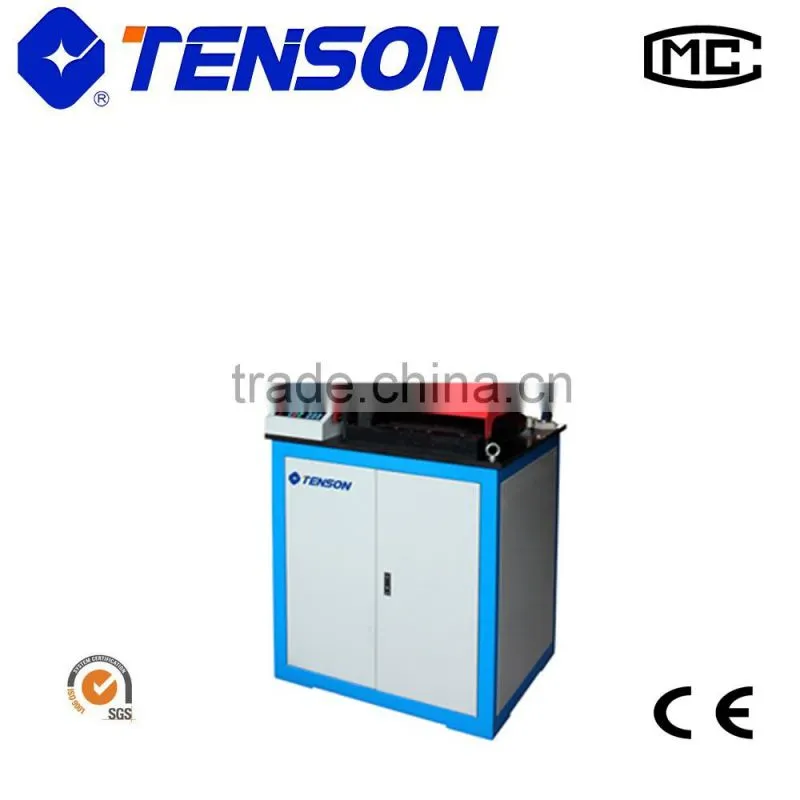

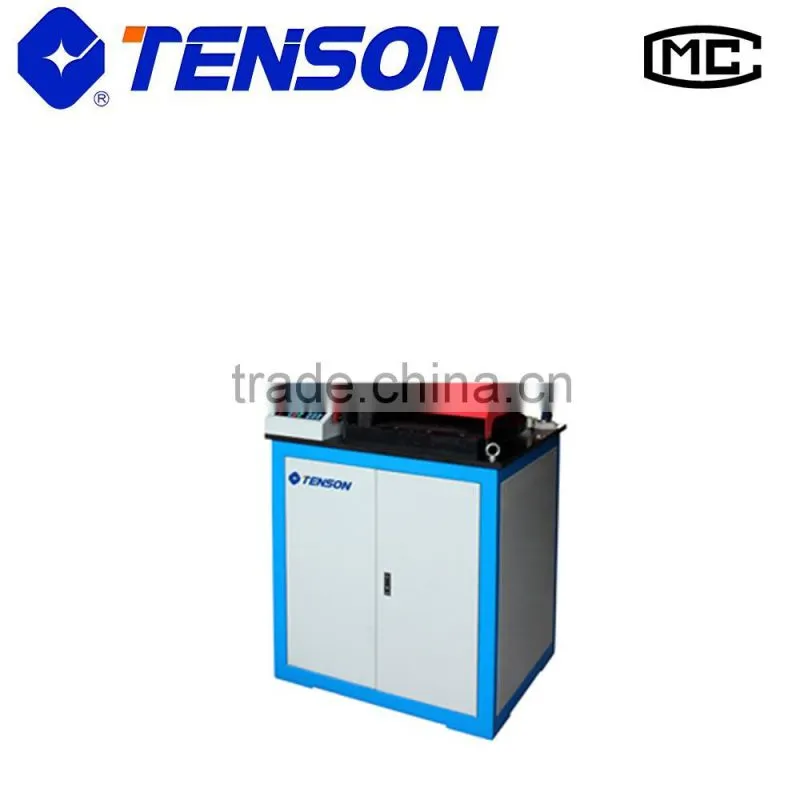

The Pictures of GW-40B Reinforcing Steel Bar Bending Testing Machine
FAQ
Q: what is the service guarantee?
A: Tianchen has perfect sale service network. There are more than 30 offices in all of the country. Moreover, the company has a mobile itinerant procession that solves difficulties and supervises the service quality of every office at any time.
Q: What are the service promises?
A: 1. During the installation and commission of equipments, our professionals direct and install the machine;
2. After in the installation and commission of equipments, we help to make the test of measure;
3. We train the equipment operator for free;
4. We supply 1-year guarantee-repairing service and maintenance service of life. After guarantee time, the cost if you change it.
5. We update the computer software for life free;
6. We respond the customers calling when the supply the question information in 1 hour, give the solution case in 2hours, professional engineer will provide the support service in 48 hours;
7. We supply the visit and equipments maintenance service frequency;
8. Nation-wide professionals can supply the timely and considerate after-sale service whenever you are.
Our company
Jinan Tianchen Testing Machine Manufacturing Co., Ltd is subordinate to Tianchen Machine Group, which was established in 1997. Up to know its sales have achieved 2 billion. In September 2000, Tianchen successfully passed ISO9001 and has own right export and export. Tianchen was approved “High-tech Enterprise in Jinan city” by Shandong Provincial Science and Technology Department in 2004.
During hard work for 10 years, “Tianchen Testing Machine” has became the famous brand in its field. Tianchen depends on the group’s advantages of funds, technology and human Presources and then its comprehensive strength is in the forefront of the industry. It has been sold to all over the country, and also exported to France , England, Panama, Russia, Thailand, Singapore and many other countries.
The company’s after-sales service
1. The warranty of all our testing machines is one year.
2. During this warranty, it is free to replace the spare parts.
3. Without this warranty, it only charges the cost of the spare parts.
4. All our testing machines enjoy a long life after-sales service.
