Specifications
Products:LR 90 Degree Pipe BendSize: 1/2"-24" seamless 26"-96" weld
Material:carbon steel

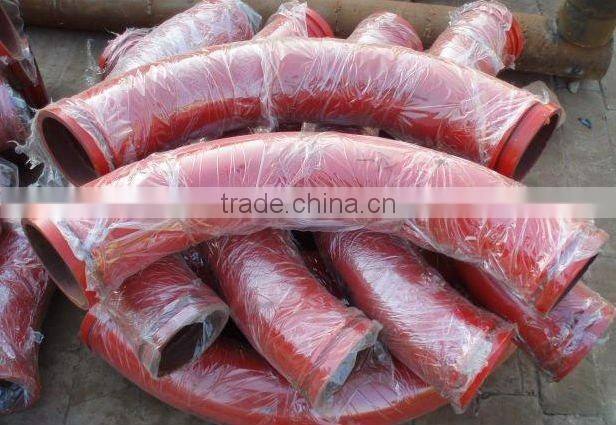

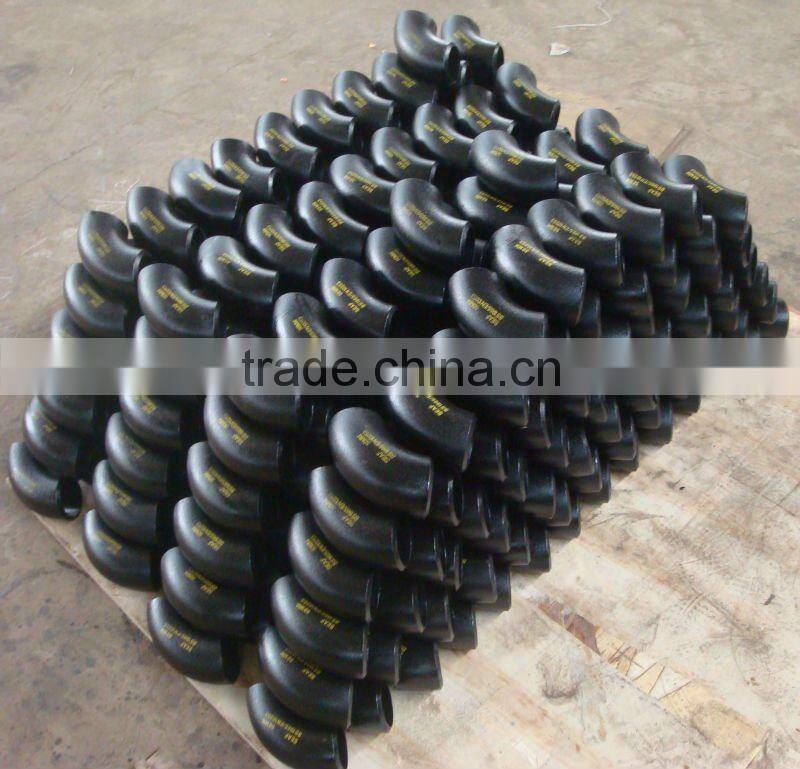

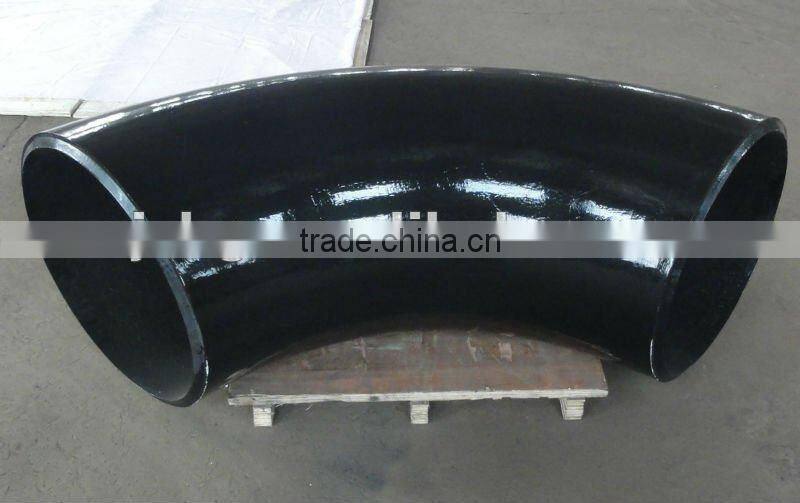

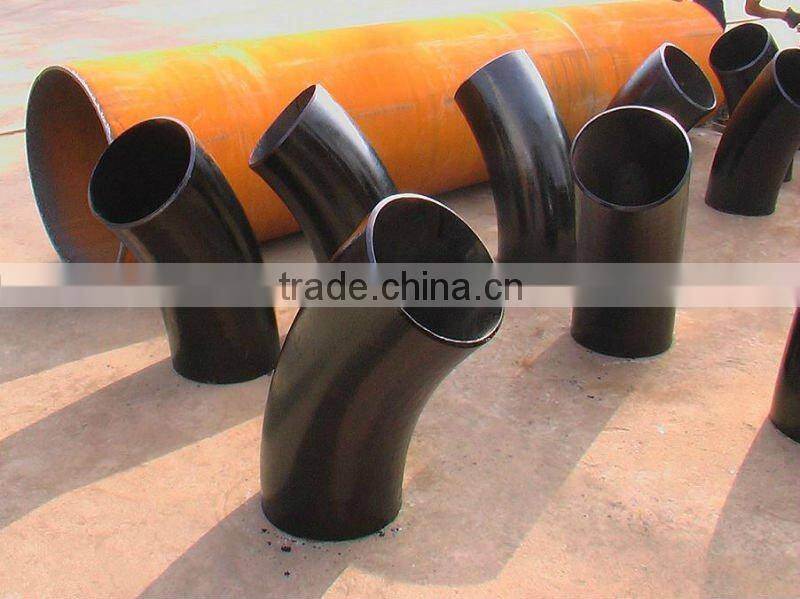

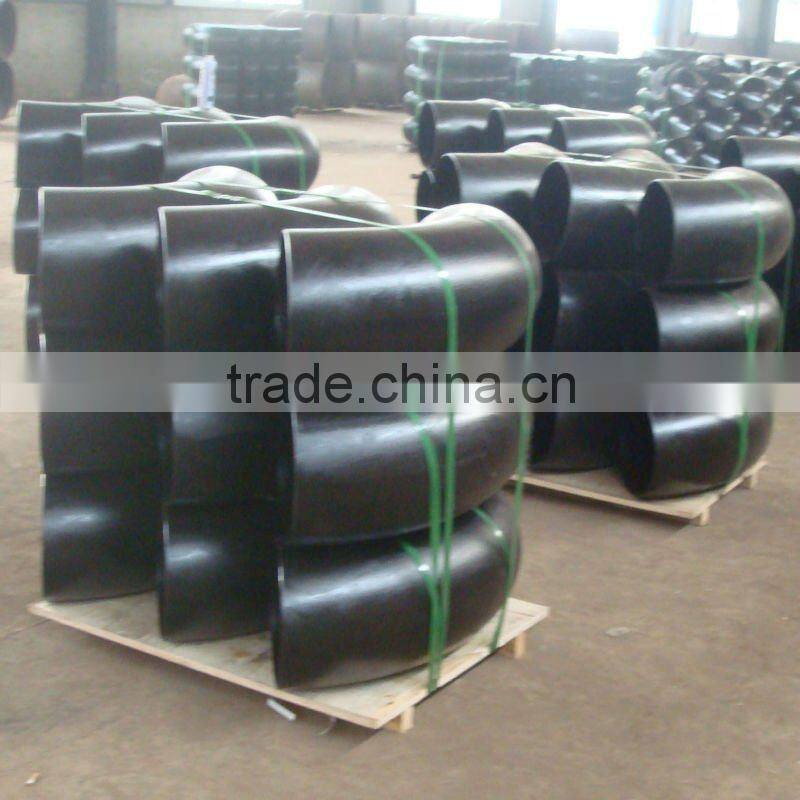

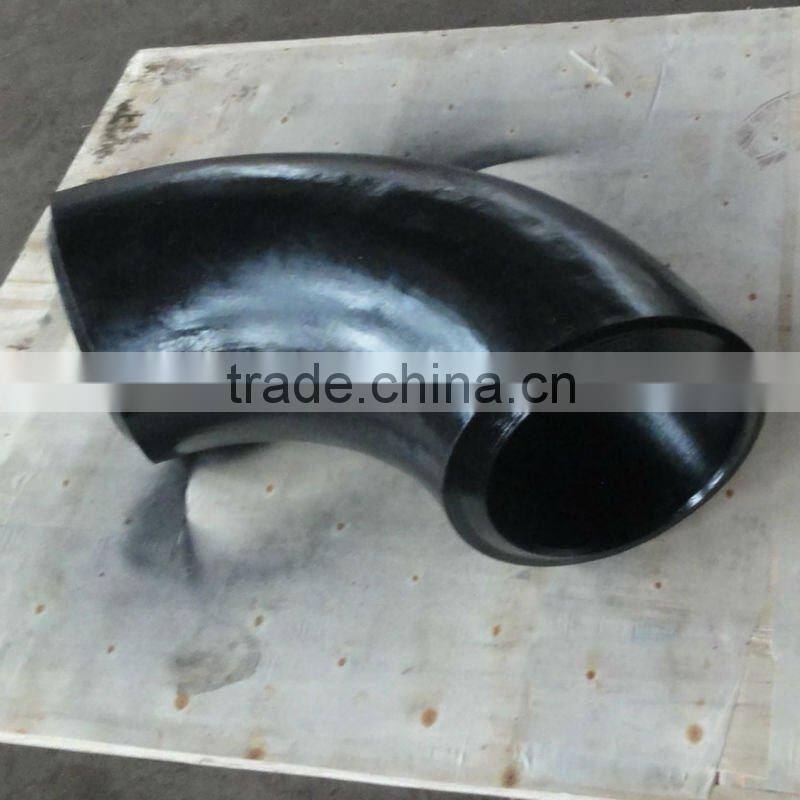

LR 90 Degree Pipe Bend
Size -- Seamless:from 1/2" to 24" ,Welded:from 24" to 96"( or as customer requirements)
Angle -- 22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
Thickness--SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard --ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Material --
Carbon steel --ASTM A234WPB,,A234WPC,A420WPL6. 20#,Q235,10#,20#,A3, Q235A, 20G,16Mn, DIN St37, St45.8, St52.4,St.35.8,St.35.8 ASTM A333 GR.6 ; API 5L GRB, X60, X65, X42,X52, ect
Stainless Steel --ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, etc
Alloy Steel --ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,16MnR, Cr5Mo, 12Cr1MoV, 10CrMo910,15CrMo, 12Cr2Mo1; ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, etc .
Qualification-- API ,CE ,ISO
Packing-- in wooden cases or as your requirement
Application--Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc
Special design available as the requirement of customer
