BBZ - DBE Intelligent Electromagnetic Flow Meter

BBZ - DBE Intelligent Electromagnetic Flow Meter photo-1
BBZ - DBE Intelligent Electromagnetic Flow Meter photo-2

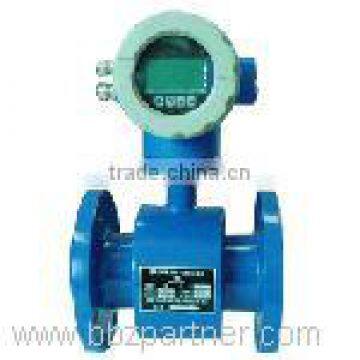

BBZ - DBE Intelligent Electromagnetic Flow Meter photo-3
BBZ - DBE Intelligent Electromagnetic Flow Meter photo-4

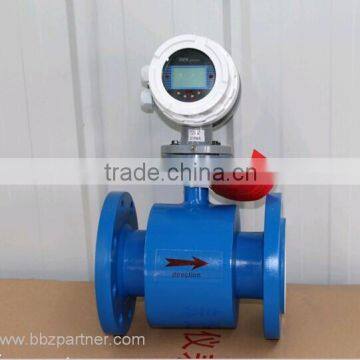

BBZ - DBE Intelligent Electromagnetic Flow Meter photo-5
BBZ - DBE Intelligent Electromagnetic Flow Meter photo-6
US$ 85 - 1,005 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BBZ
Model Number:
BBZ - DBE
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Lianyungang Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name BBZ
Model Number BBZ - DBE
Product Introduction

BBZ – DBE intelligent electromagnetic flow meter used to measure the volume flow of various chemical salt solution, slurry , pulp, paper pulp, coal water slurry, corn syrup, fiber pulp, grain syrup, milk of lime, sewage, cooling raw water, drainage, saline, hydrogen peroxide, beer. Wort, drinks, black liquor, green liquor and other conductive liquid medium .

Characteristics

High accuracy, good stability, unaffected by the temperature, pressure, density, viscosity and electrical conductivity change of measured liquid.

Simple sensor structure, no throttling device, not blocked, suitable for all kinds of measuring liquid containing solid particles, fibers, suspended solids.

Various wetted parts , used for all kinds of corrosive liquid measurement.

Optional horizontal, vertical, inclined installation , as long as the measuring tube filled with liquid and no gas bubbles .

wide measuring range, 100:1 range ratio and can be modified.

Field zero calibration, not affect measurement accuracy.

Intelligent self-diagnostic codes technology, easy installation, easy maintenance;

Customized electromagnetic flow meter without lining.

Product Details Show

BBZ – DBE intelligent electromagnetic flow meter is widely used in chemical fiber, food, paper, sugar, mining, water supply and drainage, environmental protection, water hydraulic, steel, petroleum, pharmaceutical and other industrial fields.

Product Parameters
Nominal diameter(mm)
DN10~DN600
Liner
Rubber  Tetrafluoroethylene
Flow direction
Positive and negative, the net flow
Range ratio
150: 1
Repeatability
0.1%
Accuracy
0.5% 1.0%
Measured medium temperature
-30 ~ + 100 ℃ -30 ~ + 180 ℃
Rated working pressure
DN6-DN100: ≤1.6Mpa, DN125-DN2200≤1.0Mpa
Flow range
0.1-15m/s
Conductivity range
≥5μs / cm
Current Output
Load Resistance: 0 ~ 10mA, 0 ~ 1.5Ω, 4 ~ 20mA, 0 ~ 750Ω
Digital frequency output
Output frequency upper limit can be set bidirectional Output
with transistor with optical isolation and open collector within 1 ~ 5000HZ. The maximum current is 250mA while external power supply ≤35V .

Power supply
85~265V,45~63HZ
Straight pipe length
Upstream ≥5DN, downstream ≥2DN
Connection
Flange
Ex-proof Grade
mdllBT4
Ambient temperature
-250℃~600℃
Relative Humidity
5% -95%
Total power consumption
less than 20W
