Brief Introduction:

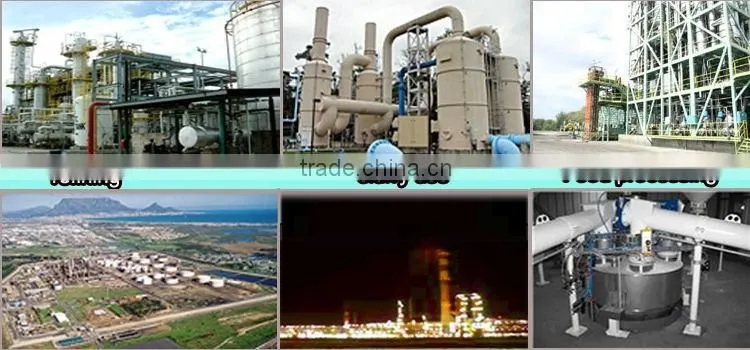

BBZ cheap mechanical magnetic flow meter for steel is widely used in chemical fiber, food, paper, sugar, mining, water supply and drainage, environmental protection, water hydraulic, steel, petroleum, pharmaceutical and other industrial fields.
Features:
High accuracy, good stability, unaffected by the temperature, pressure, density, viscosity and electrical conductivity change of measured liquid.
Simple sensor structure, no throttling device, not blocked, suitable for all kinds of measuring liquid containing solid particles, fibers, suspended solids.
Various wetted parts , used for all kinds of corrosive liquid measurement.
Optional horizontal, vertical, inclined installation , as long as the measuring tube filled with liquid and no gas bubbles .
wide measuring range, 100:1 range ratio and can be modified.
Field zero calibration, not affect measurement accuracy.
Intelligent self-diagnostic codes technology, easy installation, easy maintenance;
Customized electromagnetic flow meter without lining.
Specifications:
Nominal diameter(mm) |
DN10~DN1200 |
Liner |
Tetrafluoroethylene rubber |
Flow direction |
Positive and negative, the net flow |
Range ratio |
150: 1 |
Repeatability |
0.1% |
Accuracy |
0.5% 1.0% |
Measured medium temperature |
-30 ~ + 100 ℃ -30 ~ + 180 ℃ |
Rated working pressure |
DN6-DN100: ≤1.6Mpa, DN125-DN2200≤1.0Mpa |
Flow range |
0.1-15m/s |
Conductivity range |
≥5μs / cm |
Current Output |
Load Resistance: 0 ~ 10mA, 0 ~ 1.5Ω, 4 ~ 20mA, 0 ~ 750Ω |
Digital frequency output |
Output frequency upper limit can be set bidirectional Output with transistor with optical isolation and open collector within 1 ~ 5000HZ. The maximum current is 250mA while external power supply ≤35V . |
Power supply |
85~265V,45~63HZ |
Straight pipe length |
Upstream ≥5DN, downstream ≥2DN |
Connection |
Flange |
Ex-proof Grade |
mdllBT4 |
Ambient temperature |
-250℃~600℃ |
Relative Humidity |
5% -95% |
Total power consumption |
less than 20W |
Applications:
BBZ cheap mechanical magnetic flow meter for steel used to measure the volume flow of various chemical salt solution, slurry , pulp, paper pulp, coal water slurry, corn syrup, fiber pulp, grain syrup, milk of lime, sewage, cooling raw water, drainage, saline, hydrogen peroxide, beer. Wort, drinks, black liquor, green liquor and other conductive liquid medium .
