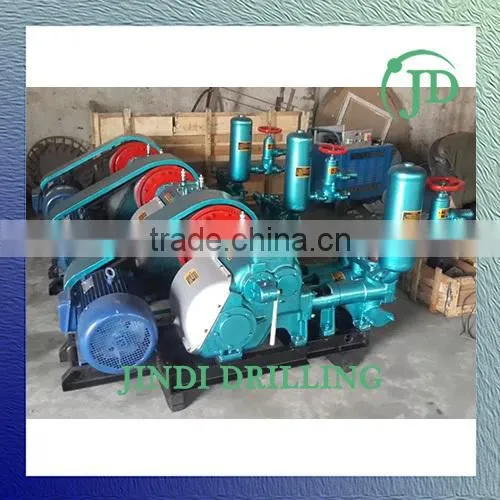

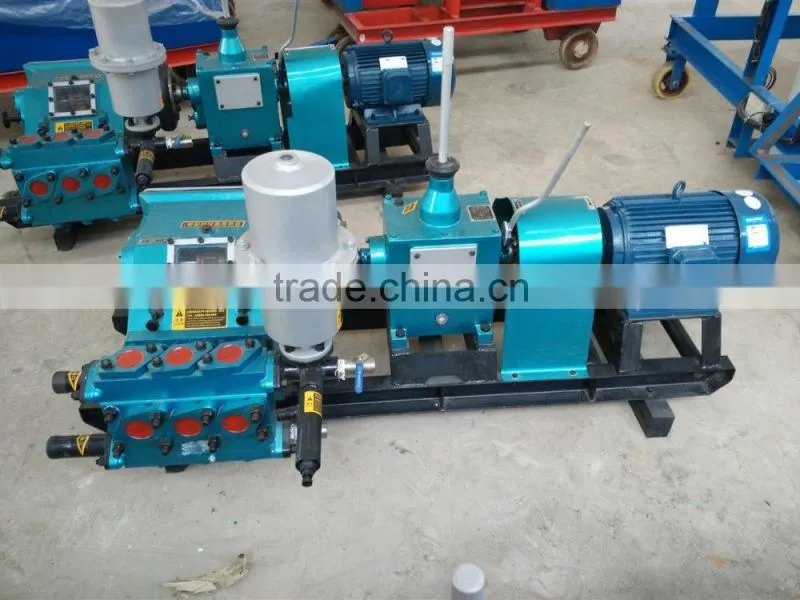

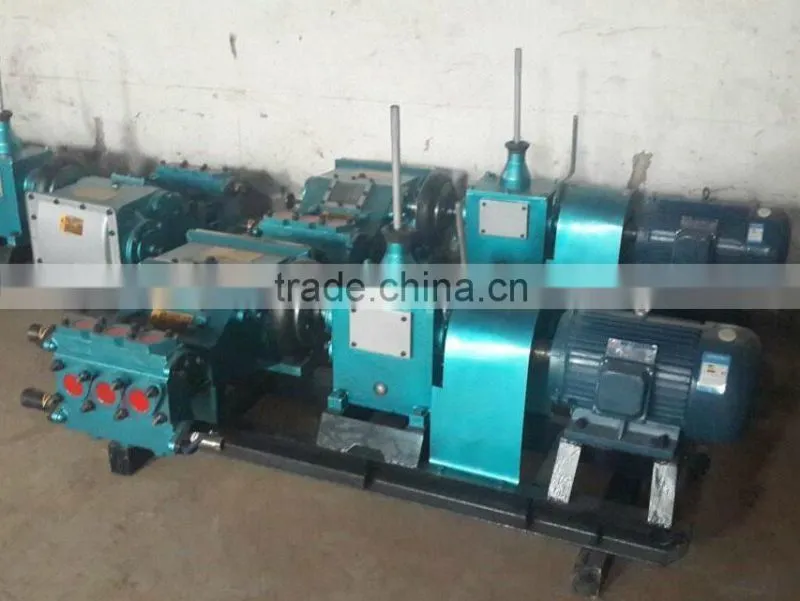

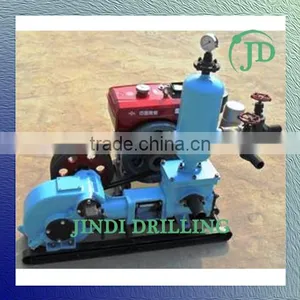

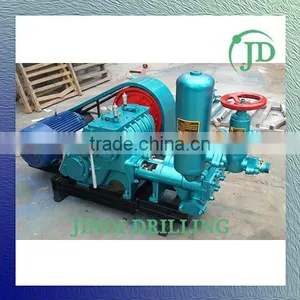

diesel engine and triplex plunger pump
The mud pumps are of horizontal reciprocating dual cylinder, double acting piston type. It is used for pressing washing liquid(mud or water)into the drilling well when the geological drilling performs and is adaptable to the 200-600m water well drilling rig.
It is characterized by bigger displacement, high pressure, long working life of wearing parts, easy maintenance.
In drilling fields, it is used to raise drilling efficiency, reduce drilling costs. The pumps have been highly appreciated by users. It is an ideal and economic equipment for drilling.
Type |
Horizontal three-cylinder reciprocating single acting piston pump |
Cylinder diameter(mm) |
70 |
Stroke(mm) |
80 |
Pump speed(S.P.M) |
57,86,130,222,47,71,107,183 |
Flow(L/min) |
38,58,90,150,32,47,72,125 |
Pressure(Mpa) |
7,4.8,3.2,1.8,7,6,4,2.3 |
volumetric efficiency |
85% |
Power(Kw) |
7.5 |
Suction pipe diameter(mm) |
51 |
Drain pipe diameter(mm) |
32 |
Size |
1925*795*1150(diesel motor) 1840*795*995(electric motor) |
Weight |
560kg(electric) 630kg(diesel) |
Note: We made different size mud pumps for drilling rig , it is the part one , if you want know more or more demands , pls let me know , We will give you an best suggestion and suitable qutation. Thanks
Shijiazhuang Jindi Drilling machinery Co,.ltd
Contact: Mr Andy
Mob: 086-15933114663
Skype:andy_guo1023
Email:andy(at)jindizt(doc)com
