Product Details
| Place of Origin: | Hebei, China | Brand Name: | JinDi | Model Number: | BW850/20 |
| Theory: | Rotary Pump | Structure: | Piston Pump | Usage: | Water |
| Power: | Hydraulic | Standard or Nonstandard: | Standard | Fuel: | Diesel |
| Pressure: | High Pressure | Application: | Submersible |
Product Description

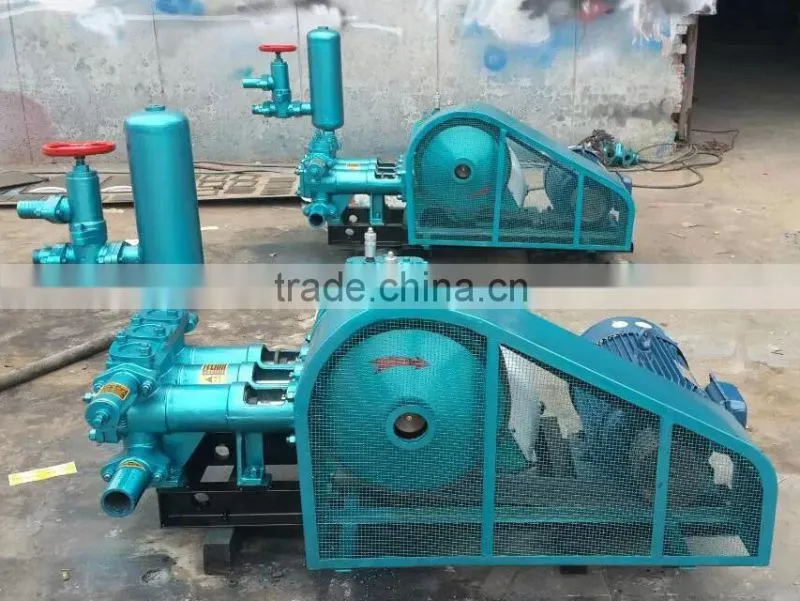

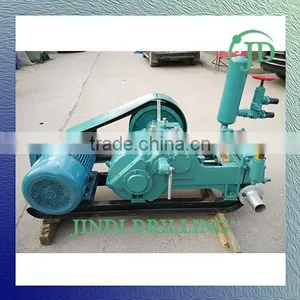

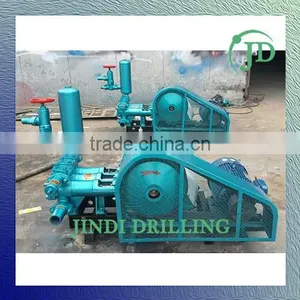

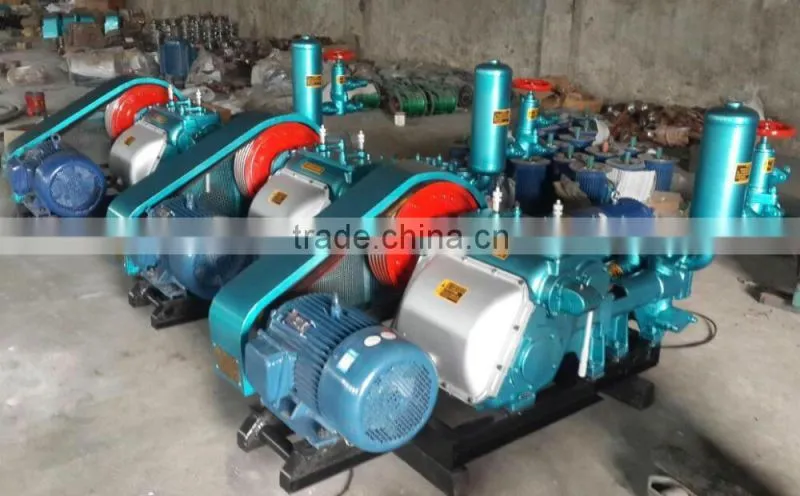

BW850/20 Slurry/slurry pump for drilling rig/drilling slurry pump
The slurry pumps are of horizontal reciprocating dual cylinder, double acting piston type. It is used for pressing washing liquid(mud or water)into the drilling well when the geological drilling performs and is adaptable to the 200-600m water well drilling rig.
It is characterized by bigger displacement, high pressure, long working life of wearing parts, easy maintenance.
In drilling fields, it is used to raise drilling efficiency, reduce drilling costs. The pumps have been highly appreciated by users. It is an ideal and economic equipment for drilling.
Type | BW850/20 | BW850/50 |
Cylinder dia.(mm) | 150 | 140,130,95 |
Piston stroke(mm) | 180 | 260 |
Pump speed(Num./min) | 82,58 | 66 |
Displacement(L/min) | 850,600 | 850,600,350 |
Pressure(Mpa) | 2.0,3.0 | 5,6,8 |
Speed of V-belt speed(r/min) | 470 | 375 |
Power input(kw,Hp) | 40/54 | 75 |
Inlet pipe diameter(mm,in) | 127,5” | 152.4,6” |
Drain pipe diameter(mm,in) | 63.5,2 1/2” | 88.9,3 1/2” |
Size(L*W*H)mm | 2000*1030*1400 | 3018*1120*2050 |
Weight(kg) | 1500 | 3100 |
Note: We can supply you different size , pls tell me your demands ,we can quote for you for details
Shijiazhuang Jindi Drilling machinery Co,.ltd
Contact: Mr Andy
Mob: 086-15933114663
Skype:andy_guo1023
Email:andy(at)jindizt(doc)com
