Different Types Of Hypodermic Needle Sizes
Properties: |
Injection & Puncture Instrument |
Brand Name: |
Gatherpoints |
Place of Origin: |
Jiangsu China (Mainland) |
Material: |
Stainless Steel and plastic |
| Advantages: | The needle edge is firm and sharp. |
| Samples charge: | Free for Existing Samples |
| Logo: | As your request |
| Low MOQ: | 500PCS |
Certification available: |
Free sale certificate,CE,ISO |
OEM accepted: |
Yes |
Product type: |
Biopsy needle,Bone Marrow Biopsy Needle,Suction-Type Bone Marrow Biopsy Needle,Thoracic Puncture Needle,Disposable & Metal Lumbar Puncture Needle,Metal & Disposable Epidural Needles,Metal Injection Needle,Tonsil Puncture Needle,Palate Sinus Puncture Needle,Disposable Embedded Wire Needle,Disposable Scale Blunt Needle,Diopsable Intravenous I.V.Catheter,Disposable Nerve Block Puncture Needle,Stainless Steel Puncture Needle |

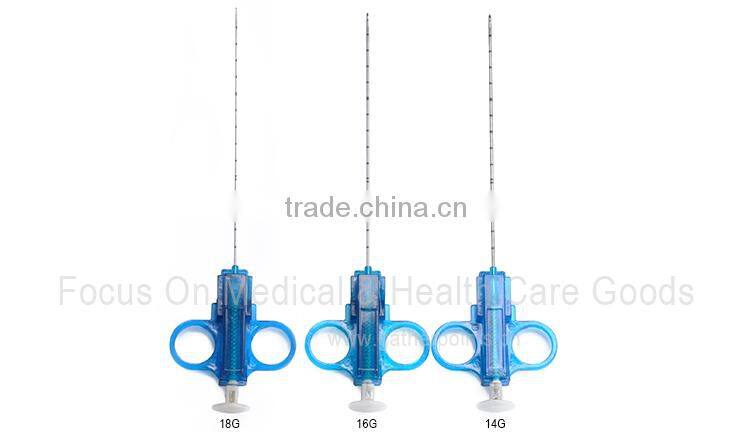

Biopsy Needle
Usage:
Biopsy needle can be used to sample biopsy from the cone tumor and unknown tumor and absorb cells.Using removable outside needle can be injectable hemostatic agent and treatment, etc.
Scope of application:
It is applicable to the kidneys, liver, lung, breast, thyroid, prostate, pancreas, testicular, uterus, ovaries, skin and other organs.
Product features:
It is easy to carry , easy to control, can be single hand operation

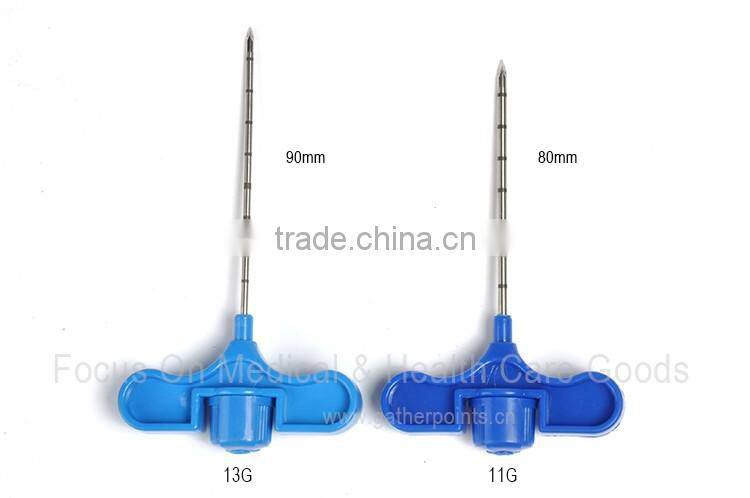

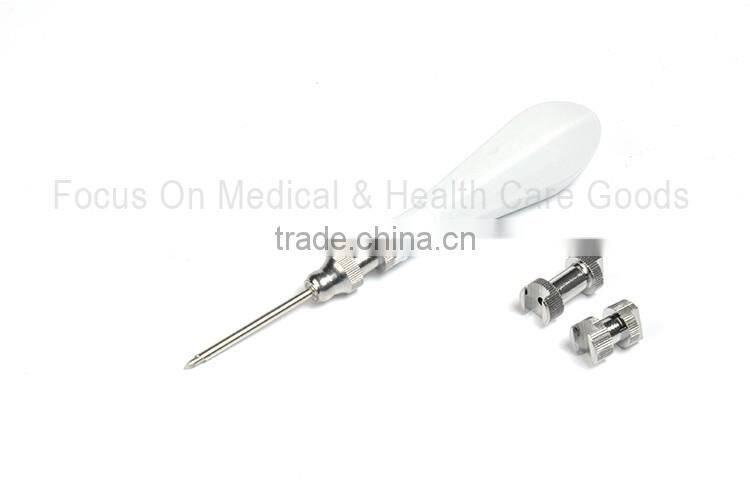

Bone Marrow Biopsy Needle
Soft tissue biopsy needle is consist of handle,needle tubing, protective casing and stylet.
specification |
Remarks |
11G×80mm |
Needle point and Length can be customized |
13G×90mm | |
11G×90mm | |
13G×80mm |
Product features:
- It’s easy to structure, manufacture, use and promote.The needle is new efficient and safe surgical biopsy with using medical polymer and stainless steel.
- Biopsy and surgical instruments
Suction-Type Bone Marrow Biopsy Needle
Scope of application:
It’s used for human bone puncture, scrape bone ,aspiration marrow

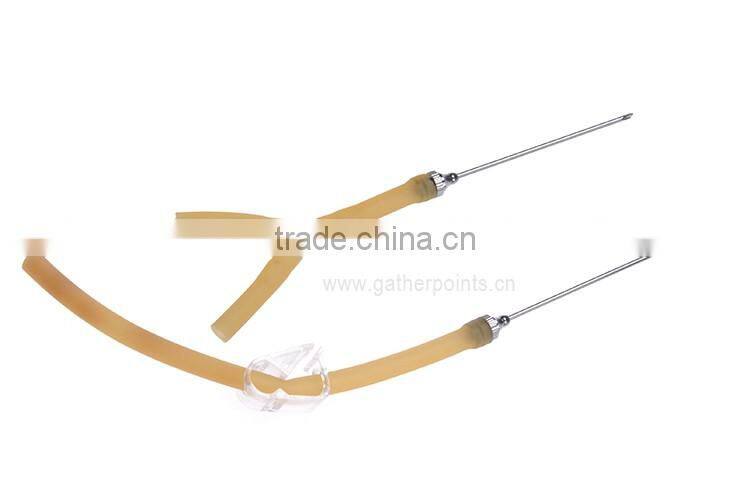

Thoracic Puncture Needle
Scope of application:
1.Having a effect on puncture exhaust and drainage of pus for human pleural in clinic.
Specification:
Type: Ⅰ Ⅱ
Size: (18G),(17G),(16G),(15G)
Product features:
1. Imported austenitic stainless steel pipe with natural latex rubber hose manufacturing.
2.The puncture needle has a good feeling with excellent toughness and good rigidity.
3.The cavity of needle is clean, the blade profile is symmetrical and sharp.
4.The use of intercepting clip makes it’s more convenient, safe and effective in the clinical application.

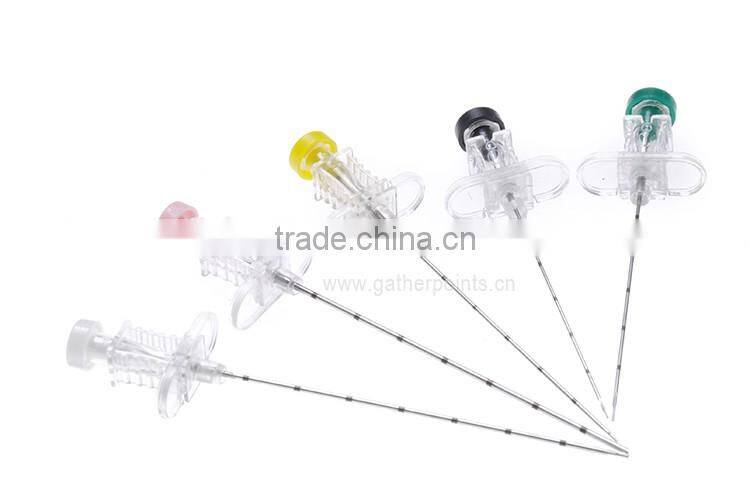

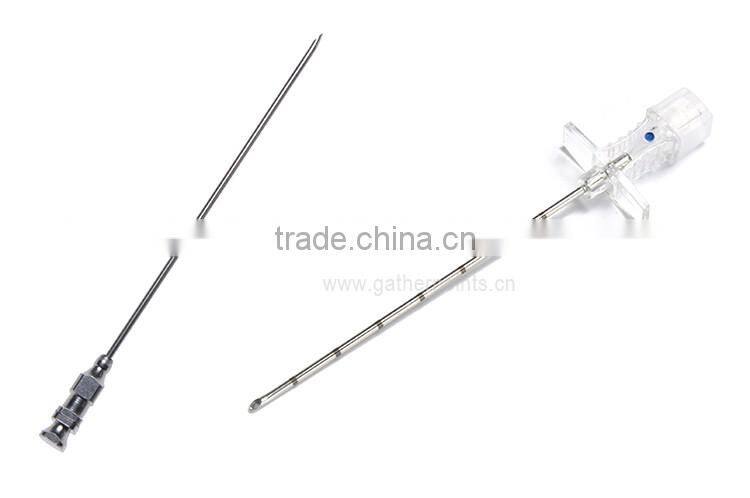

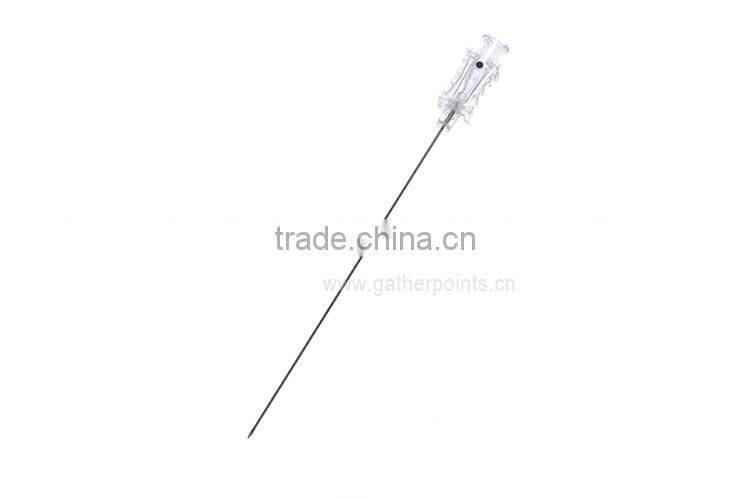

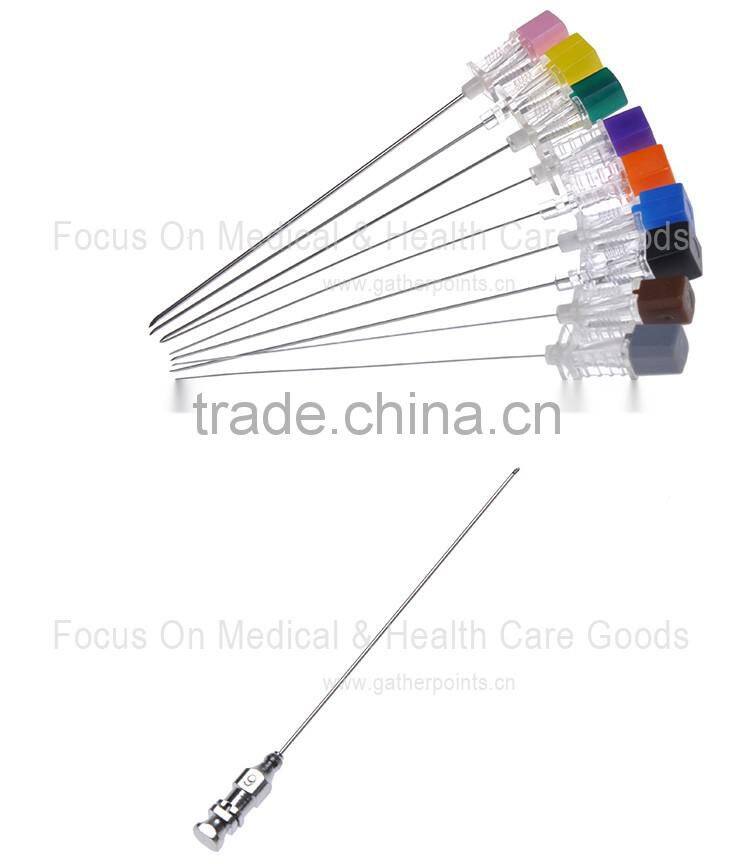

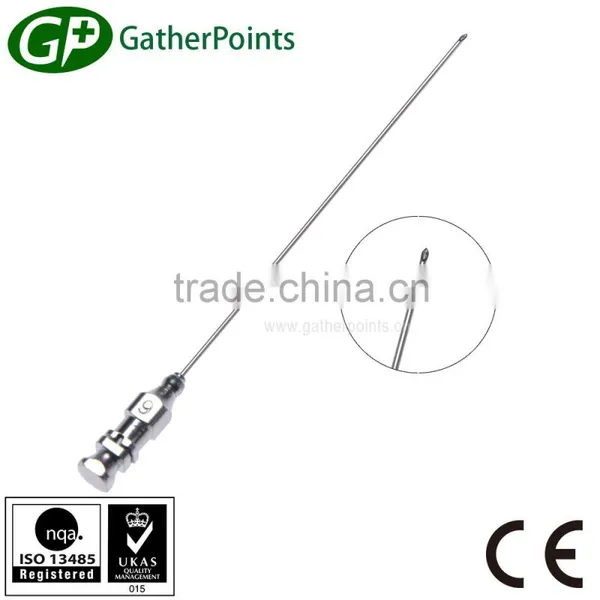

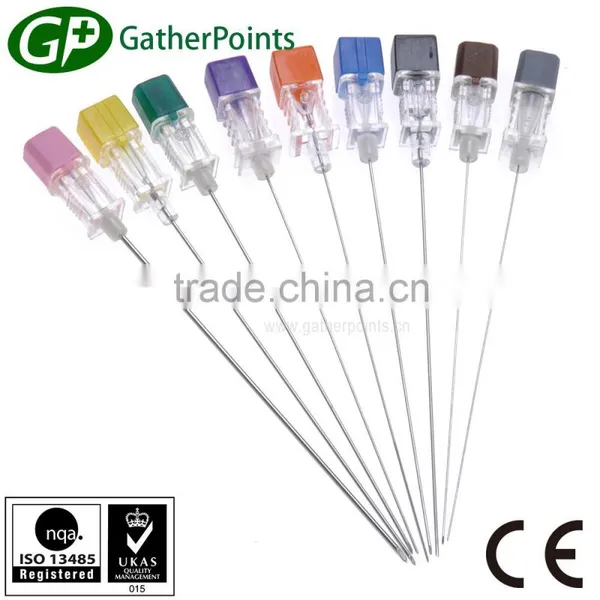

Disposable & Metal Lumbar Puncture Needle
Scope of application:
- It's suitable for human body of subarachnoid block to do puncture and injection medicine .
- puncturing is suitable for people of all age groups.
Product features:
- It's superior maneuverable to puncture levels clearly,and it also can be stable to puncture the part.
- Transparent needle base can look the spinal fluid backflow clearly.
- Needle tubing and lining core are processed by special material.they have a strong resilience and it is not easy to be bend and broken.
- Needle base adopts the design of easy handle and make it convenient to insert and pull out.The design of needle point prevents to puncture excessively and it also can reduce the pain of patient.
- Needle body do grinding processing after ultrasonic emulsification , the needle of pipe is clean and smooth and the lining core is very unimpeded.
- Syringes and needles after a process forming, both have strong cohesion, the lining core adopts special technology ,then the stability of lining core is better.
Metal & Disposable Epidural Needles
Scope of application:
- Apply to do puncture and injection medicine for the human body epidural nerve block.
- Puncturing is suitable for people of all age groups.
Product features:
- It's superior maneuverable to puncture levels clearly,and it also can be stable to puncture the part.
- The needle tick mark is clear,it can accurately grasp the depth of puncture.
- Through the special processing, the needle is with moderate rigidity and toughness.It makes operation more smooth. fingers can clearly feel and confirm the site of puncture when aggregate the appropriate resistance.
- Needle body do grinding processing after ultrasonic emulsification , the needle of pipe is clean and smooth and the lining core is very unimpeded.
- According to the clinical application of requirement, tip of blade Angle have a precise design.It's more convenient for catheter to insert and pull out , improving the safety of operation.
- Syringes and needles after a process forming, both have strong cohesion. In order to without falling off , It changes the traditional viscose process.
- One-off double-layer packaging, inner bag packing can ensure keep sterile state with the using of open

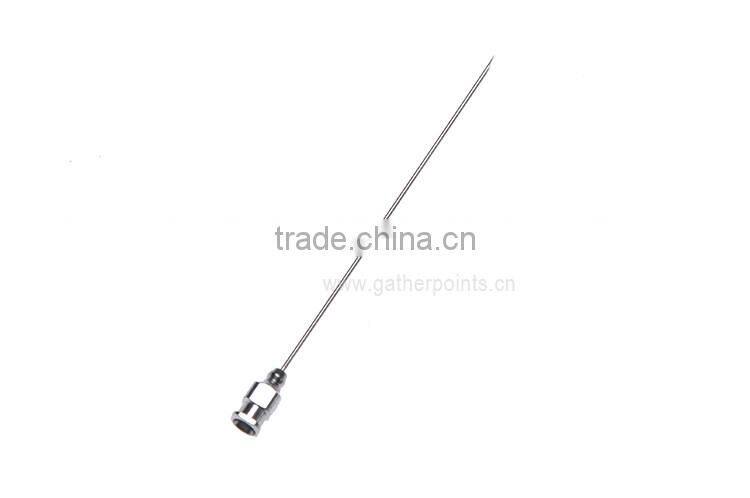

Metal Injection Needle
Scope of application:
local anesthesia or subcutaneous injection.
Specification:
Size:0.4~1.6mm
Length:20~300mm
Any specification can be customized.
Product features:
- Fully automatic grinding machine polished blade, which guarantees its good sharpness.
- The needle is made of austenitic 304 stainless steel 304 to ensure the good rigidity, toughness and corrosion resistance.

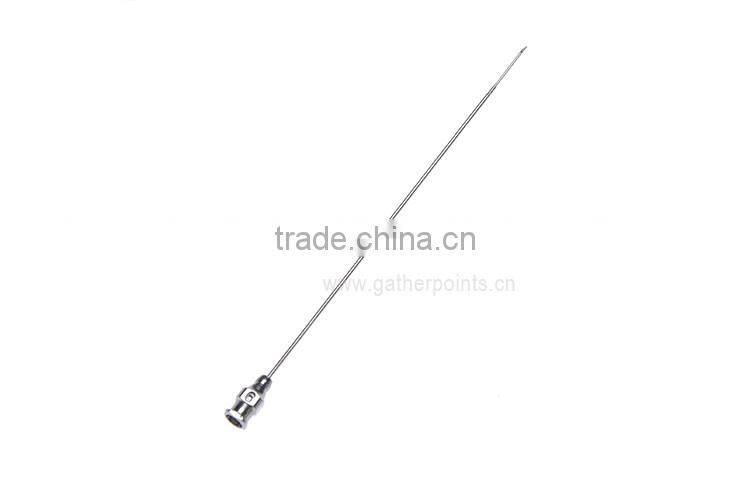

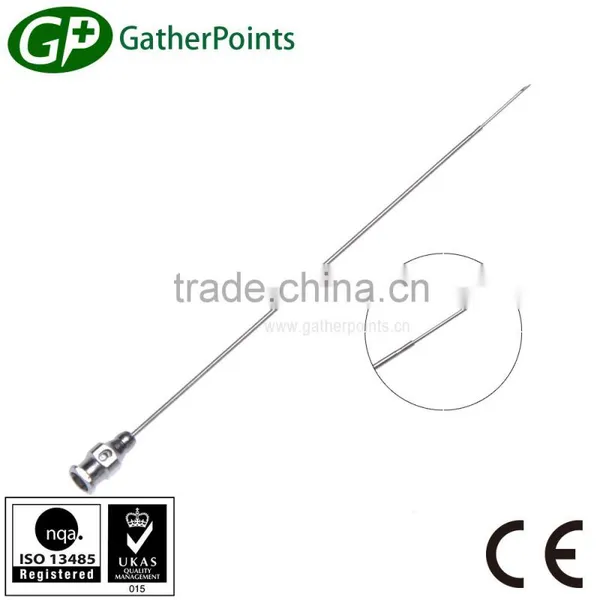

Tonsil Puncture Needle
Scope of application:
1. Tonsil puncture needle is used topuncture tonsil by E.N.T. department
Specification:
23G(straight),23G(bent)
Product features:
1.The product consists of two parts,needle tube and needle seat.
2.Needle tube is made of medical grade stainless steel .Unlike conventional puncture needle,the needle puncture tube is welded together by two different diameter of needle to ensure the depth of puncture.
3.Needle tail with 6:10 0 standard luer syringe, can connect with standard syringe, generally length is between 80-100 mm.
4.According to different application requirements, the needle can be divided into straight type and bent type.
Palate Sinus Puncture Needle
Scope of application:
1.palate sinus puncture needle is designed for the palatine sinus puncture.
Product features;
1.The product consists of two parts, needle tube and needle core.
Needle tube is made of medical grade stainless steel. It has a good strength to puncture for the needle tube matches with needle core closely.Needle needle tail with 6:10 0 standard luer syringe , can connect with the standard syringe .And the length of the needle is generally between 80-120 mm.
Disposable Embedded Wire Needle
Scope of application:
- Stimulated the collaterals by acupuncture with needle and medicine to balance between Yin and Yang, harmonize air and blood, adjust the viscera,so that achieving the purpose of treating diseases.It opens a convenient door to acupoint catgut embedding therapy and it’s safe and effective.
- This product is suitable for cosmetic weight loss, facial paralysis, disc herniation.
- The needle consists of needle tube, stylet, needle seat,stylet seat and protecting jacket. Needle tubeand stylet are made of 0Cr18Ni11Ti or GB18457-2001 austenitic stainless steel . Needle seat,stylet seat and protecting jacket are made of GB15593-1995 vinyon.
Specification:
16G-21G,25G (customized)
Product features:
- The sharp tip and good bevel edge to reduce the pain of patients.
- Using ethylene oxide sterilization processing, It can effectively prevent the cross infection in the process of treatment.
Remarks:
- It’s disposable use and ethylene oxide sterilization.
- Sterilization is valid for two years.
- Damage packing is strictly prohibited to use.
- It has better use in musclar layer.If head and limbs with muscle thinner can be buried between the subcutaneous tissue and muscle layer.Then the part with plump muscle can be buried into musclar layer. Do not expose the thread end outside of the skin.
- According to the different parts, grasping the depth, don't hurt viscera, large blood vessels and nerves , lest causing dysfunction and pain.

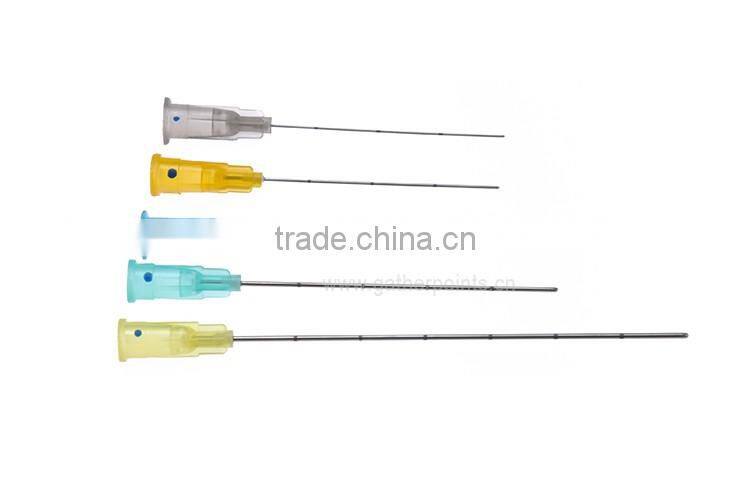

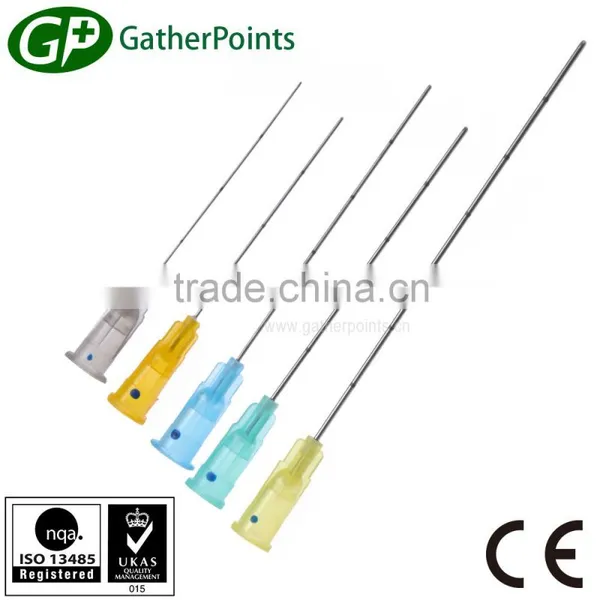

Disposable Scale Blunt Needle
Specification:
- 20G×70mm,21G×50mm,22G×38mm,25G×38mm,25G×50mm ,27G×38mm,27G×50mm
- Special size can be customized.
Product features:
- Comparing with other needles,blunt needle with round tip is more secure. With the side opening, medium injection is more even and effectof injection is better.
- Two types of needle tube:One is needle tube with scale,the other is needle tube without scale.
- Needle with scale can better grasp the part of injection for doctor.
- Blunt needle is disposable use after sterilization,it can prevent cross infection to ensure safety.

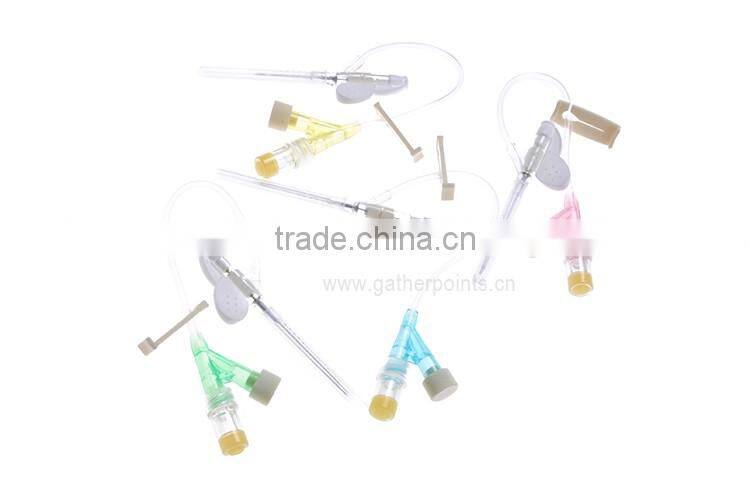

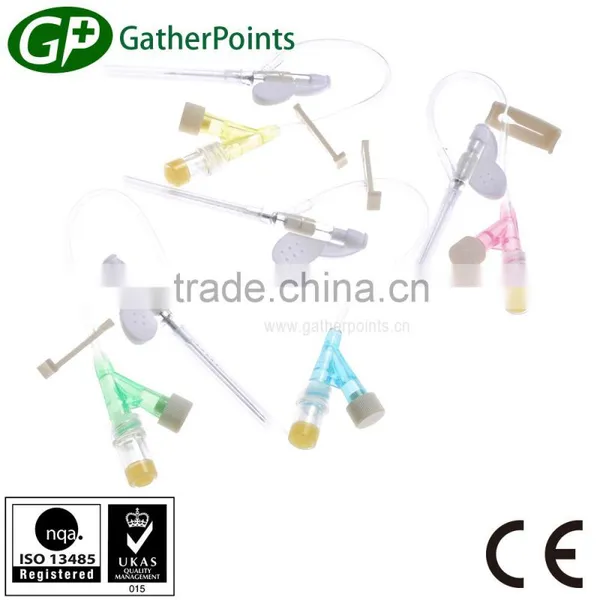

Diopsable Intravenous I.V.Catheter
Scope of application:
1.It used to do intravenous infusion for indwelling patients in clinic.
Specification:
Number |
Colour |
size of Y type |
size of Z type |
01 |
Yellow |
Y24G×19-19 |
Z24G×19-19 |
02 |
Blue |
Y22G×19-30 |
Z 22G×19-30 |
03 |
Blue |
Y22G×25-30 |
Z 22G×25-30 |
04 |
Pink |
Y20G×29-52 |
Z 20G×29-52 |
05 |
Green |
Y18G×29-80 |
Z 18G×29-80 |
Product features:
- The material (FEP,TPU )of catheter chooses from Japan ,it’s qualitative soft and good histocompatibility.It’s more unhindered,secure and comfortable with smooth apex and special lubrication layer of body for patients in the indwelling process.
- I.V.Catheter stems from Japan with the special design of double inclined plane back. Its characteristic is:sharp, small damage to the skin and the wound is healing fast.
- Paper of package choose high-tech materials with good dialytic functions (the United States dupont),it will make epoxy ethane dialyze out from the packaging in a very short period of time, so that ensure the safety of the medical staff and patients.
- The range is 0.2-0.4mm between the roots of needle and catheter tip,so the rate of puncture success is high and blood return quickly.
- The independent design and development of automatic test equipment, can better guarantee the quality of product.
Disposable Nerve Block Puncture Needle
Specification:
20G/25G can be customized as contract)
Product features:
1. The needle mainly consists of hollow needle with a handle and soft extensible tube with a needle, length of needle body is 9 cm (customizable).
2.When using it, socket the soft tube on the cannular export, then puncture the human body where needs to heal,finally inject liquid within the cylinder.
3. Compared with the existing technology, it is easy to operate, master,fix and grasp the depth of needle. The feel is good, and it can significantly improve the safety of operation.
4. Be not subject to any other such as shake solution within the cylinder,
It’s convenient to inject continuously. it’s easy to observe effect of puncture and timely to detect the unexpected process and deal with it .

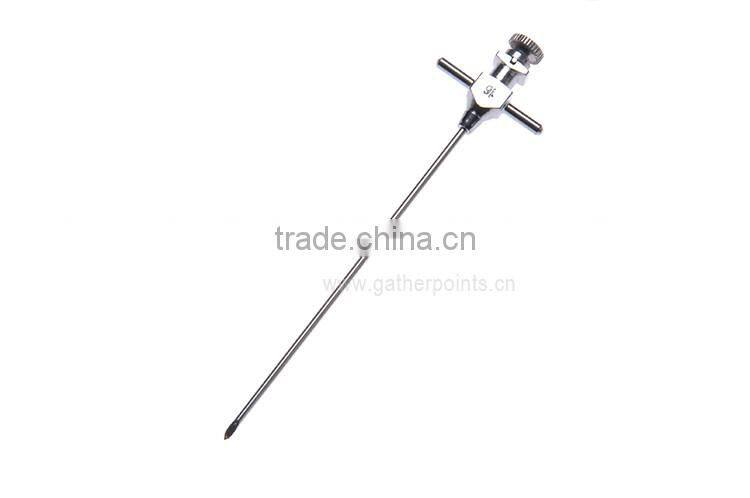

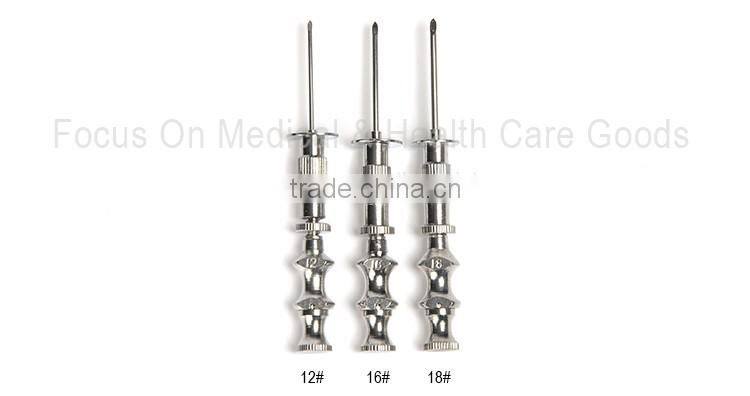

Stainless Steel Puncture Needle
Scope of application:
Be used to bone puncture sampling by clinical institutions for all age groups.
Specification:
Specification |
Needle external diameter |
Adjustable range |
Remarks |
18G |
1.2*30mm |
0mm~20mm |
Needle point and Length can be customized |
16G |
1.6*30mm |
0mm~20mm |
|
15G |
1.8*30mm |
0mm~20mm |
Product features:
- It punctures level clearly, rotates nut easily and grasps depth well.
- It is impossible to rust through a process of choosing good material,taking exquisite technology and polishing smooth body.
- The plating coating without falling out is uniform, smooth and bright .
- The needle tubing is made of medical austenitic stainless steel with moderate rigidity and toughness ensures that the process of piercing is very smooth.
- With the surface treatment, which can effectively prevent bent edge and crack, improving the rate of repeated utilization.
One pcs / individually wrapped ,Ten pcs inner box,One hundred/carton.
- Custom design available,OEM/ODM welcomed !
- Will give you feedback in 3 hours
If you are interest in our products or our services, please contact us, you will get the best reliable products in reasonable prices.

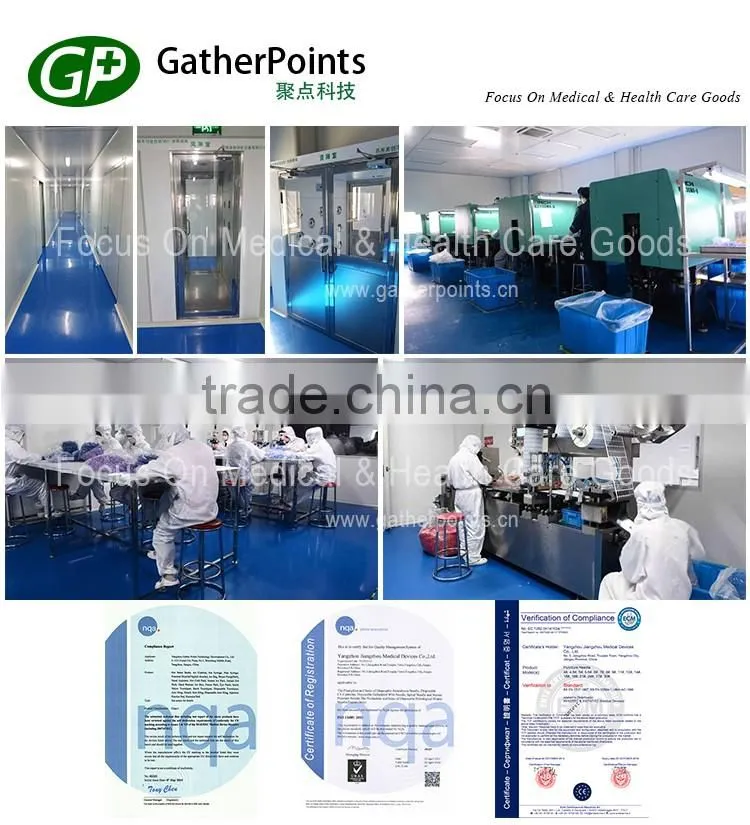

Yangzhou GatherPoints Technology Development Co.,Ltd is located in Yangzhou city, Jiangsu province, Only 80 km from Nanjin, The traffic is very convenient, The field position is superior.
My company was founded in 2006, is a professional trade company of medical items and first aid products, Products mainly include all kinds of medical rubber goods,First aid etc. In 2014 the company moved in new building, New workshop environment is good, and sale team is becoming strong,We believe that good environment to produce high quality products.
Company products are exported to France, Germany, South Korea, Japan, The United States, Hong Kong, Taiwan and other countries and regions, Well received by customers at home and abroad, The company wholeheartedly welcome Chinese and foreign customers, The people from all walks of life came to discuss cooperation!
