24 Core Single Mode Fiber Optic Cable

Name: 24 Core Single Mode Fiber Optic Cable
Brand: BIWIN
SKU: 113984937
Availability: InStock

US$ 580 - 600 MOQ: 2 Kilometers

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

BIWIN

Model Number:

GCYFTY-144B1.3

Sichuan Biwin Imp-Exp Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

According to your requirements

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name BIWIN

Model Number GCYFTY-144B1.3

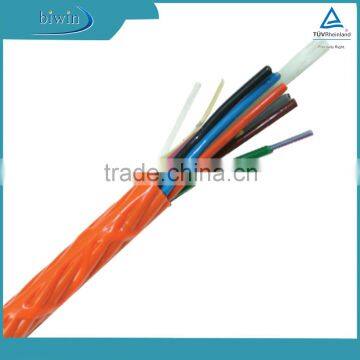

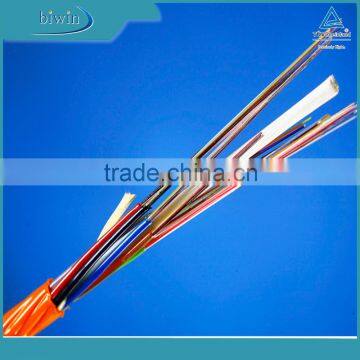

24 Core Single Mode Fiber Optic Cable

Product Description

1.Features and Benefits

2.Standards

Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.

Optical fibre …..ITU-T G.652D,IEC 60794-2-50

Optical cable ….IEC 60794-5,IEC 60794-1-2

3.Technical Parameter

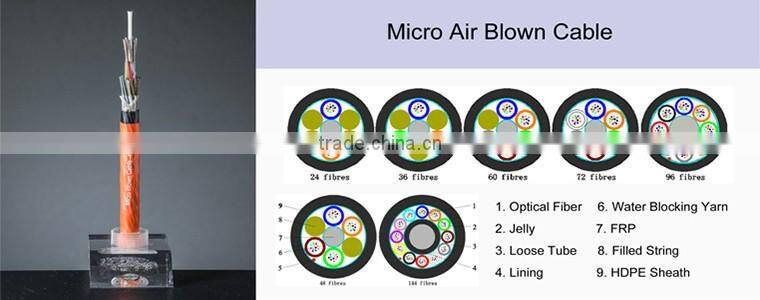

Cable Type		Layer Cable
Fiber Count		24	36	48	60	72	96	144 (A)	144 (B)
Number of loose tube		2	3	4	5	6	8	12	6
Number of filled string		4	3	2	1	0	0	0	0
Number of fiber/tube		12							24
Water blocking method	FRP or PE Lining	Water Blocking yarn
	Cable Core	Water Blocking Kevlar
Thickness of HDPE sheath		Nominal: 0.50mm, Average: 0.45mm, Minimum: 0.40mm
Overall Diameter		5.6±0.1 mm					6.4±0.1 mm	8.2±0.1 mm	8.0±0.1 mm
Weight		27 kg/km					40 kg/km	65 kg/km	55 kg/km
Max. Tensile Strength		500N					1000N	1200N	1000N
Max. Crushing Resistance		800N/100mm
Min. Bending radius -Static		12 outer Φ
Min. Bending radius -Dynamic		20 outer Φ
Cable Fiber Attenuation (G.652D)		0.35dB/km max @1310nm 0.22dB/km max @1550nm
Temperature range		Storage -40~+70°C; Installation -10~+40°C; Operation -40~+70°C

4.Testing parameter

Packaging & Shipping

Our Services

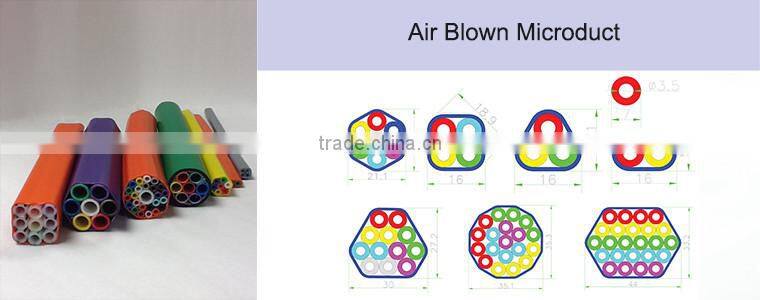

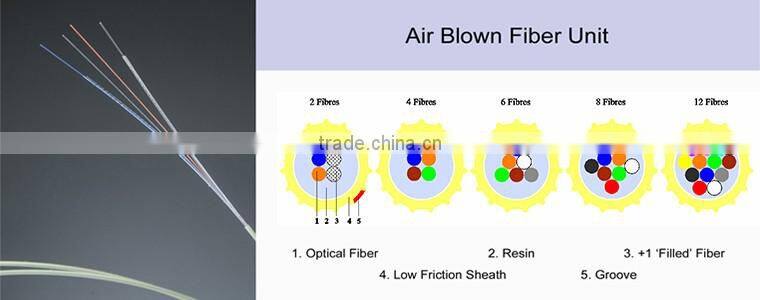

Our factory is one of the best manufacture of fiber optic cable in China and has 20 years manufacturing and selling experience. Air blown fiber solutions, OPGW, ADSS and FTTH accessories are our competitive products.
We will take reasonable price and excellent quality, quick delivery and quality to meet customer demand.
