Product Description

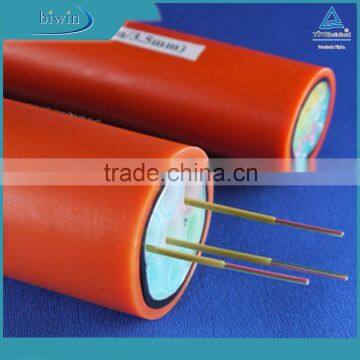

1/2/4/7/12/19/24 way 5/3.5mm LSZH HDPE Bundle Duct

A.Features and Benefits :

1. Quite thin wall thickness of outer sheathing
2 The assembled micro ducts are separeated from each other, so they can be relatvely displaced so as         for micorduct selection and connection
3. HDPE microduct applied to be placed into the cement pipe, steel pipe, PVC pipe for existing pipe expansion.

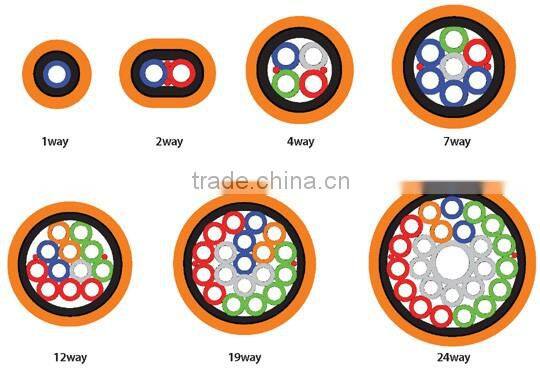

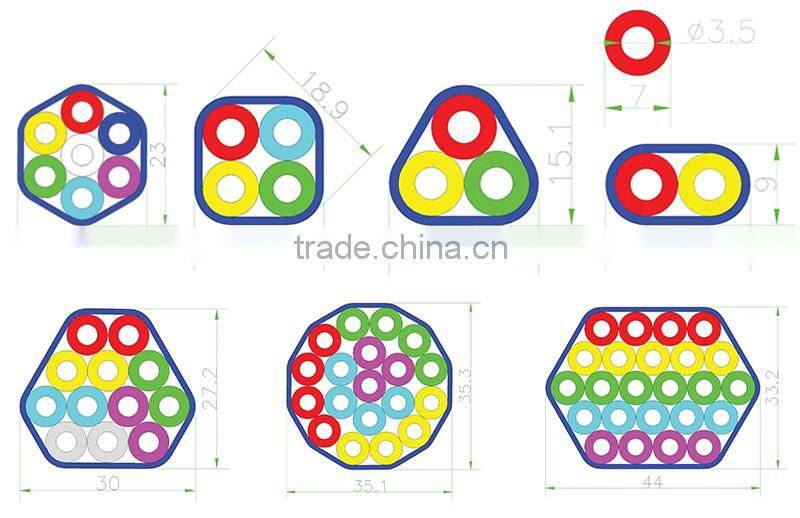

B.Technical Parameters :

5/3.5 series

5/3.5mm
OD (mm)
Max Tension Strength (N)
Weight (Kg/Km)
Min. Bend Radius (mm)
Crush (N)
1Way
8.4
440
45
120
1000
2Way
8.3*13.4
700
72
120
1000
4Way
15.5
1050
112
200
1000
7Way
18.4
1500
158
240
1000
12Way
24.4
2300
238
310
1000
19Way
28.4
3200
329
360
1000
24Way
33.4
4200
435
500
1000

10/8 series

10/8mm
OD (mm)
Max Tension Strength (N)
Weight (Kg/Km)
Min. Bend Radius (mm)
Crush (N)
1Way
13.4
850
91
180
1000
2Way
13.4*23.4
1500
155
180
1000
4Way
27.4
2500
250
370
1000
7Way
33.4
3900
368
500
1000

12/10 series

12/10mm
OD (mm)
Max Tension Strength (N)
Weight (Kg/Km)
Min. Bend Radius (mm)
Crush (N)
1Way
15.4
1060
108
200
1000
2Way
15.4*27.4
1800
180
200
1000
4Way
32.4
3000
295
500
1000
7Way
39.4
4500
435
600
1000
Detailed Images

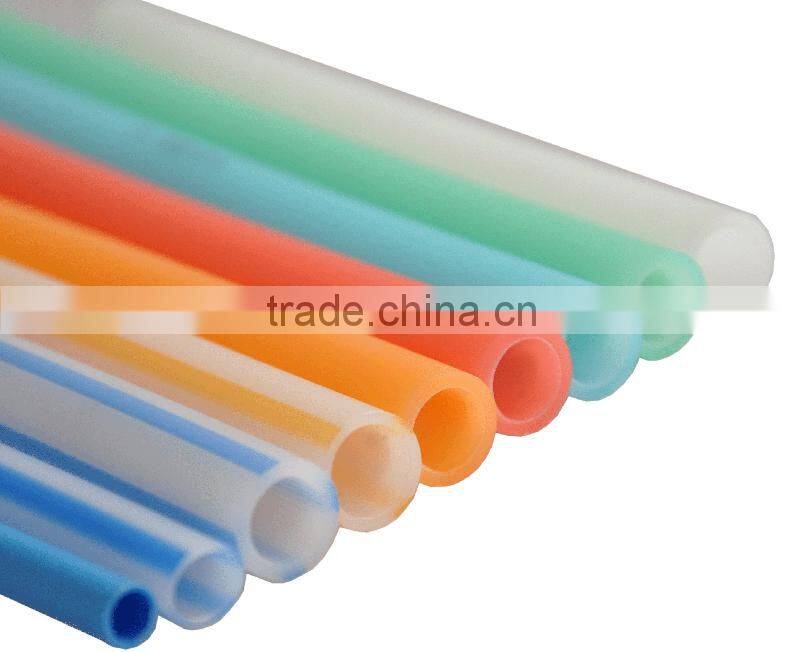

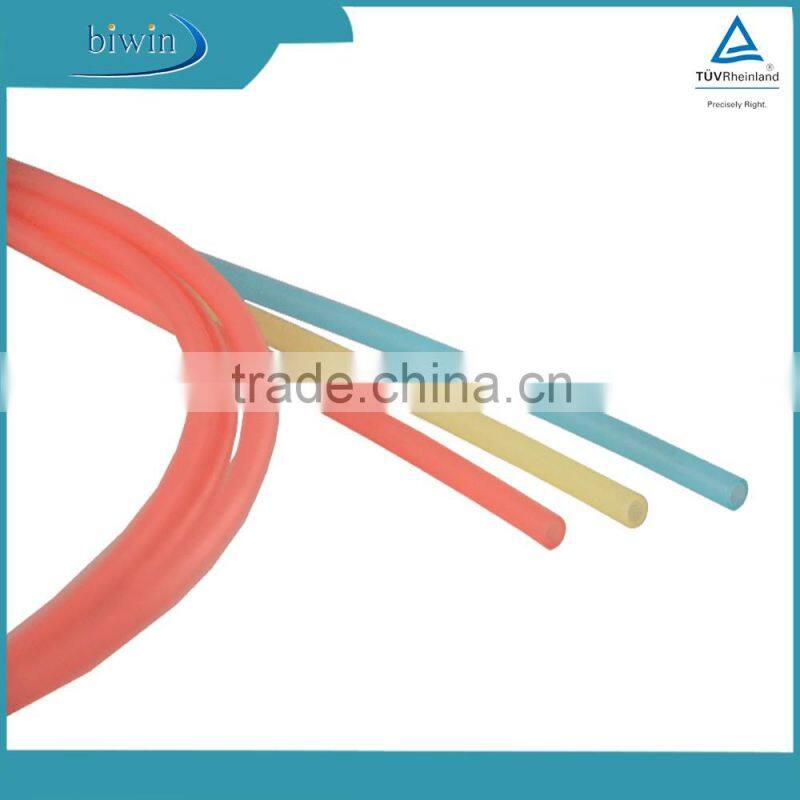

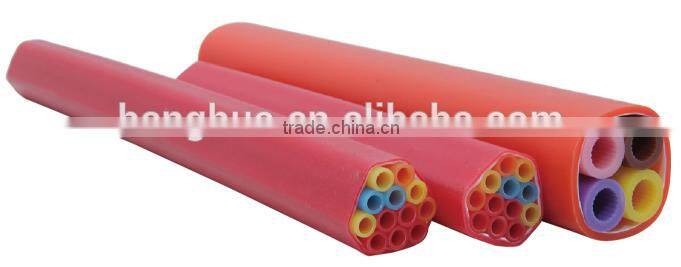

Thin skin microduct (LSZH/HDPE)

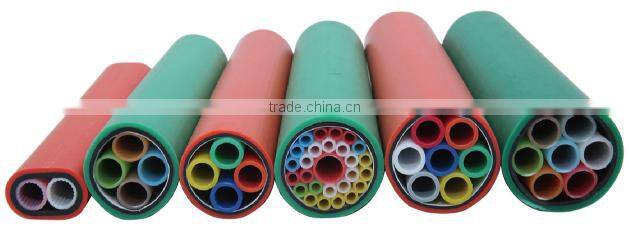

Direct burial microduct (LSZH/HDPE)

Related Products

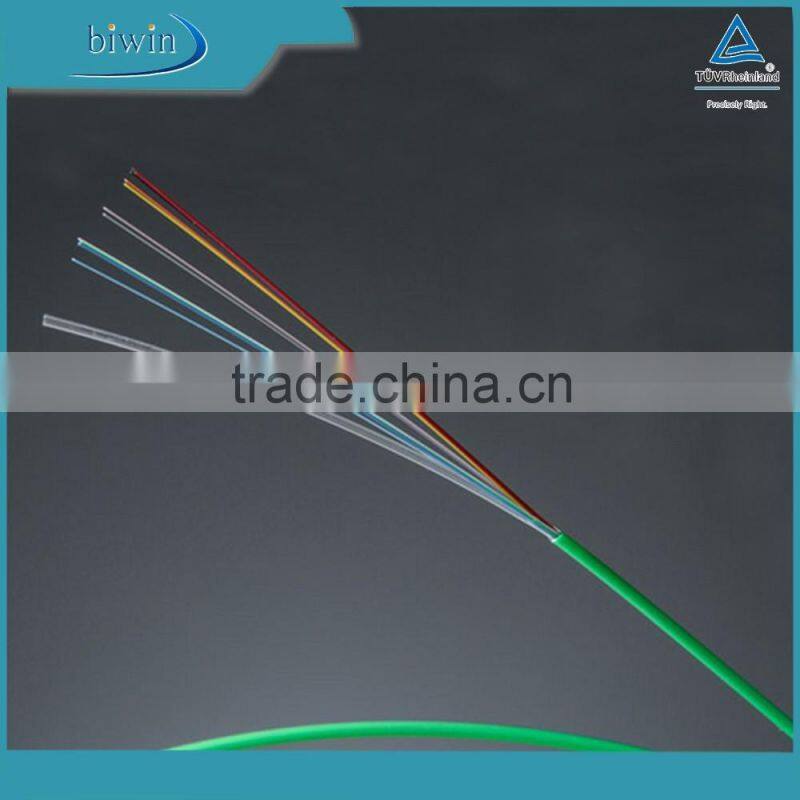

Air blown fiber unit

2~12 fibers

1.16mm~1.65mm

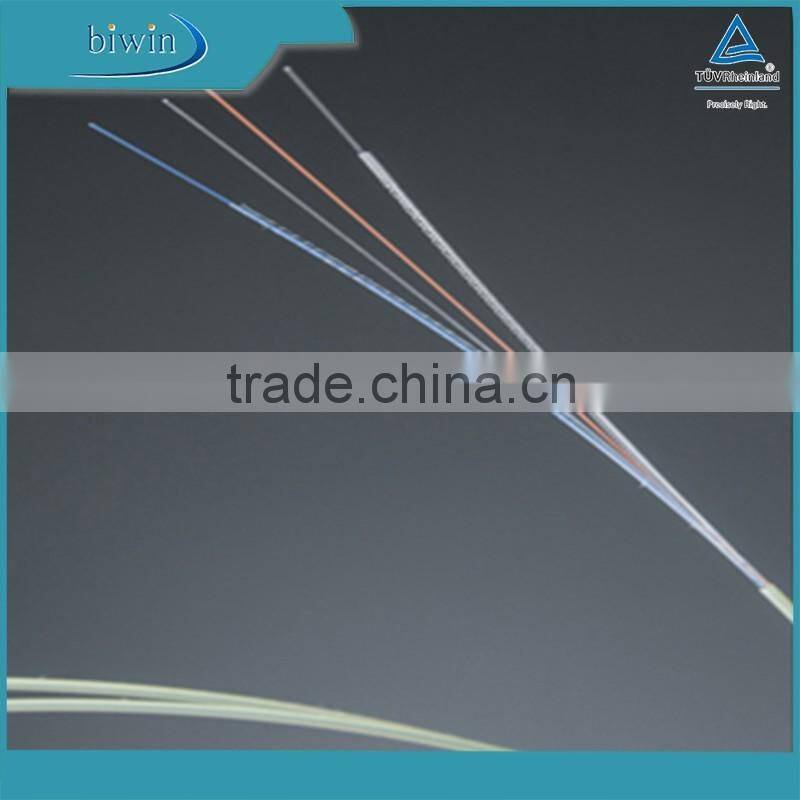

Super mini air blown fiber optic cable

2~24 fibers

2.2mm~2.8mm

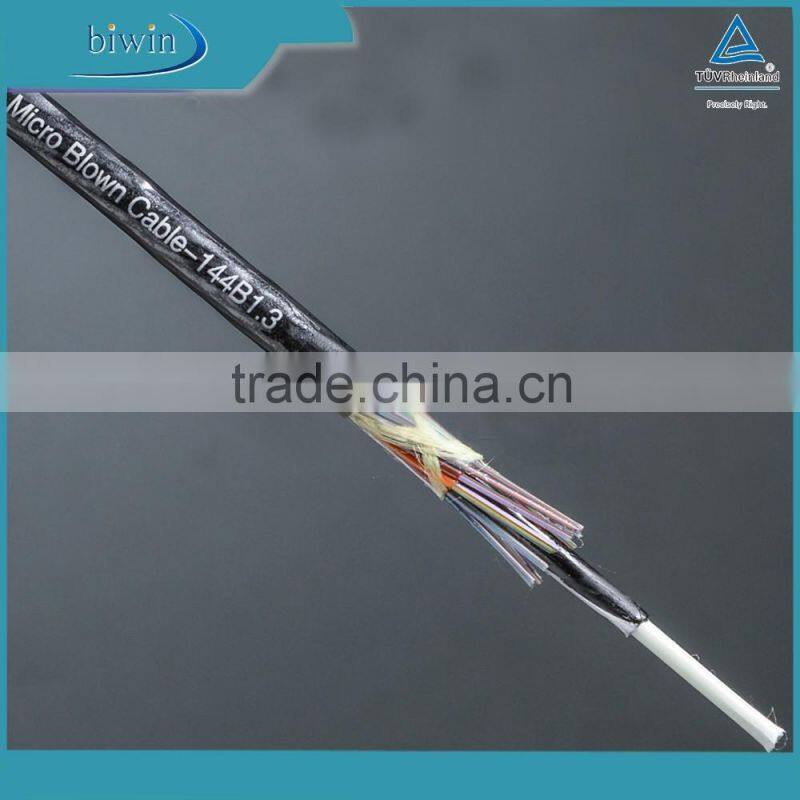

Micro air blown fiber optic cable

24~288 fibers

5.6mm~8.1mm

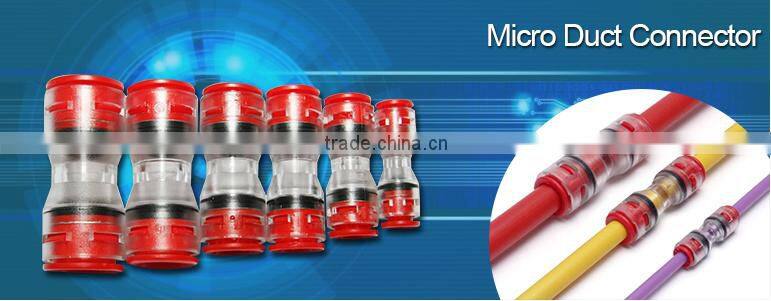

Microduct connector and end cup.

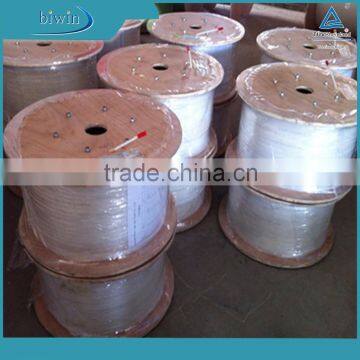

Packing & Delivery
Certifications
FAQ

Q: Can we get HDPE microduct samples?

---Yes, we can provide free samples for you.

Q: What is your acceptable payment term?

---We accept the payment terms as follow: L/C, T/T, Paypal, Western&Union, and so on.

Q: How to contact you?

---Just send message to me include your detailed requirements.
