Help CenterStainless Fuel and Oil Tank Semi Trailer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
DOT
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or wuhan CHINA ANY PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Alloy Oil Tanker FUEL TRUCK 21 CbmNegotiableMOQ: 1 Set -
36000L Aluminum Alloy Tank Truck for Fuel DeliveryNegotiableMOQ: 1 Set
-
Aluminum Tanker Capacity in 42.4CBMNegotiableMOQ: 1 Set
-
Auman Three Axle Oil Tank TruckNegotiableMOQ: 1 Set
-
58500L LPG SemitrailerUS$ 1 - 1,000,000MOQ: 1 Set
Type
Semi-Trailer
Material
Steel
Certification
DOT
Size
11000*2500*3900
Max Payload
40000
Place of Origin
Hubei, China
Brand Name
Qixing
Model Number
QXFTS007
Stainless Fuel and Oil Tank Semi Trailer
Product Description
1. For transporting liquid oil, fuel, diesel, water and so on
2. Tank body is made by stainless steel
3. Polishing treatment
4. OEM is available
5, Stainless Steel Body
2. Tank body is made by stainless steel
3. Polishing treatment
4. OEM is available
5, Stainless Steel Body
| Name | stainless fuel tank trailer | |
| 1 | Total size | L11000 X W2500 X H3900 |
| 2 | Tare weight | 5500 KGS+5%expension |
| 3 | Payload | 40 ton |
| 4 | Tank body | Volume:5 CBM to 60 CBM,shell thick 5mm,end thick 5mm baffles 4mm,compartments make according to customer's requirement.Top access Steel ladder and foldable handrail; walkway with anti-slip material coveringthe complete length of the tank; |
| 5 | Painting | Polishing or Sandblasting,anti-corrosion primer,polyurethane,color according to customer's requirement |
| 6 | Axles | 10T,13T,14T,15T,16T,20T BPW,FUWA,LITAI..are available for choose |
| 7 | Wheel rim | Zhengxing brand |
| 8 | Tyre | Double star,hancook,double corn,yellowsea and all kinds of brand are available for choose |
| 9 | Leaf spring | 90widthx10 piecesx13thickness |
| 10 | Kingpin | 3.5"(90#) |
| 11 | Landing legs | Two speed landing gear |
| 12 | Suspension | Jupiter machanical type |
| 13 | Air tank | Jupiter brand |
| 14 | Brake chamber | T3030 and T30 are available |
| 15 | Air connector | one units reliable local brand stander air connector |
| 16 | Relay valve | WABCO valve |
| 17 | 7-pin socket | one unit of 24V 7-pin socket |
| 18 | Lamb | tail lamb with turn signal,brake light including a whole set of stander lamb |
| 19 | Cable | one set of stander cable |
| 20 | Tool box |
|
| 21 | Fire extiguishers | 2 units; |

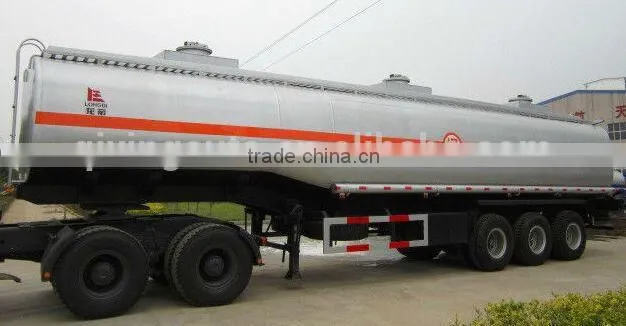

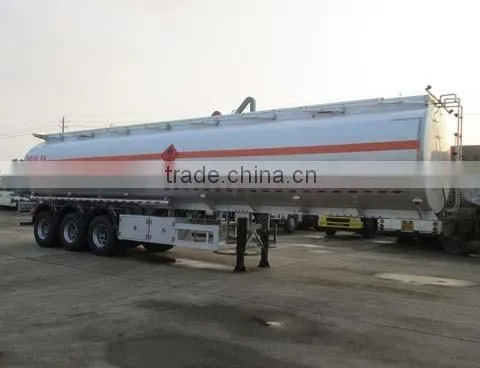

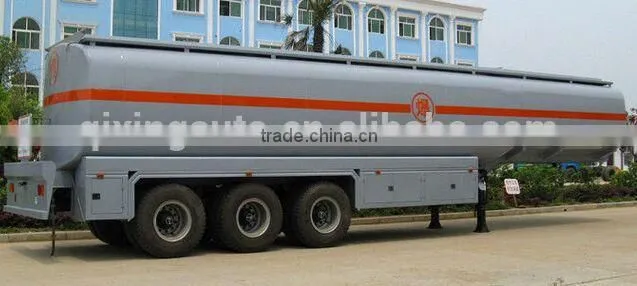

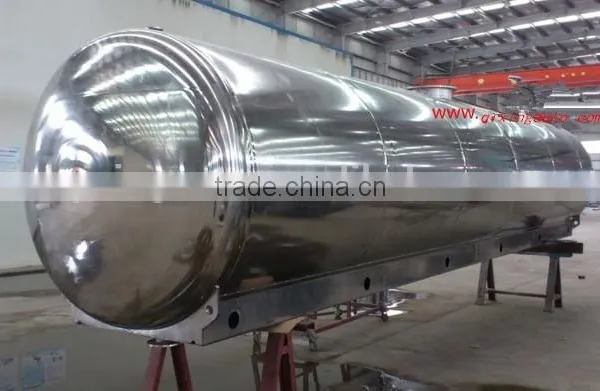

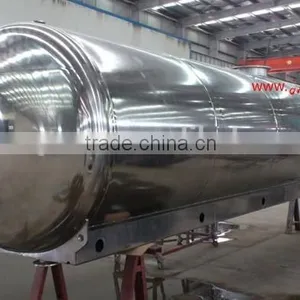

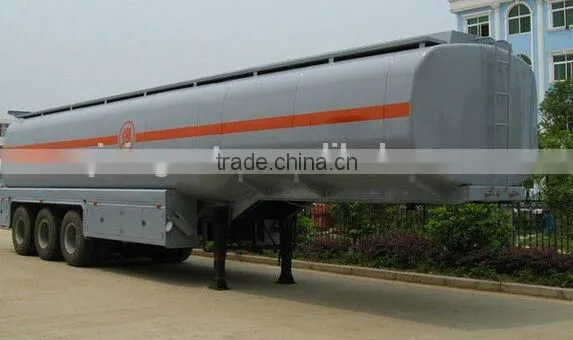

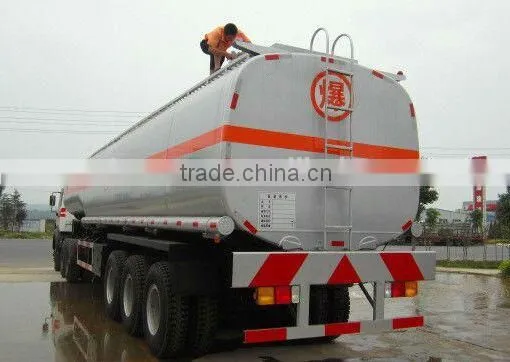

Pictures for reference
