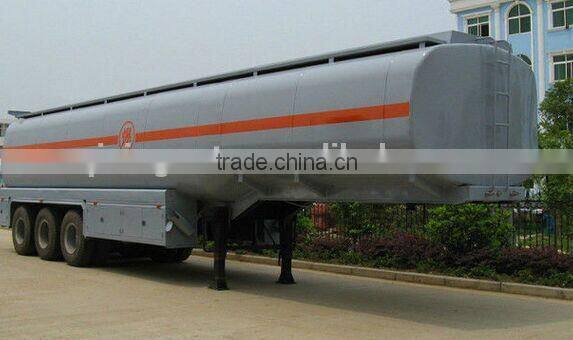

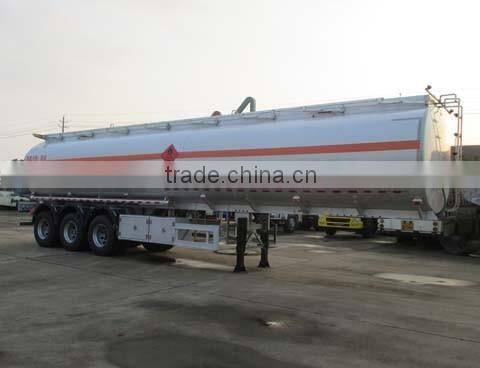

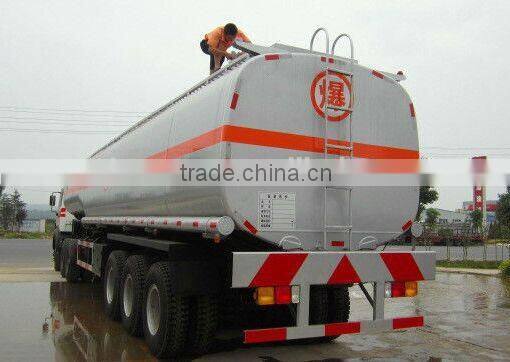

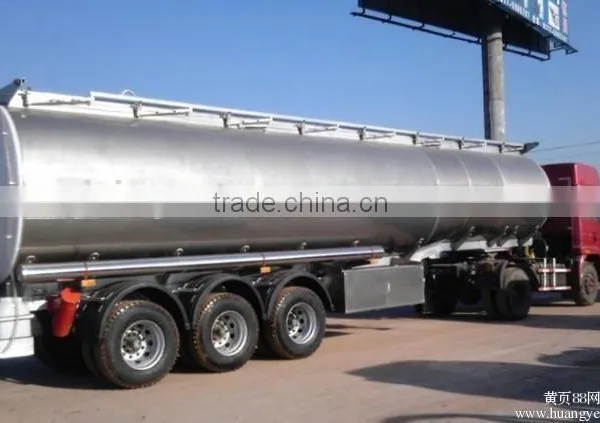

2/3 axles 30000L flammable liquid transport stainless steel tank truck trailer for sale
Product Specifications | |
Model Number | QXFTS001 |
Total Weight | 39950 kg |
Rated Load | 28500 kg |
Tare Weight | 9000 kg |
Volume | 44.6M3 |

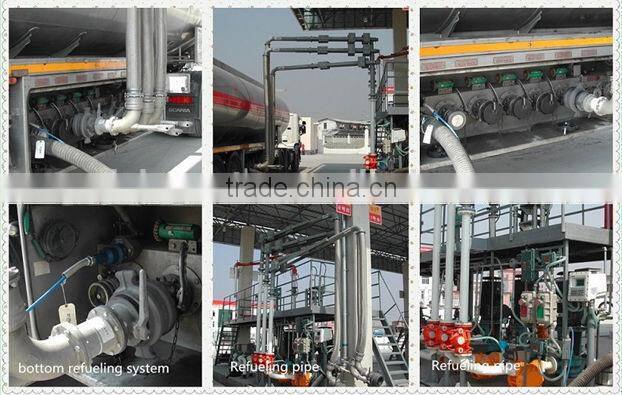

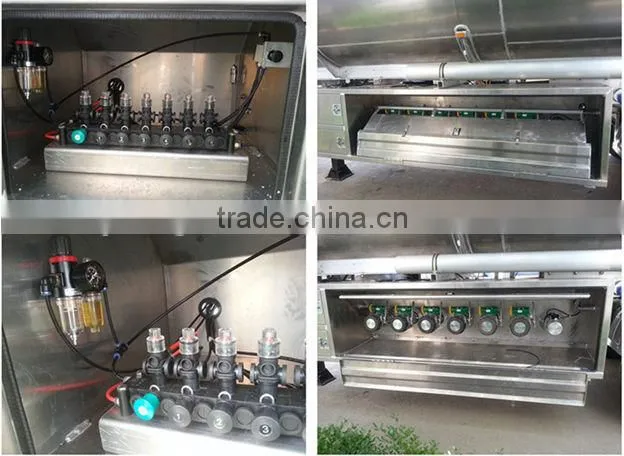

Compartment No & Valve | 5 isolated compartments with loading and unloading valves, loading and unloading pump. |
Wheel Base | 7000+1310+1310 (mm) |
Tyre Specifications | 11.00R20-18PR 12R22.5-18PR |
No. Of the Tyres | 12 |
Axle Brand | FUWA (BPW optional) |
No. Of the Axles | 3 |
Axle-load | 24000 kg |
King Pin | 50#/90# |
Landing Leg | 28ton |
Pieces of leaf-spring | 10(8) |
Suspension | independent stamping steel rigid suspension (or air suspension) |
Departure Angle | 14.8 |
Front/Rear Overhang | 2080 mm |
Outside Dimensions (mm) | 13000X2500X3800 (LxWxH) |
(Interior )Tank shell Dimensions (mm) | 12800×2500×2300 (LxWxH) |
Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded |
Brake System | Dual line braking system /ABS |
Brake Air Chamber | Six double chamber |
Electrical | 24V 7 ways(7 wire harness) |
Usage | The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products |
Characteristics | 1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing materials to reduce the transport costs. 2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded. 3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. 4. The diesel engine (air compressor unit), providing compressed air. |

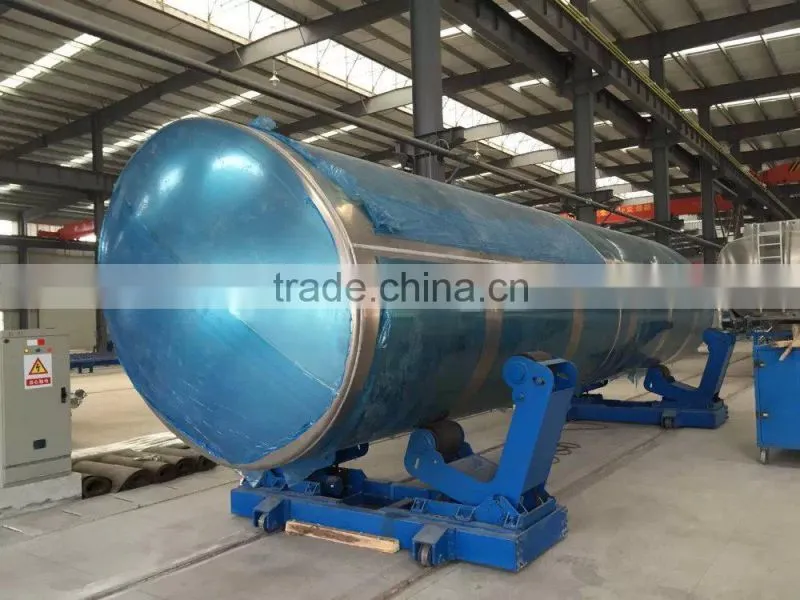

Other Specifications | The sealing head of the tank shell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight. The internal part can be single layer or dual layer |
Pictures for reference
