Yanan Water-cooled Cummins Diesel Genset of 800KW

Name: Yanan Water-cooled Cummins Diesel Genset of 800KW
Brand: Cummins
SKU: 113949629
Availability: InStock

US$ 1 - 55,555 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Cummins

Model Number:

KTA38-G5

Fujian Fuan Mindong Yanan Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Cummins

Model Number KTA38-G5

Output Type AC Three Phase

Speed 1500

Frequency 50

Rated Power 1000KVA

Rated Voltage 400/230

Specifications

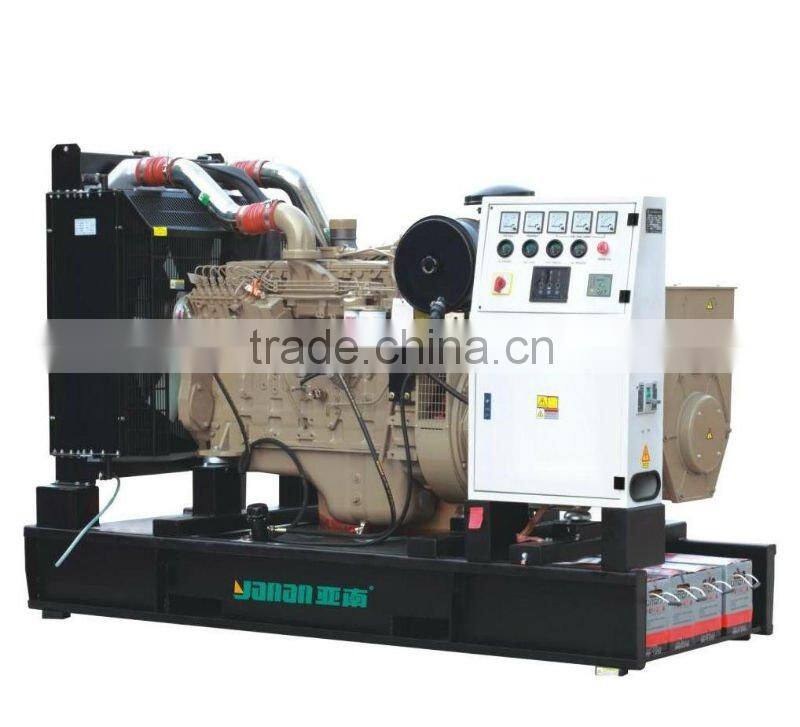

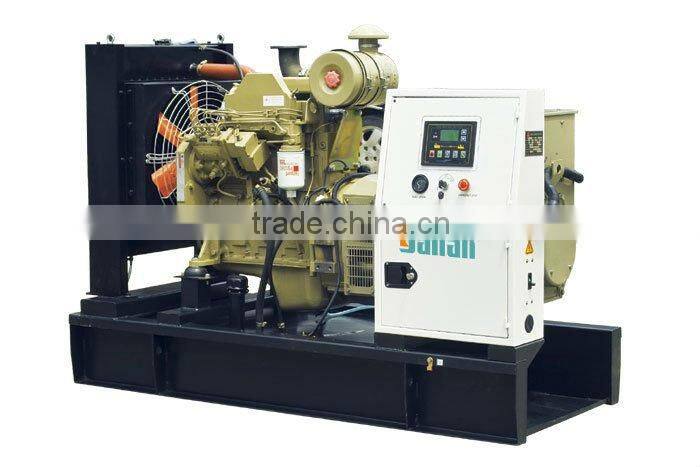

Yanan water-cooled Cummins diesel Genset of 800KW
1:engine model:KTA38-G5
2:output power:8.1-2200kva
3:UL CE ISO

MAIN SPECIFICATIONS OF GENERATOR SETS
Diesel Generator Set
GENSET MODEL NOS.	C800
Manufacturer	Yanan
Rated speed / frequency	1500RPM/50Hz
Continuous outputKW/KVA	800/1000
Standby outputKW/KVA	880/1100
Voltage, Phase and wire	400V/230V, 3 Phase and 4 Wires
Rated power factor	0.8lagging
Dimension(LWH) (mm)	467017502250
Weight(kg)	9250
Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40)
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Diesel Engine	Cummins
DIESEL ENGINE MODEL	KTA38-G5 (Cummins)
Engine Characters	Water-cooled, 4 cylinders in line, 4-cycle, direct injection
The engine outputKW	880
Aspiration	Turbocharged & Aftercooled
Bore(mm)×Stroke (mm)	159*159
Compression ration	13.9:1
Fuel consumption(L/H)	202(100% load)
Displacement(Liters)	38
Exhaust air flow(m3/min)	1825
Compress air flow(m3/min)	72.8
Exhaust gas flow(m3/min)	198.4
Exhaust highest temperature	513
Lub-oil pan capacity(L)	135
Cooling water capacity(L)	202
Voltage for start(V)	24
Instrument for adjusting speed	Electronically
Noise level(A)	≤85dBA(open)
ALTERNATOR
ALTERNATOR MODEL	SLG404J
Excitation	Brushless
Insulation class	H
Protection class	IP22
Efficiency	94.70%
Voltage adjust range	±0.5% with 4% engine governing
Steady state voltage regulation	≤±1%
Voltage Control	AVR
