Yanan Soundproof Water-cooled Diesel Generator Set Power for Cummins

Name: Yanan Soundproof Water-cooled Diesel Generator Set Power for Cummins
Brand: Cummins
SKU: 113949643

US$ 1 - 55,555 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Cummins

Model Number:

NTA855-G`

Fujian Fuan Mindong Yanan Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Cummins

Model Number NTA855-G`

Output Type AC Three Phase

Speed 1500

Frequency 50

Rated Power 313KVA/250KW

Rated Voltage 400/230

Specifications

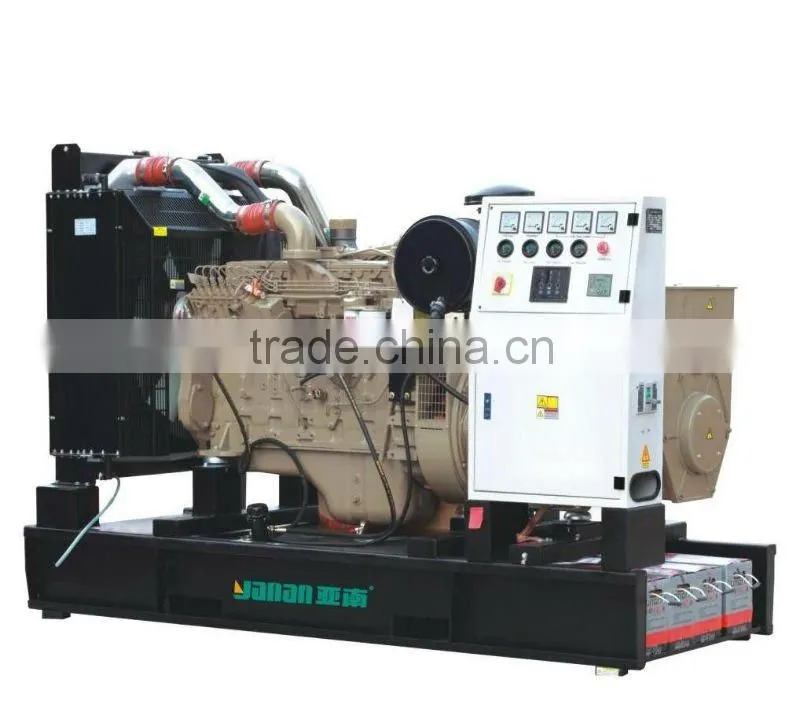

Yanan soundproof water-cooled diesel generator set
1:engine model:NTA855-G1B
2:output power:8.1-2200kva
3:UL CE ISO CCE

MAIN SPECIFICATIONS OF GENERATOR SETS
Diesel Generator Set
GENSET MODEL NOS.	C275
Manufacturer	Yanan
Rated speed / frequency	1800RPM/60Hz
Continuous outputKW/KVA	275/344
Standby outputKW/KVA	300/375
Voltage, Phase and wire	400V/230V, 3 Phase and 4 Wires
Rated power factor	0.8lagging
Dimension(LWH) (mm)	355011201600
Weight(kg)	3400
Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40)
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Diesel Engine	Cummins
DIESEL ENGINE MODEL	NTA855-G1 (Cummins)
Engine Characters	Water-cooled, 4 cylinders in line, 4-cycle, direct injection
The engine outputKW	283
Aspiration	Turbocharged & Aftercooler
Bore(mm)×Stroke (mm)	140*152
Compression ration	15:01
Fuel consumption(L/H)	63.3
Displacement(Liters)	14
Exhaust air flow(m3/min)	490
Compress air flow(m3/min)	25.1
Exhaust gas flow(m3/min)	67.1
Exhaust highest temperature	485
Lub-oil pan capacity(L)	36.7
Cooling water capacity(L)	51
Voltage for start(V)	24
Instrument for adjusting speed	Electronically
Noise level(A)	≤85dBA(open)

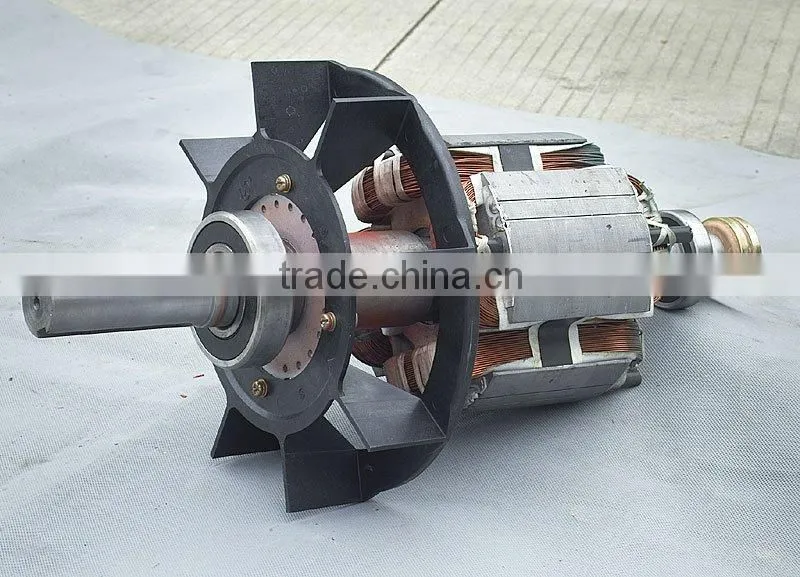

ALTERNATOR
ALTERNATOR MODEL	SLG314E
Excitation	Brushless
Insulation class	H
Protection class	IP22
Efficiency	93.00%
Voltage adjust range	±1% with 4% engine governing
Steady state voltage regulation	≤±1%
Voltage Control	AVR
