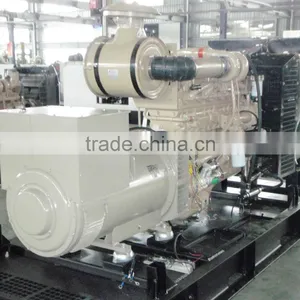

Cummins 6BTAA5.9-G2 Generator Set
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Cummins
Model Number:
6BTAA5.9-G2
Speed:
1500
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yanan Water-cooled Open-type Powered by Deutz Diesel Generator SetUS$ 1 - 9,999MOQ: 1 Piece -
Yanan Water-cooled Powered by Deutz Diesel Generator SetUS$ 1 - 9,999MOQ: 1 Piece
-
Soundproof GeneratorsNegotiableMOQ: 4 Sets
-
Deutz Openframe Diesel Generator SetNegotiableMOQ: 1 Set
-
Yanan Water-cooled Cummins Diesel Genset of 800KWUS$ 1 - 55,555MOQ: 1 Set
Brand Name
Cummins
Model Number
6BTAA5.9-G2
Speed
1500
Frequency
50
Rated Power
104kw
Rated Voltage
400/230
Specifications
Cummins generator set| Diesel Generator Set | |
| GENSET MODEL NOS. | C104 |
| Manufacturer | Yanan |
| Rated speed / frequency | 1500RPM/50Hz |
| Continuous outputKW/KVA | 104/130 |
| Standby outputKW/KVA | 114/143 |
| Voltage, Phase and wire | 400V/230V, 3 Phase and 4 Wires |
| Rated power factor | 0.8lagging |
| Dimension(L*W*H) (mm) | 2330*750*1460 |
| Weight(kg) | 1500 |
| Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40) | |
| These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. | |
| Diesel Engine | |
| DIESEL ENGINE MODEL | 6BTAA5.9-G2 (Cummins) |
| Engine Characters | Water-cooled, 4 cylinders in line, 4-cycle, direct injection |
| The engine outputKW | 120 |
| Aspiration | Turbocharge & Aftercooled |
| Bore(mm)×Stroke (mm) | 102X120 |
| Compression ration | 17.5:1 |
| Fuel consumption(L/H) | 26.9(100% load) |
| Displacement(Liters) | 5.9 |
| Exhaust air flow(m3/min) | 96 |
| Compress air flow(m3/min) | 5.63 |
| Exhaust gas flow(m3/min) | 17 |
| Exhaust highest temperature | 541 |
| Lub-oil pan capacity(L) | |
| Cooling water capacity(L) | 17 |
| Voltage for start(V) | 24 |
| Instrument for adjusting speed | Electronically |
| Noise level(A) | ≤85dBA(open) |
| ALTERNATOR | |
| ALTERNATOR MODEL | SLG274E |
| Excitation | Brushless |
| Insulation class | H |
| Protection class | IP22 |
| Efficiency | 91.70% |
| Voltage adjust range | ±1% with 4% engine governing |
| Steady state voltage regulation | ≤±1% |
| Voltage Control | AVR |
