2016 High speed Full Automatic paper cup making machine/cup paper machine/price of paper cup machine in India

paper cups machine

1.description

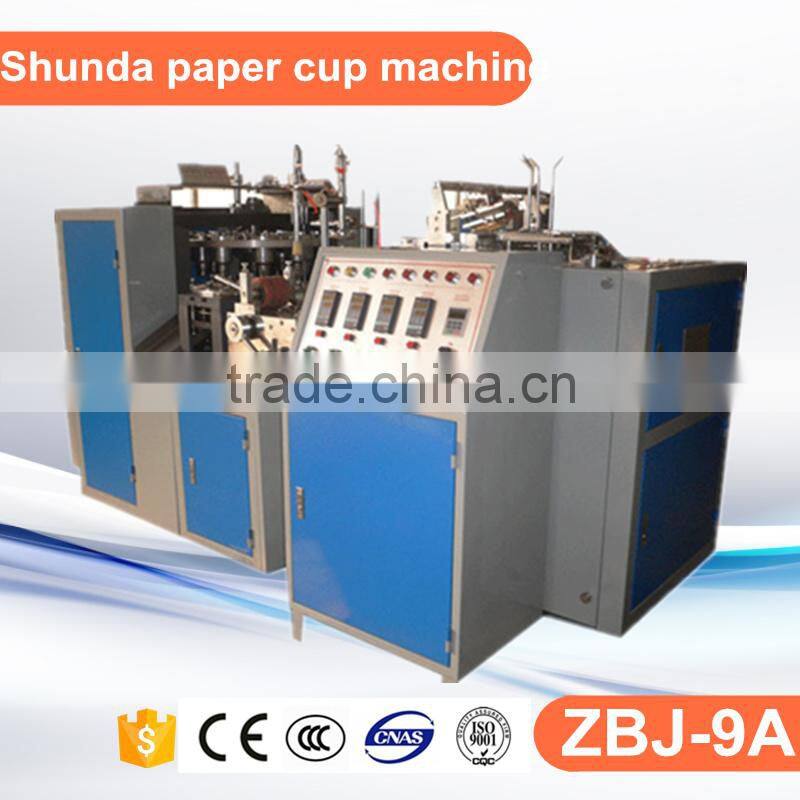

      model ZBJ-9A paper cup  machine price is very competitive,   it is ideal equipment for making hot drinks cup ,  such as coffee cup ,tea cup ,  water cups etc .especially it is popular for making small coffee cup 3oz for algeria market

2.selling points

     1).we use omron ,japan brand for transducer

     2).three range of chains instead of two range chains running

     3).we use gear running  between the three turnplates running  instead of chains.

     4).we use the import beeline gear inside the machine

     5).we use alu material for heaters , this material is more safer ,once the machine stop unormal , the cup inside  can not burning ,  but most factory use iron pipe material , it is easy broken and once machine stop unormal, the cup inside will be burning

3. main technical data

           Production capacity: 45---55 pcs/ min

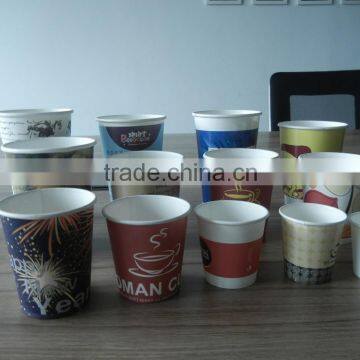

           cup sizes : 2oz---12oz
           paper required : single pe coated paper , paper weight 135gsm--300gsm.

           Container capacities:  a)top diameter: 50—90mm

                                               b)height:45---113mm

                                               c)bottom diameter:35---64mm

                                               d) knurling:4.5---10mm

           air supply requirement : ZBJ-9A no need air compression ,

           total power: 220V or 380V ,50HZ,4.8 KW

           Weight :1500kgs

           Packing size: 2700X1500X1500 mm

4. Machine video

    /watch?v=q7-hlkZHiY8
