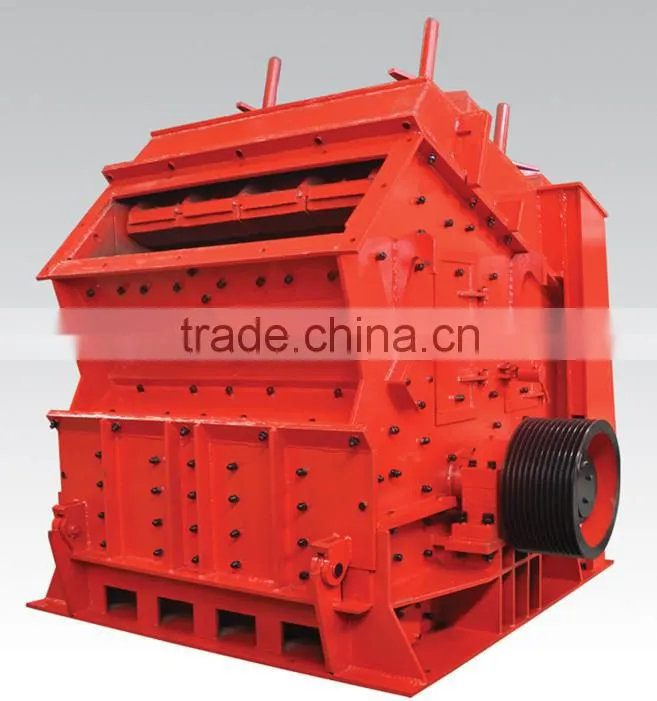

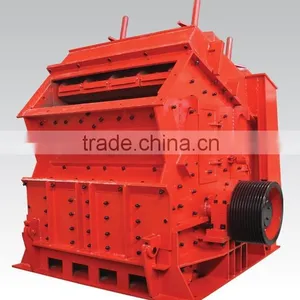

PF1007 Stone Impact Crusher with large crushing ratio for construction engineering

PF Type Impact Crusher

It is widely used in the crush of various ores,expressway, cement, chemical, building and other industries.

Characteristics:

It is applied to the secondary crushing after coarse crusher. It can crush the ore of which compressive strength is not more than 320Mpa. It has such advantages as big processing value, fine discharging material, the finished product without inner crack.

Operating Principle:

In operation, electrical motor of impact crusher drives the rotors to rotate at high speed. And as the hammers were installed on the rotors, so when the raw material was fed into the impact crusher, the rocks or ores will be crushed by the hammers under the impact function of hammers which rotate at high speed. And then the broken rocks were rebounded to the liner plates for secondary crushing. This processing will continue until the required product size is discharged from the discharge outlet of the impact crusher.

Product features:

1. Cubic-shaped final products.

2. Discharge opening is adjustable.

3. High reliability and excellent performance.

4. High quality of wearing parts, such as the high chrome plate hammer and high manganese liner plates.

5. High crushing ratio. impact crusher max. feeding size can be 500mm, while the

discharge opening range is normally 20mm to 60mm.

6. Simple structure and easy maintenance.

Product Parameter:
