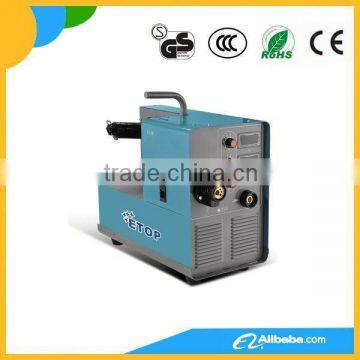

Best MIG inverter arc welding machine 250A
Gas can be used:
- CO2
- Argon
- 80% argon and 20%CO2
1.welding style:gas protection film, flux cored wire solder
2.using:widely used in automobile, motorcycle parts, all soild steel and wood, light steel and other sheet metal, welding area
3.welding material: inverter frequency up to 100 KHz, the conversion efficiency of 85% no-load loss is small
4. precise control system: PWM pulse width modulator, closed loop control system to ensure the machine is stable;
5.excellent welding performance:
(1)self-adjusting ability of the arc welding proccess is stable, little spatter, good weld.
(2)high stability power supply wire, smooth wire
(3)weld pool depth and good resistance to thermal crack resistance, heat deformation
6.excellent reliability:
(1)the key components for the word's top brand-name imported raving thought 3C,CE,ROHS
certification requirements, high reability;
(2)automatic plug-in by panasonic PCBA process to ensure product consistency and accuracy, high stability;
(3)after vibration, aging, high and low voltage, high temperature, high humidity, dust and other detection experiments
plete protection system:
(1) optional wire feeder and power supply integrated or split to meet the needs of different environment, easy to operate
(2) independent body wire device interface foe easy disassembly extension cable.
Technical parameter:
| Item No: | MIG-250 |
| Voltage: | 380V±10% |
| Input Capacity: | 6.1KW |
| Frequency: | 50/60HZ |
| Output voltage: | 15-32V |
| Current Arrange: | 50-250A |
| Duty Cycle: | 60% |
| Efficiency: | 85% |
| Class of Insulation: | F |
| Diameter of welding Wire: | 0.8/1.2 |
| Case protection Degree: | IP21 |
| Wire feed speed(m/min): | 2-15 |
| Weight: | 31 |
| Dimension: | 57X28X52CM |

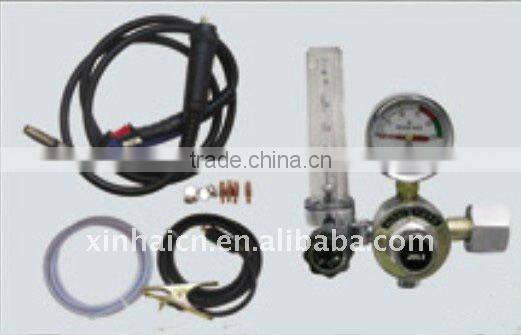

Standard Accessory:

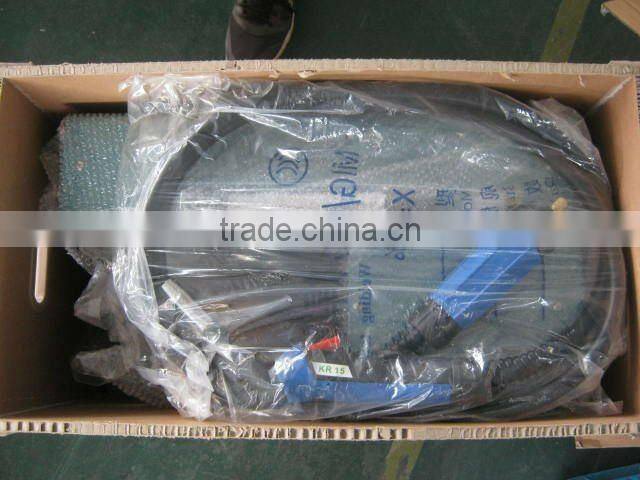

Packing details:
Factory:
Workdshop:
Customers:
