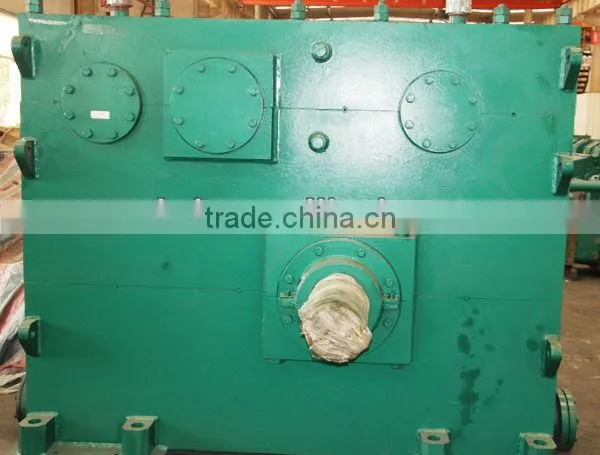

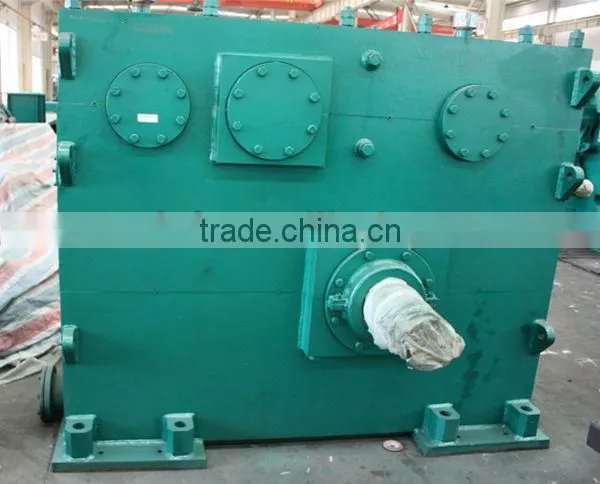

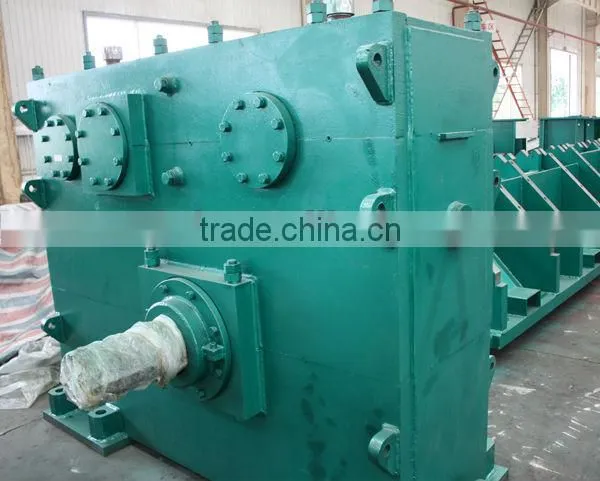

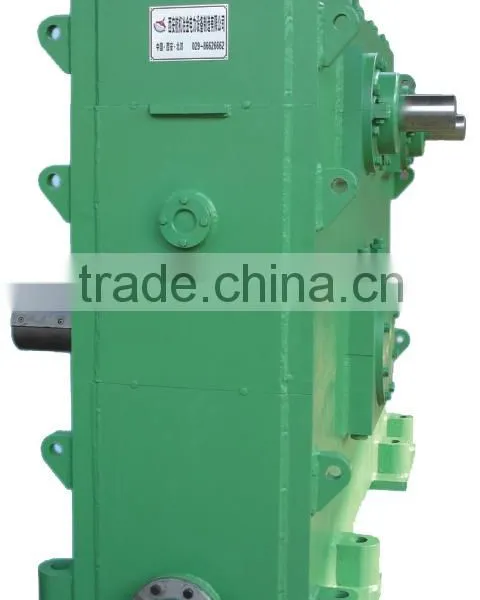

Hangji brand high quality gear box reduction

Composition of speed increasing gearbox

Spare parts of speed increasing gearbox case, support base, big gear, transmission axis, bevel wheel and lubrication system.

Technical characteristics

1, Technical parameter

2,Technical characteristics

Box is melt with thick steel with great quality to reach the intensity that the case required. Case should take stress aging treatment before the produce to reach the stability that required.

Big gears and gear shaft used carbon alloy steel forging blank, after roughing, workpiece need to take ultrasonic flaw detection process to quench. In order to ensure the tooth surface with high hardness, tooth surface need to take carburizing and quenching treatment after semi-finishing .Fine grind of tooth surface to insure the high accuracy, after finishing the production of gear, the balance test is needed, the experience speed is 1500r/min and the balance level is G2.5.

Transmission shaft use the alloy steel forging blank, transmission shaft takes quenched to make sure the intensity and durableness. After the semi- finishing, transmission need to grind to guarantee the accuracy of every workpiece.

When the assemble finished, the no-loading test should be keep 2-4hours, the speed is 1200r/min, the temperature of shaft should not exceed 60°C,the work of gear should be smooth, no hitting noise and concussion, every joint surface should not have oil spill phenomenon.

...
