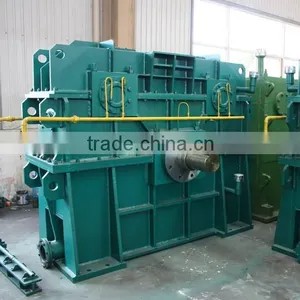

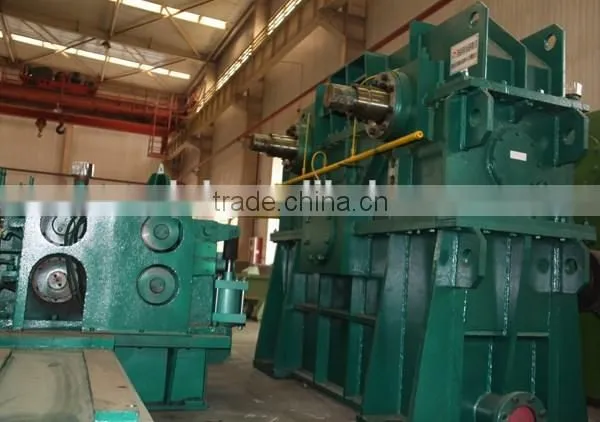

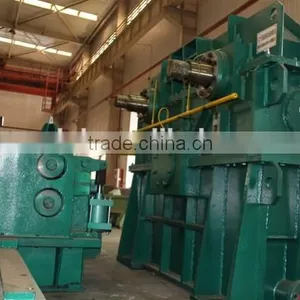

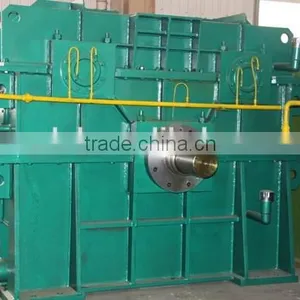

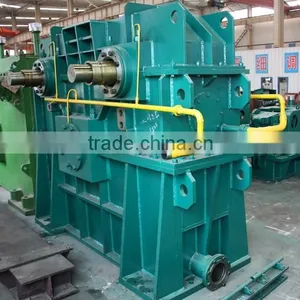

Gear box for steel rolling machine

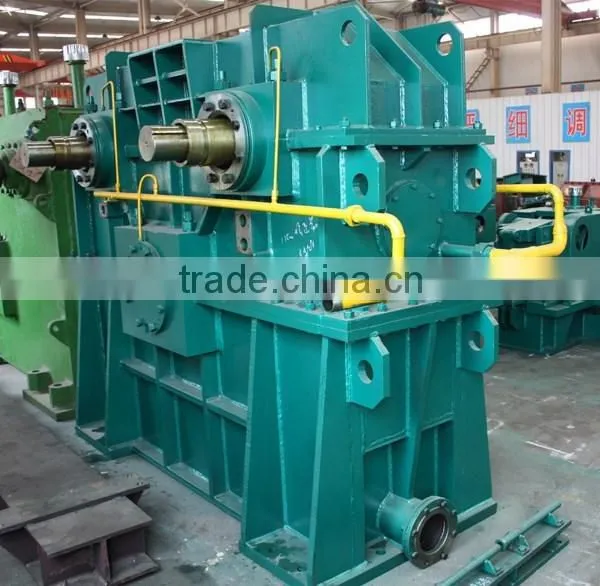

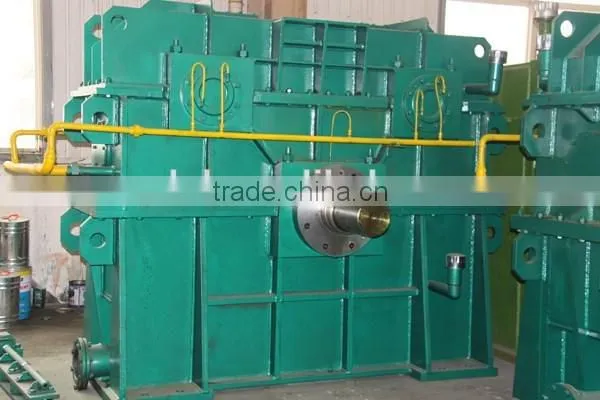

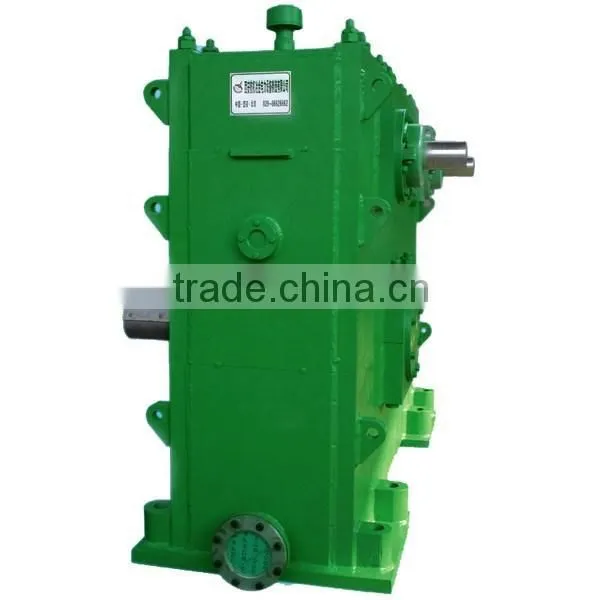

Composition of speed increasing gearbox

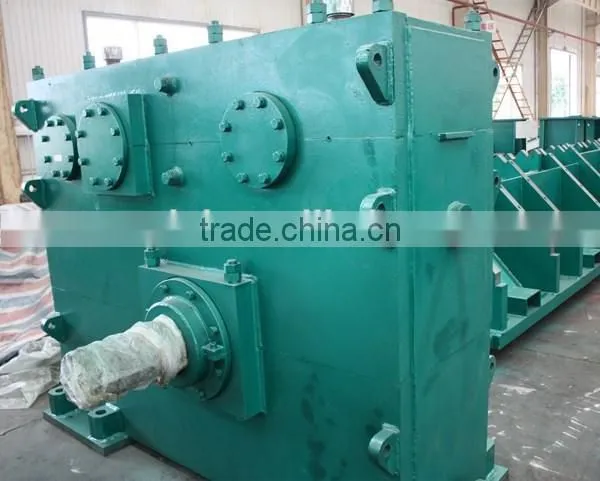

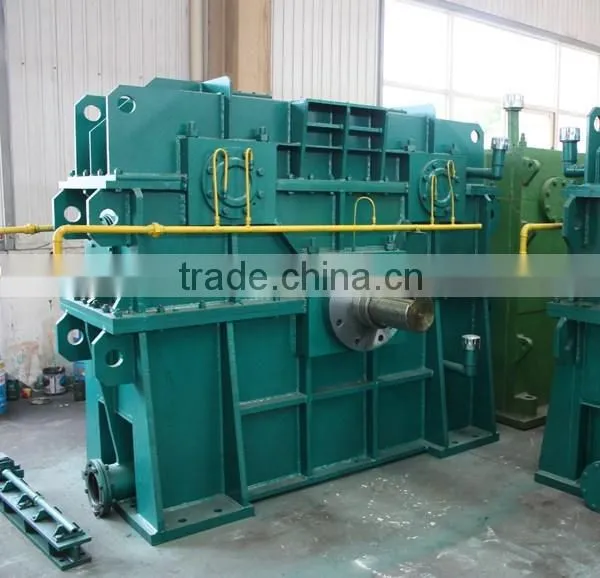

Spare parts of speed increasing gearbox case, support base, big gear, transmission axis, bevel wheel and lubrication system.
Technical characteristics of Speed increasing gear box
1, technical parameter
Highest speed output ratio |
45/157=0.2866 |
Lowest speed output ratio |
60/157)x(55/60)=0.3503 |
Motor power |
4500kW |
Motor speed |
1000/1300r/min |
High-speed output shaft speed |
4019r/min |
Low-speed output ratio |
3288r/min |
Gear meshed speed |
77.2m/s |
The backlash is less than |
0.36mm |
2,Technical characteristics
Box is melt with thick steel with great quality to reach the intensity that the case required. Case should take stress aging treatment before the produce to reach the stability that required.
Big gears and gear shaft used carbon alloy steel forging blank, after roughing, workpiece need to take ultrasonic flaw detection process to quench. In order to ensure the tooth surface with high hardness, tooth surface need to take carburizing and quenching treatment after semi-finishing .Fine grind of tooth surface to insure the high accuracy, after finishing the production of gear, the balance test is needed, the experience speed is 1500r/min and the balance level is G2.5.
Transmission shaft use the alloy steel forging blank, transmission shaft takes quenched to make sure the intensity and durableness. After the semi- finishing, transmission need to grind to guarantee the accuracy of every workpiece.
When the assemble finished, the no-loading test should be keep 2-4hours, the speed is 1200r/min, the temperature of shaft should not exceed 60℃,the work of gear should be smooth, no hitting noise and concussion, every joint surface should not have oil spill phenomenon.
Machinery and equipment we can service for you:
² high speed wire rod rolling mills,
² high speed deformed rebar rolling mills,
² roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills and finishing rolling mills,
² spare parts required in rolling mill production line.
1.Leader of the steel rolling mill field
2.SGS,ISO9001
3.warranty
Process flow:
high speed wire rod rolling mills,
high speed deformed rebar rolling mills,
roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills and finishing rolling mills,
spare parts ( roller box, gearbox reduction, coil laying head, vertical and horizontal loopers, flying shears, chopping shears and gripping shears )required in rolling mill production line.
design, manufacture ,install, debug, after sales service overseas as customers’ request
ü We customize the products according to the customers’ requirements.
ü If you are not sure about the exact product you want,we can give you some advices according to your factory’s area, annual capacity, raw material and your finished products.
ü We provide the methods of the maintenance of products.
ü Engineers are available to service machinery overseas.
Q: Are you a manufacturer or trading company?
A: Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a ISO 9001:2008certified manufacturer engaged for the last 20 Years in Manufacturing and Supply of Complete Steel Rolling Mills in the Country as well as export in Nigeria, Thailand, Indonesia, Vietnam , Myanmar and Middle East countries, and also in certain African Countries.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xi’an City, Shaanxi Province,China.
All our clients, from home or abroad, are warmly welcome to visit us!
Q: How does your factory do regarding quality control?
A: Quality is priority.
Our enterprise owns perfect quality guarantee system and an excellent quality management team, in 2001, our factory passed the ISO9001 quality system certificate.
Weikeduo’s quality policy:
Leading technology Quality-oriented
Customers first Continuous Improvement
Q: Why choose us?
A: Xian Weikeduo Electric & Mechanical Equipments Co., Ltd is the high speed rolling mill leader, with the experienced staff team and own technique patents;
Our company has been certified by ISO9001:2008 and SGS;
Our company registered the brand name "Hangji" in 2008, since then, HangJi brand rolling mills have been exported to Nigeria, Thailand, Indonesia, Vietnam , Myanmar and so on .
We are willing to cooperate with friends in the industry all over the world !
Please tell us some details as follows, so we can suggest you the suitable machine and the layout.
- What's the raw material and it's size? (width,thickness and length )
- What's the finished product and it's size?
- What's the annual capacity of your plan?
Please let us know if here any question.
Looking forward to hearing from you.
...
