Help CenterOCEPO Supplier Pressed Rebar Forging Machine for Making Coupler
Related Products
-
Rebar Cold Stamping MachineNegotiableMOQ: 1 Set -
Rebar Cold Stamping MachineUS$ 2,000 - 3,200MOQ: 1 Set
-
Use-Easy Rebar Cold Stamping Machine 16-40mmUS$ 2,000 - 3,200MOQ: 1 Set
-
Rebar Cold Stamping Machine 16-40mmUS$ 2,000 - 3,200MOQ: 1 Set
-
Rebar Cold Stamping Machine to Connect RebarUS$ 2,000 - 3,200MOQ: 1 Set
-General Description of Cold Forged Machine (12-40mm)
HLY~32 Cold Forged Machines are mainly used to connect HRB335 and HRB400 Ribbed Rebar with diameter 18-40mm, and suitable for high-rise, frameset, tunnel, bridge and dam etc. Our cold forged machines and related equipments are small in bulk, light in weight and particularly fit for construction site. Trough the strict detection of the National Metallurgy Department Construction Quality Supervision & Inspection Center, the joint reaches the Level A of National Industry StandardGeneral technical specification for mechanical splicing of bars . The practice shows that our machines are stable in quality and high in economic benefit.
Main Parameter: of Cold Forged Machine
Rated Working Pressure |
70 Mpa |
Rated Extrusion Force |
550 KN |
|
Transmission Mode |
Motor Transmission |
|||
Working Medium |
10# Hydraulic Oil (Use in Winter), 20# Hydraulic Oil (Use in Summer) |
|||
Pump |
Slipper Pump (Flow Rate: 3L/min) |
|||
Piston Stroke |
40 mm |
Extrusion Force |
630KN |
|
Speed |
Working Speed |
3.5mm/s |
||
Return Trip |
9mm/s |
|||
Motor |
Y90L-4 3.0KW 380V |
|||
Oil Tank Capability |
20 L |
|||
Dimension |
555*470*700 mm |
|||
Net Weight |
60kg |
|||
Composition of Cold Forged Machine

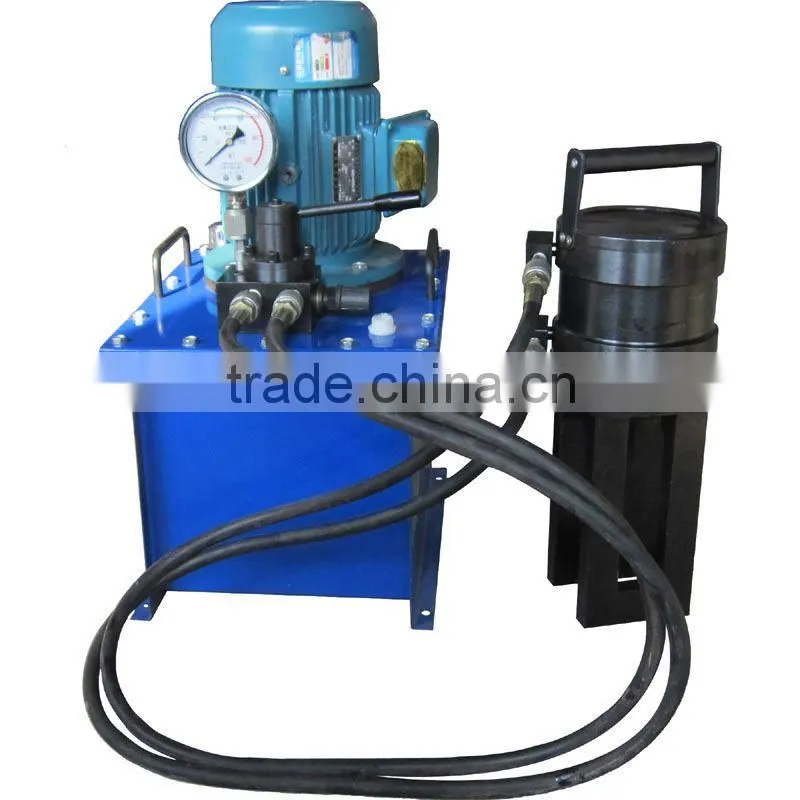

Cold extrusion press equipment is made up of rebar extrusion press machine, ultra~high pressure pump, balancer, etc.
-Cold extrusion press equipment

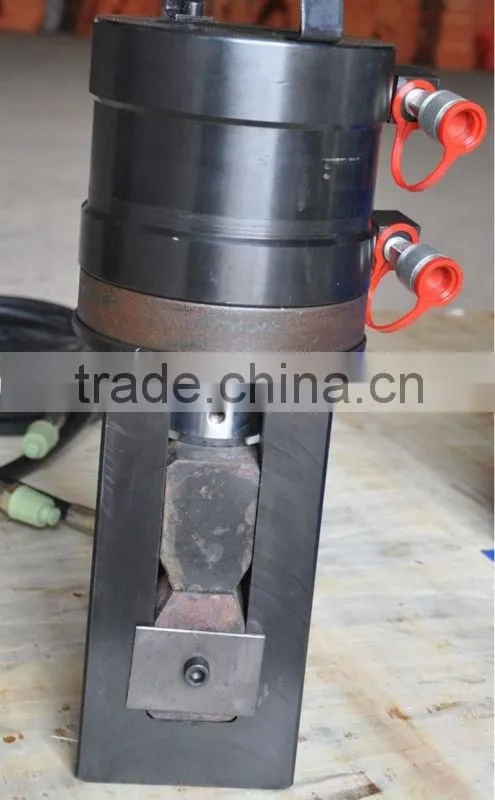

(1) Rrebar extrusion press machine is key tool of cold extrusion press equipment, it mainly used in extruding Φ18-Φ40mm II grade III grade deformative rebar joint. Remove pressure die, change shear die, it can used as simple shear apparatus, and suitable for shear of various rebars in construction sites.
This type of rebar extrusion press machine is equipped with YJ-80 Ultra-high pressure pump, compact structure, small volume, light weight, easy operation, is a kind of portable hydraulic machinery, suitable for field operation, working aloft, etc. Diagram 1:

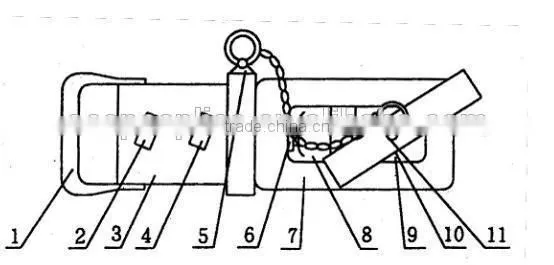

Diagram 1
1,handle 2,filler opening 3,cylinder 4,return opening 5,hand ring 6,piston
7,rack 8,floating die(mold) 9,fixed die(mold) 10,die(mold) baffle 11,chain

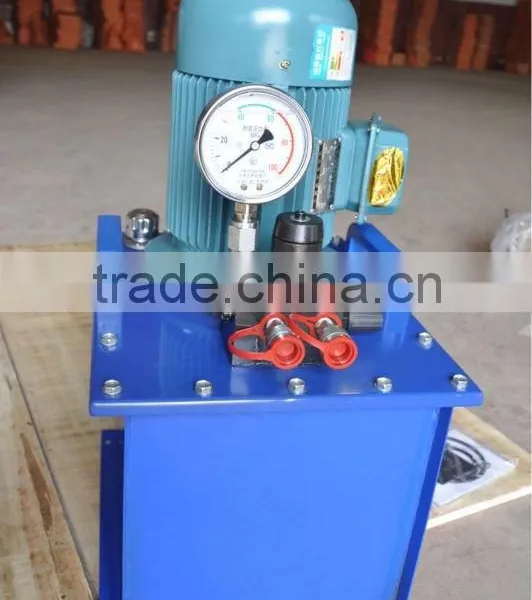

- Ultra-high pressure pump

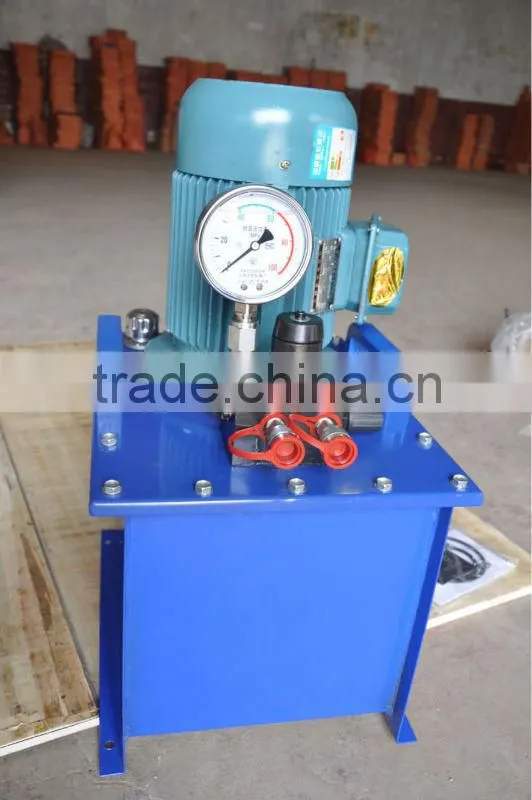

Ultra~high pressure pump is power producer of cold extrusion press machine; the output pressure can reach 100MPa. Ultra-high pressure pump use radial piston pump, long life, high efficiency, good self-priming performance, simple structure, easy to use, etc.
Advantages of Cold Forged Machine:
- Stable connection process, convenient construction, easy operation.
- Joint’s performance is reliable, quality is easy to check and control, and not affected by welding performance of rebar.
- It is not affected by climate change, can be all-weather operations.
- Fast extrusion splicing speed, high work efficiency, in general, it can increase 3-5 times on work efficiency compared with electric arc welding joint.
-Packing & Shipping

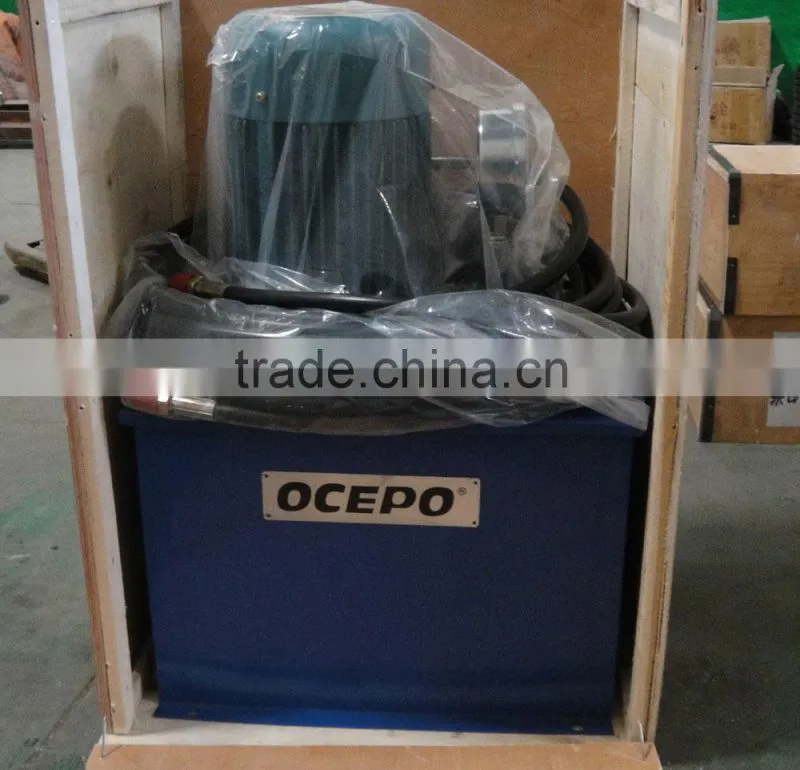

Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
-About US -OCEPO Since 1998
Established in 1998,OPEC is specialized in researching and manufacturing for construction machinery, with abundant technological competences and extensive experience. Our main products include rebar straight thread (rib-stripping) rolling machine, rebar coupler, welding fixturew, etc. Up to now, OPEC has successfully exported to more than 50 countries and regions all over the world.

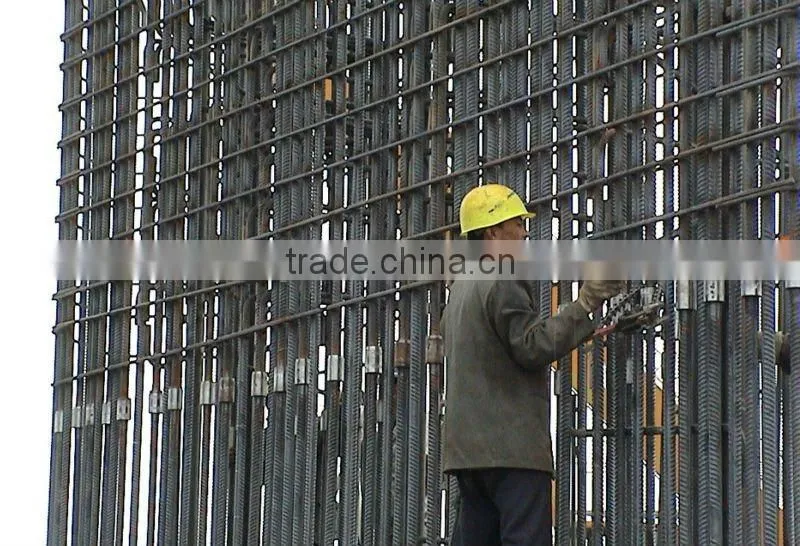

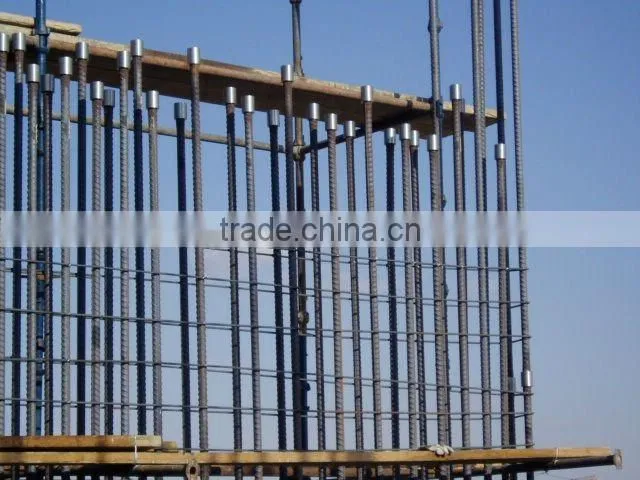

-Construction Site

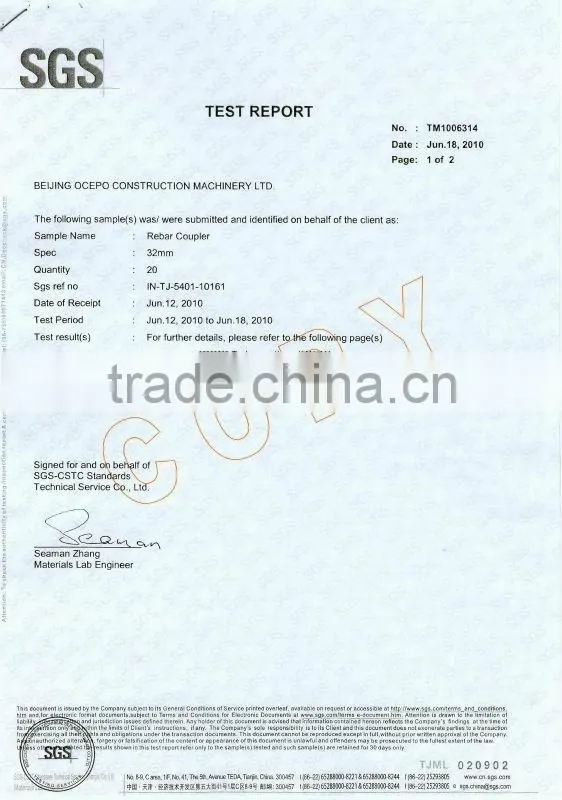

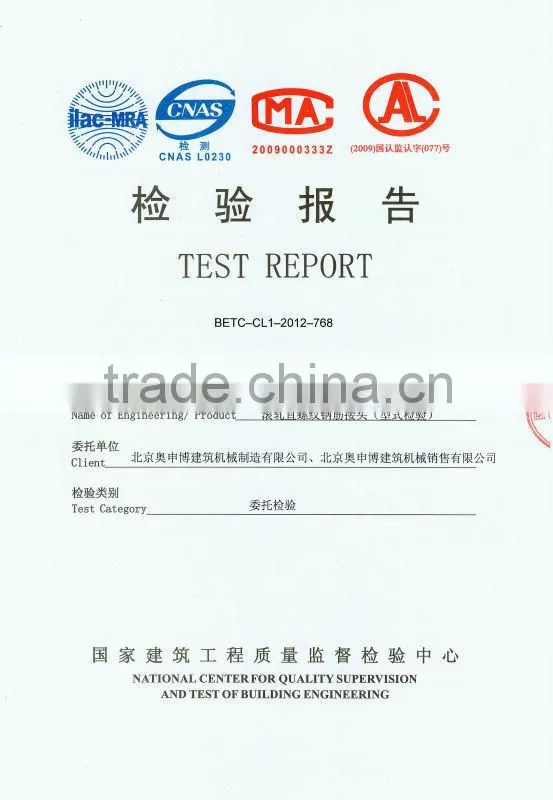

-Certification of Cold Forged Machine
