Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > SJ-FS5.5 Series Flat Yarn Extruder

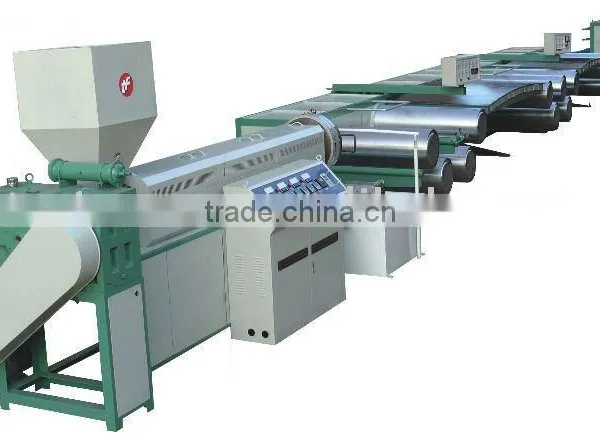

SJ-FS5.5 Series Flat Yarn Extruder

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

China

Contact Supplier Request Quote Chat Now

Sutex Wuxi International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin China

Specifications

flat yarn extruder uses the polypropylene (PP) or polyethylene (PE) material to make tape (flat yarn)

flat yarn extruder uses the polypropylene (PP) or polyethylene (PE) material to make tape (flat yarn) through production procedures of material heating & extruding, splitting the film into tapes, the tapes stretching & forming, tapes winding on the bobbins by winding machine, then put the bobbins with tapes on circular loom for weaving.

Through our many times improving, the machine can be fit for all kinds material, such as 100% recycled PP & PE, powder or grain PP & PE, to produce the tapes. The screw and barrel of extruder are made of high quality 38CrMoAlA allay steel, the hardness is over HV950 after nitrogenizing treatment. The gears & chain wheels are made of 45# medium carbon steel and done the treatment of high frequency quench. The driving rollers are electroplated with hard Cr, tension self-controlling of winding-rollers are applied to the driving unit. The barrel of extruder, bullhead tee and die adopt cast aluminum heater which is endurable. It has the performance of easy operation & maintenance, reliable quality & running and long usage life.

Parent No.: ZL99219359.1ZL99242134.9ZL00202490.XZL01208472.7

Main Technical Parameter

Model	SJ-FS5.5-110IB/600	SJ-FS5.5-110IIB/800	SJ-FS5.5-120A/1000	SJ-FS5.5-120B/1200	SJ-FS5.5-140A/1500	SJ-FS5.5-140B/2200
Dia of screw	110mm	110mm	120mm	120mm	140mm	140mm
Ratio of screw L/D	20:1	24:1	24:1	24:1	24:1	26:1
Revolution of screw	10-55r/min	10-55r/min	8-48r/min	8-48r/min	8-48r/min	8-48r/min
Motor of extruder	12.5kw	22kw	30kw	30kw	37kw	45kw
Heating power of extruder	24kw	28kw	32kw	32kw	40kw	40kw
Width of die	600mm	800mm	1000mm	1200mm	1500mm	1500mm
Dia. of roller	320mm	320mm	400mm	400mm	400mm	400mm
Number of heating board	2pcs	2pcs	2pcs	2pcs	2pcs	2pcs
Power of heating board	15kw	15kw	20kw	20kw	28kw	28kw
Stretching ratio	4-7	4-7	4-7	4-7	4-7	4-7
Extrusion capacity	30-80kg/h	50-100kg/h	60-120kg/h	70-150kg/h	100-200kg/h	100-200kg/h
Winding linear speed	20-150m/min	20-150m/min	20-150m/min	20-150m/min	20-150m/min	20-150m/min
Number of winder	96 spindles	128 spindles	160 spindles	200 spindles	256 spindles	384 spindles
System installed capacity	98kw	118kw	141kw	160kw	192kw	192kw
Normal operational capacity	64kw	77kw	91kw	104kw	125kw	125kw
Weight (About)	8000kg	10500kg	12000kg	13750kg	16000kg	16000kg
Overall dimension (L×W×H)	23.50×2.50×1.80m	26.30×2.50×1.80m	30.20×2.50×1.80m	36.50×2.50×1.80m	40.00×2.50×1.80m	52.00×2.50×1.80m
