Roll Forming Machine

Roll Forming Machine thumbnail-1
Roll Forming Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Tile Forming Machine
Tile Type:
Colored
Use:
Roof
Contact Supplier Request Quote Chat Now
Sutex Wuxi International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tile Forming Machine
Tile Type Colored
Use Roof
Place of Origin Jiangsu, China

Specifications

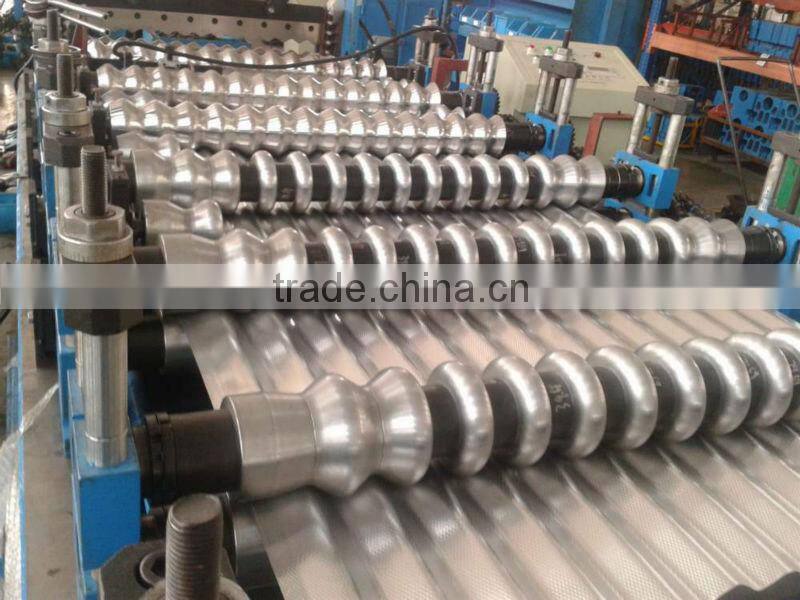

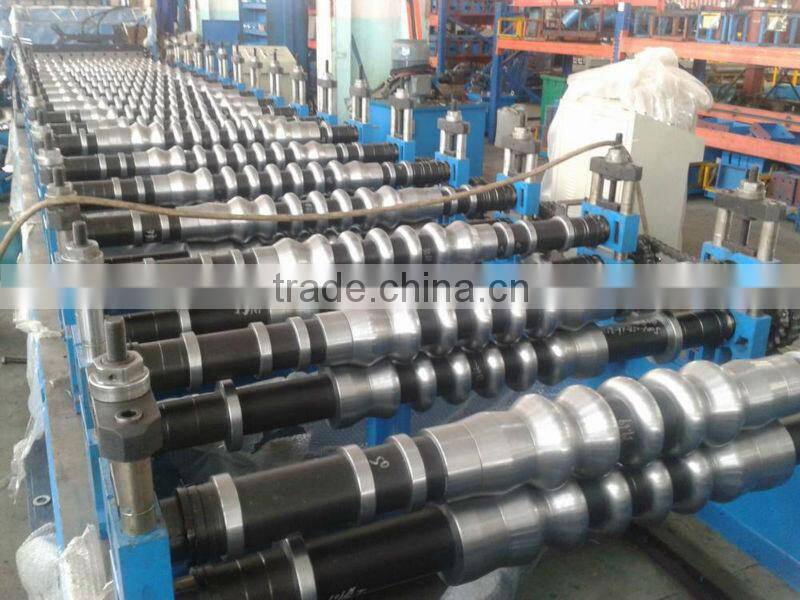

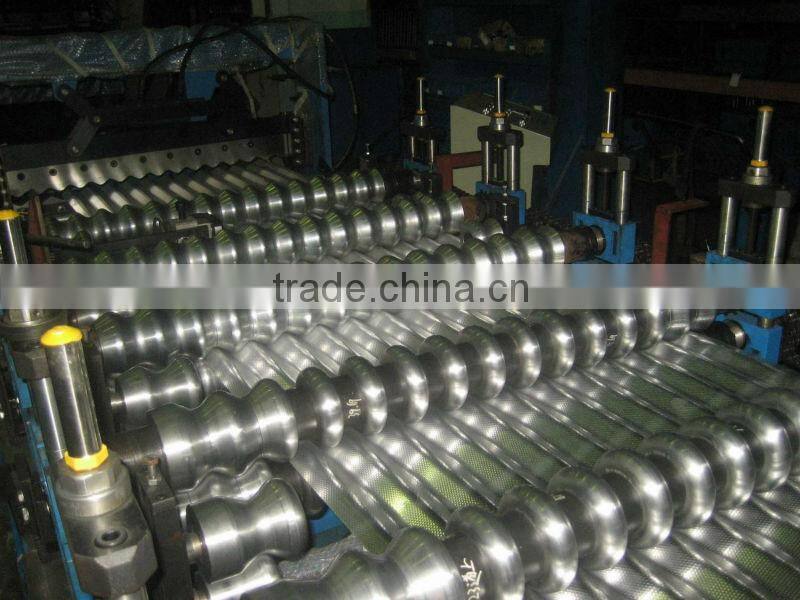

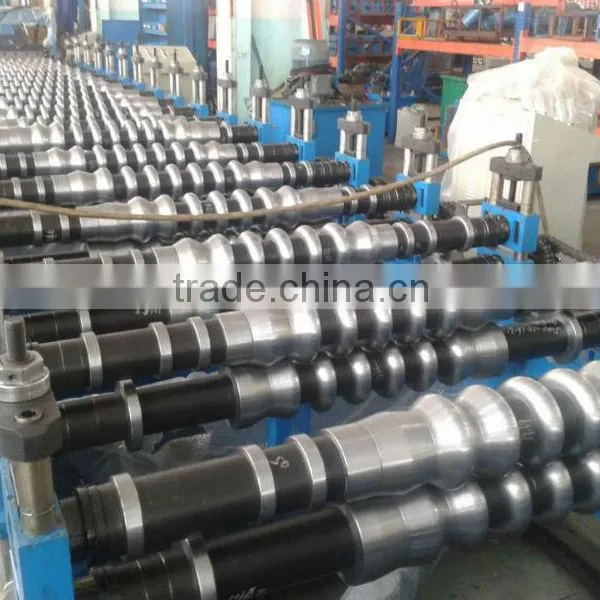

Corrugated roll forming machine
single station with chain transmission
hydraulic cutting

 Technical parameter:

  1.   Manual decoiler:
  2. weight capacity of decoiler:5T
  3. machine stand: adopts H steel structure welded,shot blasting after welding and cancel the inner stress
  4.  locating of movable station:fixed by key way and screw
  5.  guide feeding stand type:side trolley type
  6.  type of forming machine:single station with transmission
  7.  specification of single station:WHPF35
  8. diameter of bearing assembly position: 50mm
  9. diameter of shaft: 70mm(thermal refining
  10.   motor power of forming machine: 7.5kw
  11. line speed:10m/min
  12. surface of roller coated with chrome of  0.05mm thickness
  13.   motor power of hydraulic station:3kw
  14.  type of cutting:hydraulic cutting
  15.  material of cutting blade:Cr12
  16.  heat treatment of blade :HRC58°-60°roll forming machineroll forming machineroll forming machine
  17. thickness of steel coil:0.25-0.45mm  AL coils
  18. width of steel coil:1000mm
  19.   tolerance of length:10±2mm
  20. computer adopts PLC,Omron
  21. computer operating board adopts Thinget OP320



Technical process

Auto un-coil→feed with guide→ roll forming→cutting with fixed length→output table
