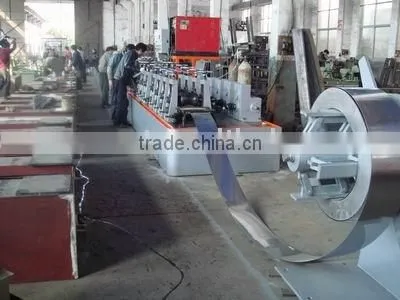

Stainless Steel Tube Making Line

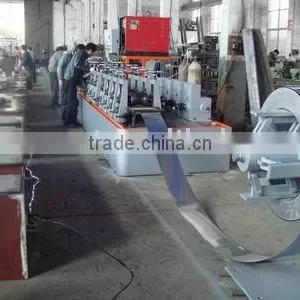

Stainless Steel Tube Making Line thumbnail-1
Stainless Steel Tube Making Line photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Pipe Production Line
Pipe Material:
Stainless Steel
Application:
Other
Contact Supplier Request Quote Chat Now
Sutex Wuxi International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Pipe Production Line
Pipe Material Stainless Steel
Application Other
Place of Origin China

Specifications

stainless tube diameter from 4mm to 159mm, wall thickness from 0.17mm to 4mm.
Polishing from 8mm to 120mm

Stainless Steel Tube Making Machines
Unique designing, provided with rational structure. Horizontal shaft has high quality heat treatment twice. Framework thick and high quality casting, finished via accurate grinding etc. Polishing cover is made by stainless steel. Cutting part is the style of wallboard jointing, and processed via closed planer. Component of the electric apparatus will be Siemens brand and Schneider brand. The machines not merely suitable for production of thick tubes, but also great for thin tube.





Normal Type Tube Mill Parameter

Title

ZG20

SZG40

ZG40

ZG50

ZG60

Diameter(mm)

4~16

6~25

8~45

25~76

50.8~114

Thickness(mm)

0.17~0.8

0.17~1.2

0.17~2

0.4~2.5

0.5~3

Speed(m)

2~18

2~18

2~18

3~12

3~12

Main Moter(kw)

3

5.5

7.5

11

15

Seam Polish Case

N/A

3kw*2

3kw*2

3kw*3

3kw*3

Main Machine Length(m)

2.4

6

6.5

7.5

8.5

Remark: A, Option of vertical type or horizontal type for coil carrier;
               B, Option of cutting station or roller for ZG20;
               C, Option of speed adjustable or frequence adjustabe for main motor;
               D, Extra order of argon arc welding machines are available.

Industry Type Tube Mill Parameter:

Title

ZG40

ZG50

ZG60

ZG80

ZG100

Diameter(mm)

8~45

25~76

50.8~114

89~159

114~219

Thickness(mm)

0.3~3

0.4~3.5

0.6~4

0.4~5

1~5

Speed(m)

0.5~5

0.6~4

0.6~4

0.5~3

0.8~4

Main Frequency
adjustable Motor(kw)

7.5+5.5

11+7.5

15+11

18.5+15

22+15

Seam Polish Case

3kw*3

3kw*2

3kw*3

3kw*3

3kw*3

Transmission

Gear Box

Gear Box

Gear Box

Gear Box

Gear Box

Main Machine
Length(m)

7.8

8.5

9

13

13.6

Remark: A, Option of vertical type or horizontal type for coil carrier;
B, Extra order of argon arc welding machines are available;
C, Extra order of online heat treatment & de-beading systems are avaliable.

Main Section: Material stand, Grinding section, Cutting station, Material release stand.
