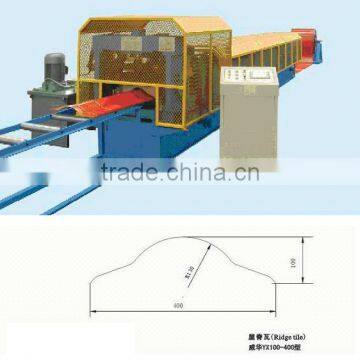

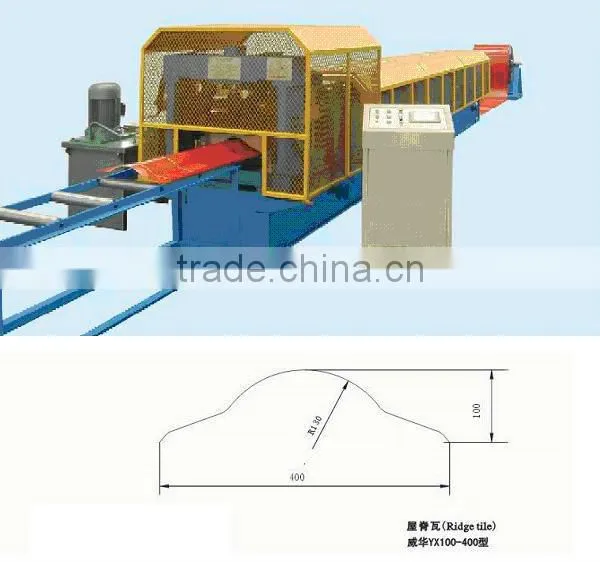

Help CenterRidge Making Machine
Related Products
Specifications
Corrugated roll forming machinesingle station with chain transmission
hydraulic cutting
1) Manual decoiler:passive uncoiling, manual expanding
2) Weight capacity of decoiler:3T
3) Machine stand adopts welded steel structure with shot blasting treatment
4) Locating of movable station:fixed by square key and screw
5) Bearing of fixed station:taper bearing installed in pairs
6) Stand type for guide feeding:side trolley type
7) Type of forming machine:single station with chain transmission
8) Specification of single station: WHPF35
9) Diameter of roller shaft: 60mm
10) Chain: 16A
11) Motor power of main forming ma
chine:5.5kw
12) Forming speed:10m/min
13) Roller station:16 stations
14) Material of roller:45# forged piece with heat treatment
15) Hardness of roller:HRC58°-60°
16) Motor of hydraulic station:5.5kw
17) Hydraulic oil pump:gear pump CB-E314
18) Material of stamping mould: 40Cr with nitrification treatment
19) Cutting:hydraulic cutting
20) Material of cutting blade:Cr12
21) Heat treatment of cutting blade: HRC58°-60°

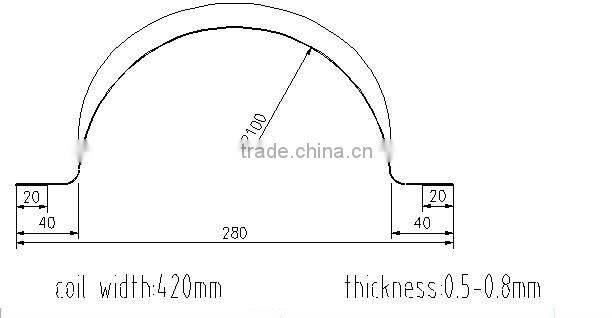

22) Thickness of material:0.5-0.6mm
23) Coil width:415mm
24) Tolerance of cutting length:10m±2mm
25) Transducer: Hongquan from Taiwan
26) Computer adopts PLC, Omron
27) Working pressure of hydraulic system:12Mpa
28) Computer operating board adopts Thinget OP320A
Technical process: Passive uncoiling → feeding with guide → roll forming → stamping → cutting into length → output with table
