Rolling Mill & Rolls

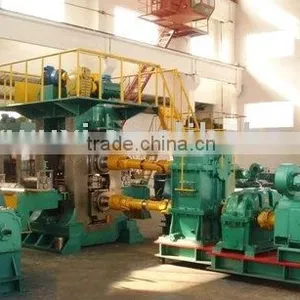

Rolling Mill & Rolls thumbnail-1
Rolling Mill & Rolls photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Sutex Wuxi International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other
CNC or Not Normal
Place of Origin China

Specifications

2 high-6 high reversing and non-reversing cold rolling mills, continuous tandem mills, strip rolling machines with rolls

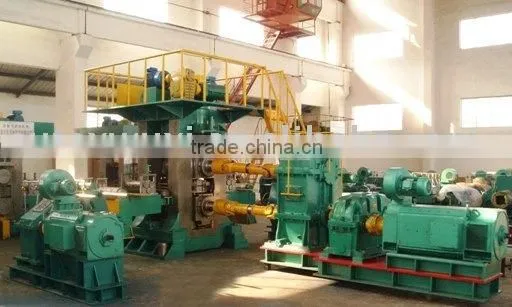

Φ120(Φ140)/Φ450×450 4-high Reversing Cold Mill



Description
Two types: revering and non-reversing, suitable for secondary rolling and finish rolling of common straight carbon steel, alloy steel stainless steel, copper and aluminum strips. Back-up roll transmission with rigid frame, special bearing and screw down worm gear with secondary enveloping surface.
Structure
It is composed of main motor, gear reducer, double helical spur gear, universally-jointed axle, support, working seat, power screw down gear, left and right draw-works, hydraulic station and DC electric control. Material of backing roll: 9Cr2Mo
Technical Data

Max. press 3000KN Mode of transmission Backing-roll transmission
Entry size 2.5×380 Final size 0.2×380
Cross section of frame 250×300 Window size 550×1680
Size of working roll Φ120(140)×450
needle roller bearing		 Size of backing roll Φ450x450 FCD bearing
Main motor Z4 Motor for screw down gear YZ211Kw
Rolling speed 100m/min for special steel and 180 m/min for common straight carbon steel Speed of screw Dow gear 0.058mm/s
Gear reducer ZLY Worm gear for screw down A=315
Double helical spur gear A:690; Mn=12 Weight of main frame Approx.31.5 t
Recoiler(alternative) Hydraulic or solid dimension 4980×2400×3000
