Specifications
1 Switch 36V 2A power Adapter with UL, SAA, PSE,CE, GS, TUV dc regulated power supply2.100% full-load burning test

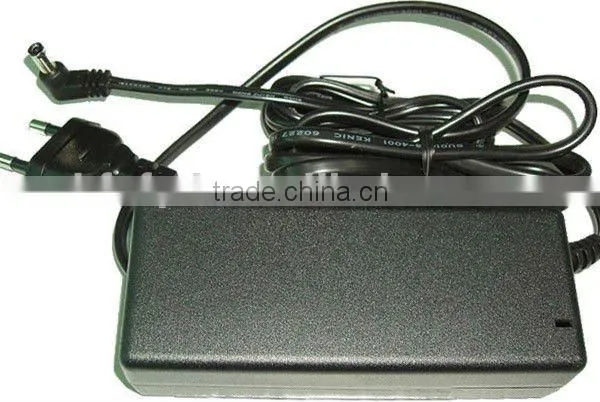

Switch 36V 2A power Adapter with UL, SAA, PSE,CE, GS, TUV dc regulated power supply
1.Universal input voltage
2.UL/CUL, GS,CE, SAA, FCC
3.10 Years Experience Factory
4.High efficient more than 85%
5.2 years warranty
6.High quality,competitive price
7.Punctual and Fast delivery
Advantages
1. input voltage: AC 100-240V 50/60HZ
2. range voltage: AC 90-264V 47/63HZ
3. High efficiency and low operation temperature
4. AC input power suitable for the world
5. Soft-start current can reduce the AC input impact efficiency
6. With short-circuit and overload protection
7. Compact size ,light weight
8. 100%full-load burning test
9. Installed with EMI filter ,minimum wave
Safety& Lead-free:
Protections
1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection
4)Short-circuit protection: automatic recovery
5)Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5)Insulation resistance: DC 500V 100MΩ (minimum)
Output voltage and current
Input condition |
Type |
Output votage(v) |
Output current(v) |
Noise |
Load regulation |
Line regulation
|
Output votage precision |
|
Input votage: 90~264
Input frequency 47~63Hz |
FYxxxyyyy |
3.0v-12.0v |
0A-6Amax |
100mv |
<5% |
<1% |
±5% |
FYxxxyyyy |
12.1v-15v |
0A-5Amax |
100 mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
15.1v-16v |
0A-4.5Amax |
100mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
16.1v-18v |
0A-3.8Amax |
100mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
18.1v-19v |
0A-3.5Amax |
120mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
19.1v-20v |
0A-3Amax |
120 mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
20.1V-24V |
0A-2.5Amax |
120 mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
24.1V-30V |
0A-2.25Amax |
120 mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
32.1V -36V |
0A-2Amax |
120 mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
36.1V-40V |
0A-1.8Amax |
200 mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
40V-48V |
0A-1.5Amax |
200 mv |
<5% |
<1% |
±5% |
|
|
FYxxxyyyy |
48.1V-60V |
0A-1.2Amax |
200 mv |
<5% |
<1% |
±5% |
|
FYxxxyyyy |
60.1V-72V |
0A-1Amax |
200mV |
<5% |
<1% |
±5% |
Environmental and reliability
l Oprating temperature, 0~40°C
l Oprating humidity , 10~90%RH
l Storage temperature, -20~+80°C
l Storage humidity , 5~90%RH
l Leakage current , 0.25mA max
l Withstanding voltage, 3000Vac 1 minute 10mA max
l Burn-in 100% full load,40±5°C,4Hrs min
l MTBF meet MIL-HDBK-217F over 50k hours, full load 25°C
l Insulation resistance , 500Vdc 100MΩ min between AC plug and DC plug and case.
Packing
1.Inner package:PE bag,white box or as your demand
2.Outer package:Carton or according your requirement
AC Input Voltage.............100~240V AC 47~63 Hz
Inrush Current..............<30A(AC 240V at 25°C)
input Current Limiting..............<2.5A(under min AC input and full load)
Efficiency..............>80%
DC Voltage Regulation
DC Output Current
Output Ripple & Noise............. 50 mVp-p@ 25 degrees C
Output Dynamic Load Response
Overshoot at turn-on/ turn-off.............<10%
SCP...........<0.1 ohms
OCPlimits.........6A
Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)
Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)
Working temp...........0°C~ 40°C
Storage temp Range..........-10°C~ +85°C
Working humidity..........25%~90% relative humidity (Non- condensing)
Storage humidity Range..........10%~90% relative humidity (Non- condensing)
MTBF............ 50K hours (25°C , Full load and rated voltage input)
Standards............Meet IEC60950-1standard requirement
Leakage Current.............not exceed 0.25mA at 220Vac/50Hz
Insulation Resistance...........≥50MΩ ,500VDC
100%Hi-pot test

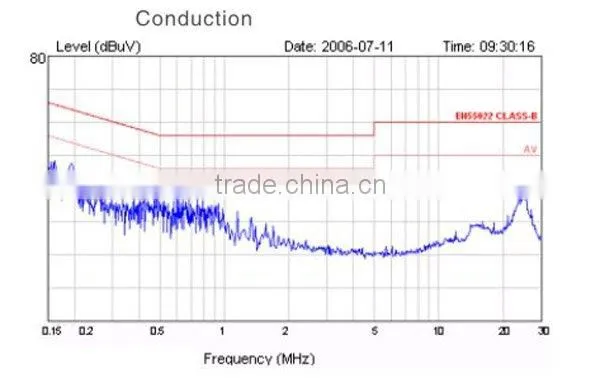

Conduction and Eradiate
