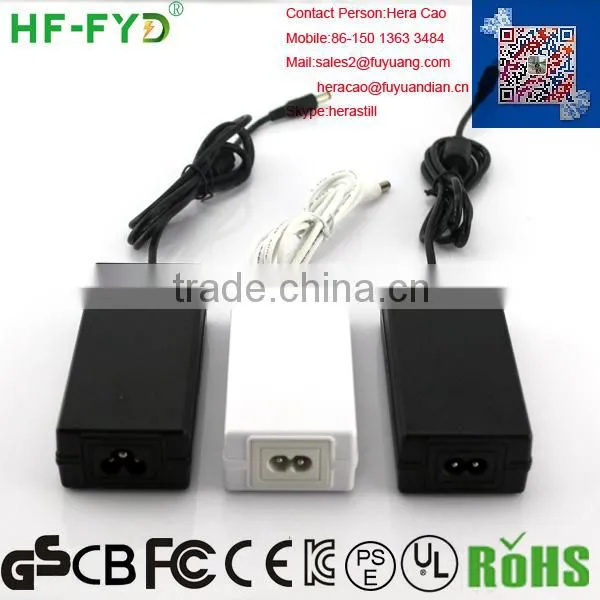

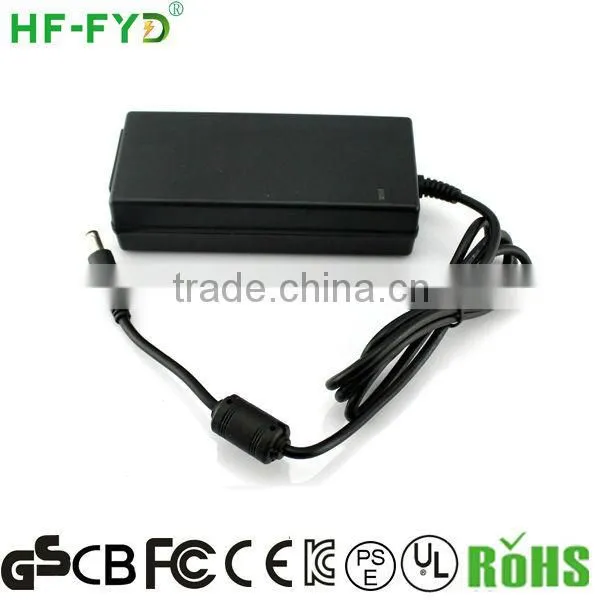

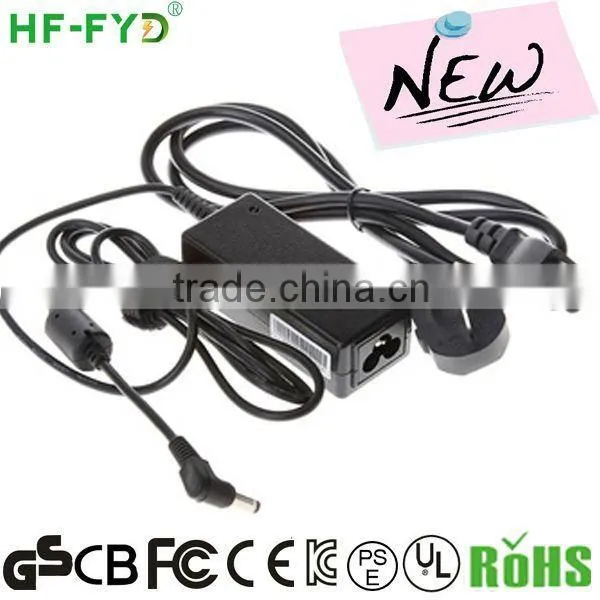

FY0504000 5V 4A Adapter for Security Monitor

FY0504000 5V 4A Adapter for Security Monitor thumbnail-1
FY0504000 5V 4A Adapter for Security Monitor photo-1
US$ 3 - 6 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HF-FYD
Model Number:
FY0504000
Contact Supplier Request Quote Chat Now
Shenzhen Fuyuandian Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HF-FYD
Model Number FY0504000
Output Type AC
Connection Desktop

Specifications

1.FY0504000 5V 4A adapter for security monitor
2.100% full-load burning test
3.2 years warranty
4.O/P:5V 4A

FY0504000  5V 4A adapter for security monitor



Dear Sir or Madam ,



This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484

Looking forward to your any inquires !



Application



Widely used in the electronic digital, communication, security, lighting, medical, led lighting, led display, etc



Electric Performance Parameters



v Power:20W

v Model:FY0504000

v Input voltage: AC 110-240V

v Universal input voltage

v Frequency: 47-63HZ

v Output voltage:DC

v Output current:4A

v Color:Black or white

v Certification:CE,UL,SAA,CB,FCC,GS,KC,PSE,etc

v 2years warranty

v High quality,competitive price

v Punctual and Fast delivery

v Efficiency:85%

 FY0504000 5V 4A adapter for security monitor

Input voltage



Minimum

Nominal

Maximum

100Vac

110Vac/220Vac

240Vac



Input Frequency



Minimum

Nominal

Maximum

47Hz

50Hz/60Hz

63Hz



DC Voltage Regulation



Parameter

Line Regulation

Load regulation

Cross regulation

V1:5V

±5.0%

±5.0%

N/A



DC Output Current



Parameter

Min Current

Rate Current

Max Current

Unit

V1:5V

0.1

  4

-

A



Output Ripple and Noise



Parameter

Max.

V1:5V

50mVp-p@25 degrees C



Dielectric Strength Testing



Item

Specification

Remark

      Primary to Secondary

1.5KVac

<5mA

No arcing

No broken

          Primary to P.G

N/A

N/A



Protection



² Over-voltage protection: 120%min

² Over-current protection: 120%min

² Short-circuit protection: automatic recovery

² over protection

² Load regulation: ±5%



Standard



Meet IEC60950-1 (information technology and similar electric apparatus -safety requirement) standard requirement.



Advantage of the product



l range voltage: AC 90-264V 47/63HZ

l High efficiency and low operation temperature

l AC input power suitable for the world

l Soft-start current can reduce the AC input impact efficiency

l Compact size ,light weight

l With short-circuit and overload protection

l 100%full-load burning test

l Installed with EMI filter ,minimum wave



Environmental requirement


1)operating temperature: 0-40°C
2)storage temperature: -20-85°C
3)opera ting relative humidity:595%RH
4)Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5)Insulation resistance: DC 500V 100MΩ (minimum)



BASIC TERMS:



u MOQ (Min Order Qty): 500PCS / 1 CT or 50PCS/CT

u Lead-Time: 7-15 Working Days Normally

u Warranty Period: 2 years

u Payment Methods: T/T, Paypal, Western Union, etc

u Shipping Mode: Express Courier, Air, Sea or as your demand



Description:



Ø Universal input voltage

Ø 5 Years Experience Factory

Ø High quality,best price

Ø Punctual and Fast delivery



About us



We are a professional adapters factory for more than 5 years



ü Quality control:our defectie products rate is 0.01%

ü Economically priced, exquisitely made Experience&responsible QC that you can reply on

ü Adequate supply capacity, Punctual delivery time

ü Best after sales service are provided



After service


This product can be repair within one year for any defects or irregularities caused by the factory.



Packing



1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement



Inside package

PE bag

Package

50 PCS/CT

Outer package

Carton


Dear Sir or Madam ,



This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484



Looking forward to your any inquires !


FY0504000 5V 4A adapter for security monitor




 FY0504000 5V 4A adapter for security monitor

FY0504000 5V 4A adapter for security monitor



FY0504000  5V 4A adapter for security monitor



Dear Sir or Madam ,



This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484



Looking forward to your any inquires !
