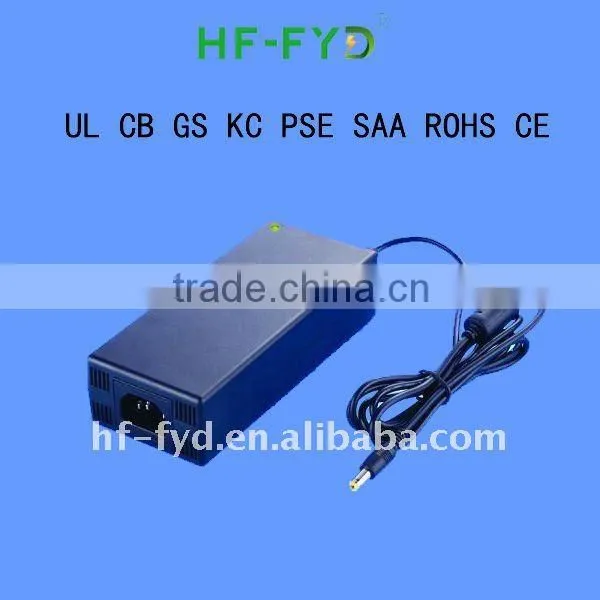

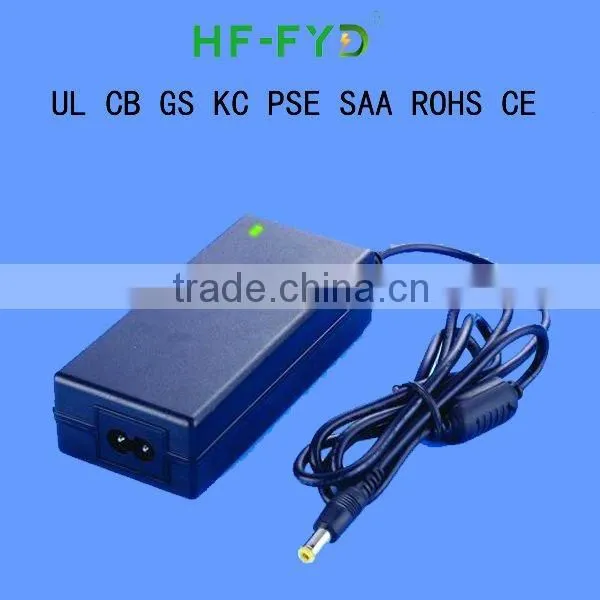

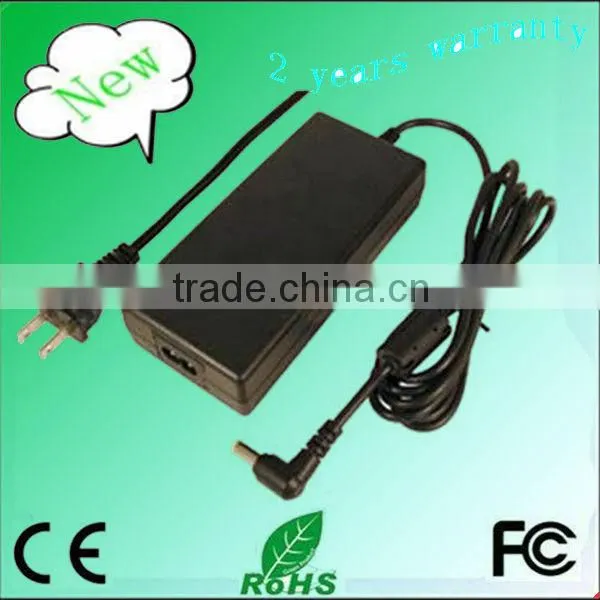

FY2402000 24v ac power adapter

Specifications

1. 48W 12V 4A 24V 2A Euro Plug in Adapter
2. 100% full-load burning tests
3. UL,CE,FCC,TUV,GS

FY2402000 24v ac power adapter





Dear Sir or Madam ,







This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484







Looking forward to your any inquires !



Specification



1 Input voltage: AC 100-240V

2 Output voltage: DC 24V

3 Output current: 2A



Protection



1 Over voltage protection

2 Over current protection

3 Over load protection

4 Short circuit protection



Environment requirements



1 Operating temperature: -10-35  C Celcius

2 Storage temperature: -20--70  C Celcius

3 Storage humidity: 5%-90%



Advantage



1 Soft-start can reduce the AC input impact efficiency

2 Wiht short ciucuit and over load protection

3 Compact size, light weight

4 100% full-load burning test



AC Input



AC Input Voltage.............100~240V AC 47~63 Hz

Inrush Current..............<30A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%



DC Output



DC Voltage Regulation



Parameter	Line Regulation	load Regulation	Cross Regulation
V1:24V	±5.0%	±5.0%	N/A



DC Output Current



Parameter	Min Current	Rate Current	unit
V1:24V	0.1	2	A



Output Ripple & Noise.............  50 mVp-p@ 25 degrees C

Output Dynamic Load Response



Dynamic Load	DC Voltage Regulation
50%~100%~50%	±10%



Overshoot at turn-on/ turn-off.............<10%



Protection Function



SCP...........<0.1 ohms

OCPlimits.........3A



Timing



Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)



Environment Requirement



Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)



Product Safety Requirement



Standards............Meet IEC60950-1standard requirement

Leakage Current.............not exceed 0.25mA at 220Vac/50Hz

Insulation Resistance...........≥50MΩ ,500VDC



Dielectric Strength Testing



100%Hi-pot  test



Item	Specification		Remark
Primary to Secondary	1.5KVac	<5mA	No arcing No broken
Primary to P.G	N/A	N/A



Output voltage and current



Conduction and Eradiate



Output voltage and current:24V 2A(full load)

Input voltage:100V ac 60HZ

Circumstance:25C@75%RH
