Product Details
| Place of Origin | China | Brand Name | frankever | |
| Model Number | PV solar cable | Type | Other, solar cable |
Product Description
Specifications
6mm2 Solar cable for solar power connector,TYPE:single core 1.5/2.5/4/6/10/16mm2
PRODUCT NAME:
6mm2 Solar cable for solar power connector, PV cable, red/black |

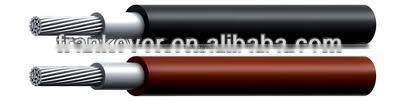

| Picture |
|
SPECS |
|
|
|
|
|
|
|
Cross Section (mm²) | Conductor Construction (n/mm) | Conductor Stranded OD.(mm) | Insulation Min.Wall Thickness(mm) | Sheath Min.Wall Thickness(mm) | Cable OD.(mm) | Conductor Max.Resistance AT20°C (Ω/km) | Current Araaing Capacity AT 60°C(A) |
PV-1x1.5mm² | 30/0.25 | 1.58 | 0.67 | 0.73 | 4.90 | 13.3 | 30 |
PV-1x 2.5mm² | 50/0.25 | 2.02 | 0.67 | 0.73 | 5.45 | 7.98 | 41 |
PV-1x 4mm² | 56/0.30 | 2.60 | 0.67 | 0.73 | 6.10 | 4.95 | 55 |
PV-1x 6mm² | 84/0.30 | 3.42 | 0.8 | 0.80 | 7.20 | 3.30 | 70 |
PV-1x 10mm² | 142/0.30 | 4.56 | 0.9 | 0.90 | 9.00 | 1.91 | 98 |
PV-1x 16mm² | 228/0.30 | 5.60 | 1.00 | 0.90 | 10.20 | 1.21 | 132 |
PV-1x 25mm² | 276/0.30 | 6.95 | 1.19 | 0.92 | 12.00 | 0.780 | 176 |
35mm² | 361/0.40 | 8.74 | 1.20 | 1.00 | 13.80 | 0.554 | 218 |

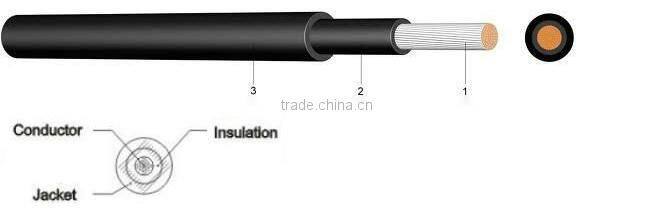

Drawing |
| ||||||
| Details |
1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C |
2. Description: (1)Conductor: Tinned annealed copper |
(2)Insulation:120°C XLPE , black |
(3)Jacket:120°C XLPE , black or red |
3.Marking:TÜV 2 PfG PV1-F 1×**mm2 |
| Application |
| Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations. |
| Factory introduction |
| Our factory Haiyan Huxi Wire&Cable Co,Ltd ,was found in 1995,we specialize in designing and manufacturing cable products for 18 years with good quality and pretty competitive price,Especially the Car Wiring Kits,Speaker Cable,RCA Cable,HDMI Cable etc.And we do OEM for customers with reliable quality.More infos for our company,please link |
|
