USB RS232 DB9 or DB25 Pin Cable

Specifications

Description:

Computers are shrinking is size daily which means less room for antiquated connections. With the rise of USB, DB09 Serial Connections have become even harder to come by on new computer systems. This is where USB to DB9 Serial Adapter comes in to play.

By converting a USB Connection to a DB9 Serial Connection you can make use of older equipment that still relies on a DB9 Serial Connection so there is no need to worry about upgrading to newer equipment.

The USB to RS-232 Serial Adapter provides an external plug & play RS-232 serial connection with your computer, letting you free up your existing serial port. Users have the capability to utilize the adapter with serial port interface in an easy-to-use environment.

The adapter is designed for connections to Cellular Phones, PDAs, Digital Cameras, Modems, or ISDN Terminal Adapters through USB port with over 600 kbps data transfer rate. Installation is very easy. Just simply connect a serial device to the USB to RS-232 adapter and plug the USB port into the computer.

USB TypeA Male	D-Sub9 Pin Female

Features

• USB 1.1 and 2.0 compatible
• IC Solution: Prolific PL 2303

• Easily Convert a standard USB Port into a DB9 Serial Port

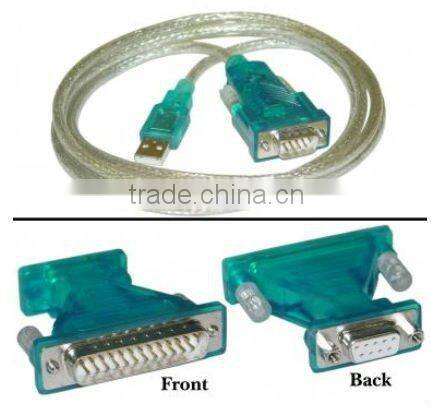

• With the optional DB9 to DB25 Adaptor, it will convert USB to DB25 easily

• Compatible With:

• Windows 98/ME/2000/XP/Vista/7
• MAC OSX 8.6~9.x
• MAC OSX 10.1.x~10.3.x
• Linux
• Support automatic handshake mode over 600kbps data transfer rate
• Support remote wake-up and power management 96 byte buffer each for upstream and downstream data flow
• Easy Installation
• Work with Cellular Phones, PDAs, Digital Cameras, Modems, and ISDN terminal adapters…etc.
• Frees your RS-232 port for other uses
• No IRQs required, no IRQ conflicts
• Full compliance with the USB specification Revision 1.1
• LED status light for data transfer monitoring
• Supports the RS 232 Serial interface
• Provides a 96 byte buffer for each upstream and downstream data transfer


Package Contents:

• 1x 6ft USB to Serial Cable
• Blister Retail Package
• DB9 to DB25 Adapter Optional

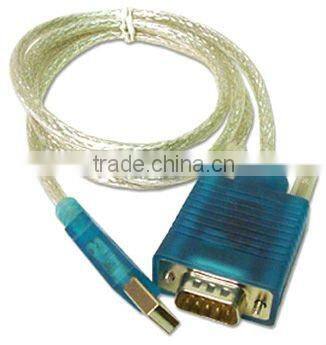

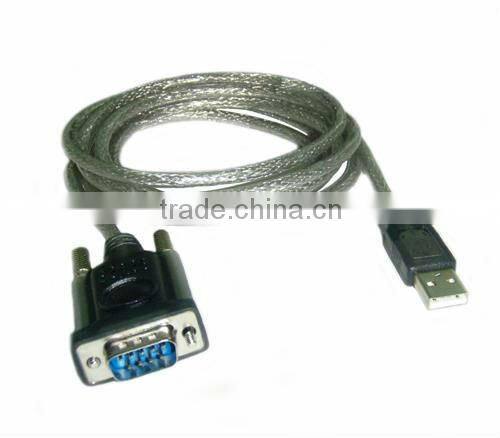

Optional Design # 1	Optional Desgin # 2
