Help CenterHigh Quality Waterproof SMD 5050 75*12mm 3 Chips LED Module RGB
Related Products
-
High Brightness IP65 5050 Waterproof Smd Led Module 5050 Led Rgb ModuleUS$ 0.1 - 0.3MOQ: 20 Pieces -
Outdoor Waterproof Smd Led Module 5050 for Illuminated Sign 12v Super Bright 4 Chips 5050 White LED ModuleUS$ 0.08 - 0.2MOQ: 20 Pieces
-
12v dc Waterproof Manufacturer of China LED Module 5050US$ 0.06 - 0.12MOQ: 20 Pieces
-
5050 RGB LED ModuleUS$ 0.22 - 0.32MOQ: 20 Pieces
-
75*12mm 12v dc CE RoHS Certificate Smd 5050 Led ModuleUS$ 0.06 - 0.1MOQ: 20 Pieces

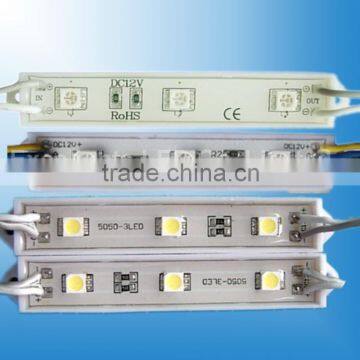

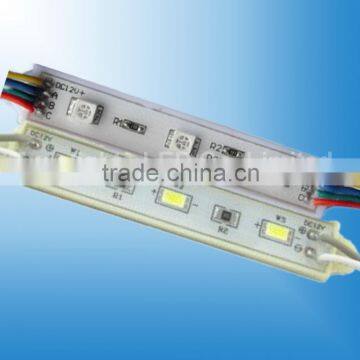

LED Module RGB:
Specifications for LED Module RGB:
1. Lighting source: 5050 LED Module RGB
2. Quantity of LED: 3 PCS
3. Operating voltage: 12V DC
4. Wattage: 0.72 W
5. Dimension: 75*12 mm
6. Forward current: 20 to 30mA

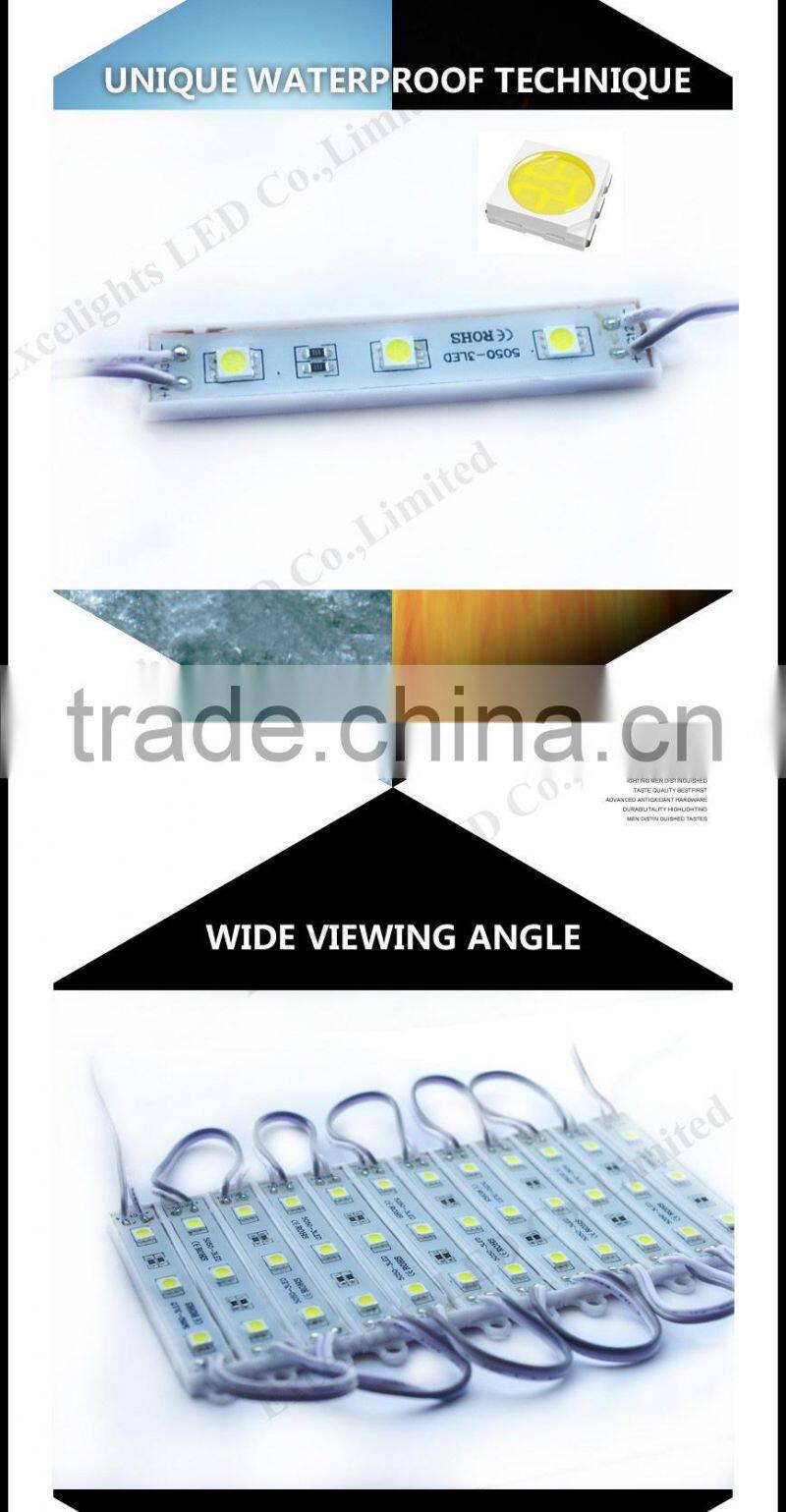

7. Waterproof grade: IP65 Epoxy resin
8. Viewing angle: 120°

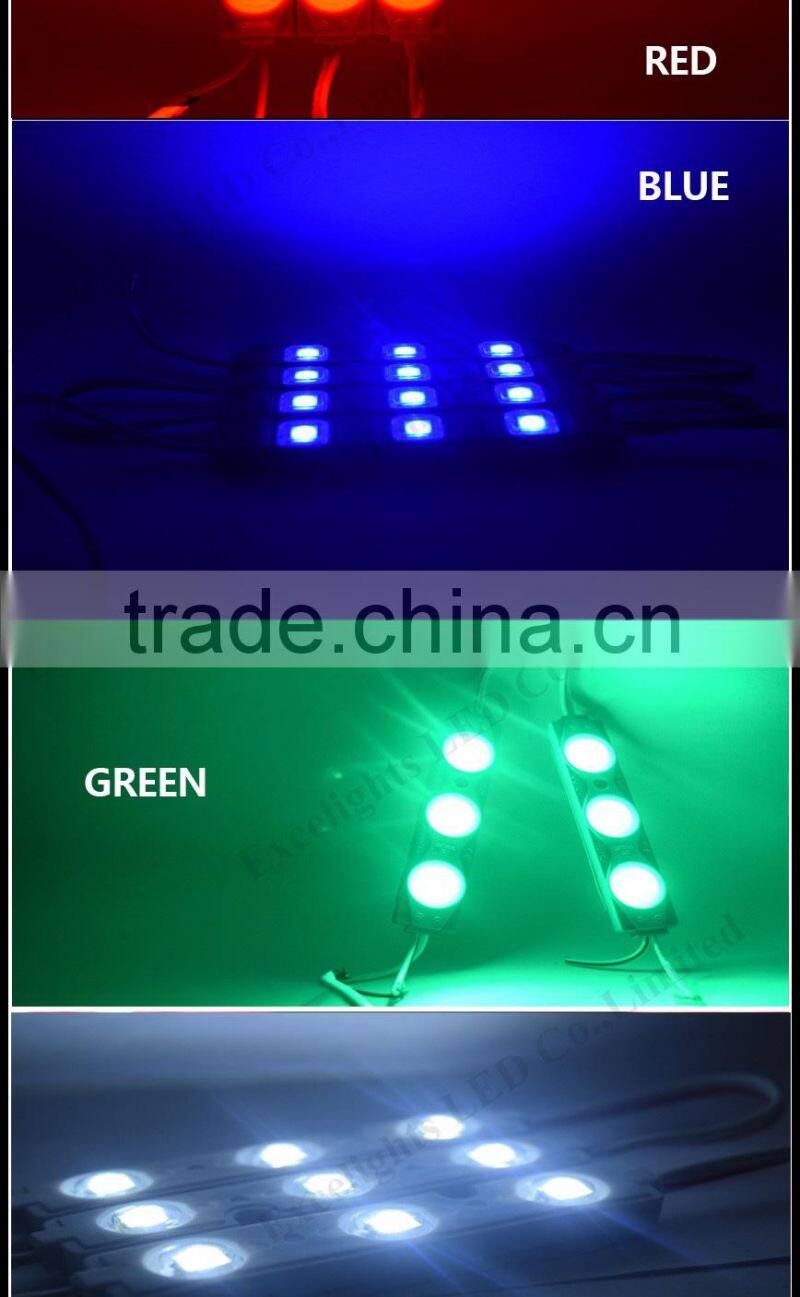

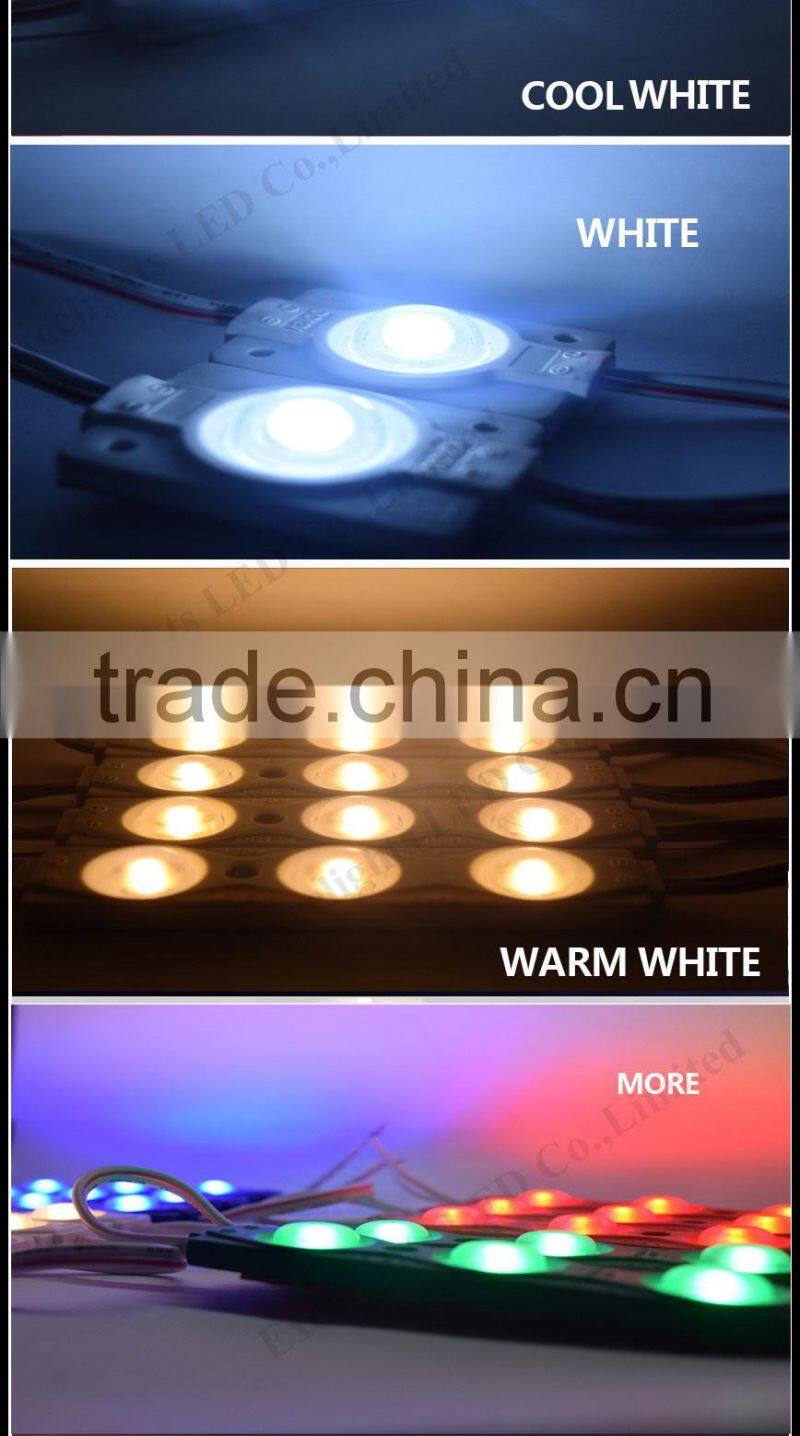

9. Color: Various colors are available
Features for LED Module RGB:

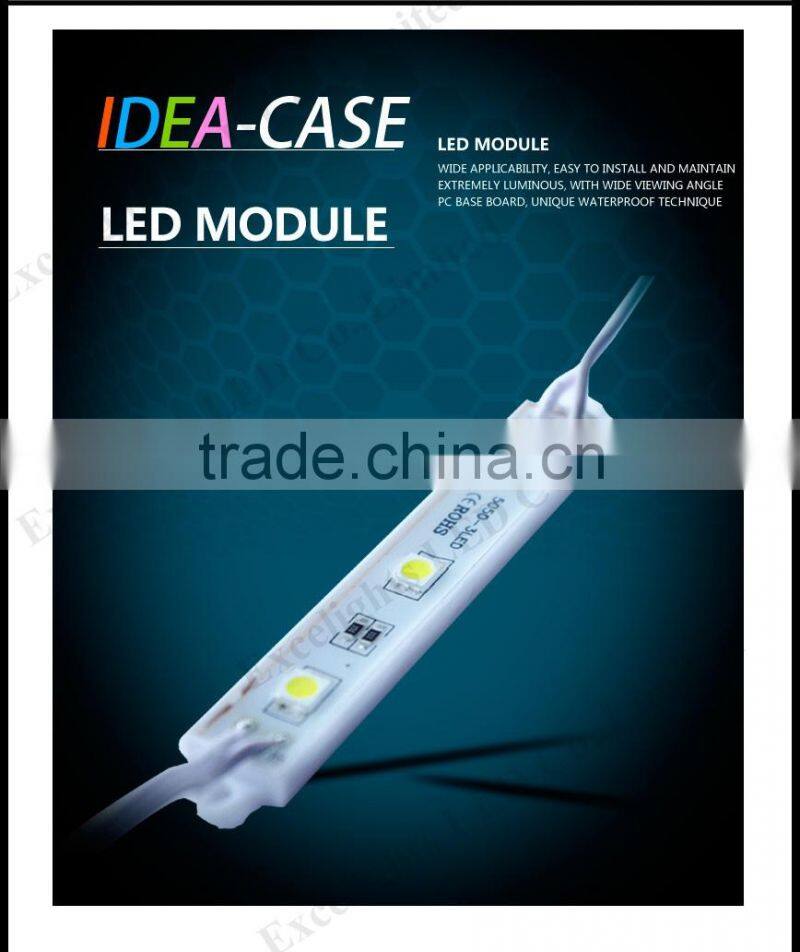

1. Wide applicability, easy to install and maintain
2. Extremely luminous, with wide viewing angle
3. Energy saving and environmental friendly
4. Various colors are available

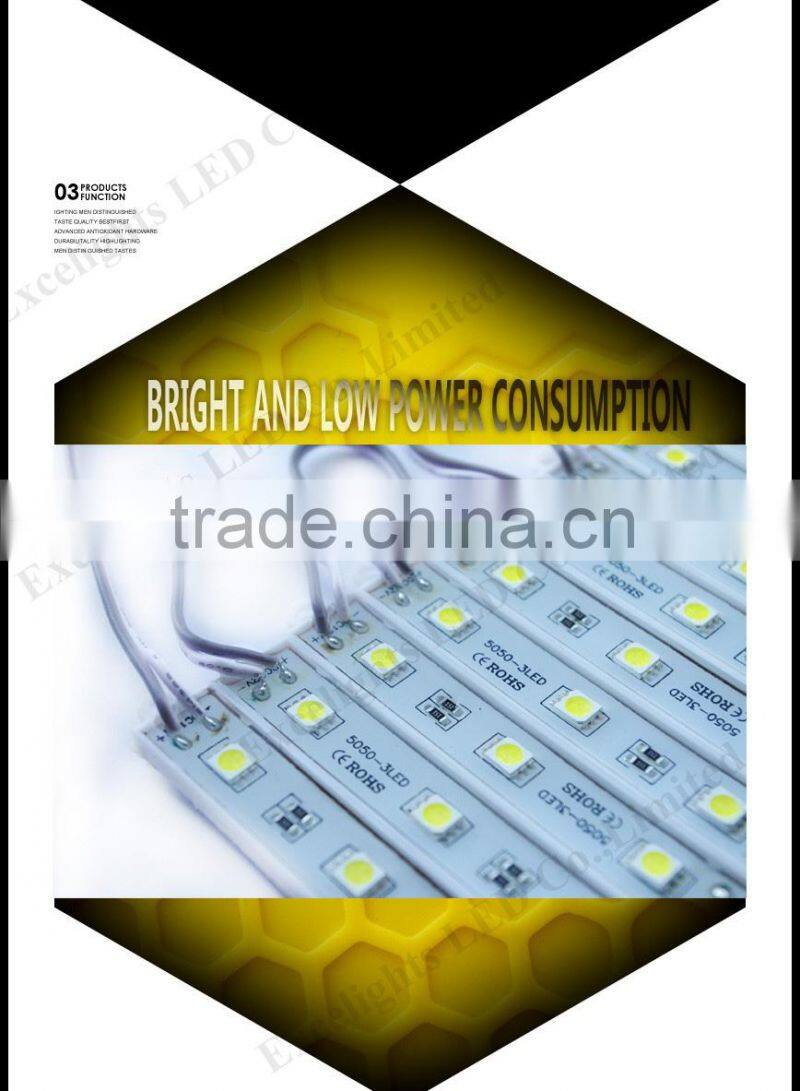

5. Very bright and low power consumption
6. Long lifespan: More than 50, 000 hours.
| Item | Color | LED Quantity | Voltage | Wattage | size(mm) |
| EL-MDB03-W | White | 5050-3pcs | 12V DC | 0.72W | 75*12mm |
| EL-MDB03-R | red | ||||
| EL-MDB03-G | green | ||||
| EL-MDB03-B | blue | ||||
| EL-MDB03-Y | yellow | ||||
| EL-12S3-5050RGB | RGB |
Applications for RGB LED Module:
1. Idea for in cabaret, cabinet, furniture, landscape, and architectural lighting
2. Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
3. For cable and fixing hole
4. Channel letters backlighting
5. Advertisement signs acklighting
6. Advertisement light boxes backlighting
Installation Instruction for LED Module RGB:
1. Main power cable dimension: should exceed 2x1.5mm². To prevent damage from overheating caused by overload, the extended module cable (if necessary) should adopt dimension above 0.75mm²/18#.,Cable length between power and module should not be exceed 2m, if not it’ll suffer from power loss the total power consumption will also increased.
2. Adopt method 1, the maximum is 20 PCS. (Don’t over-connecting).
3. Adopt method 2, the maximum is 25 PCS. (Don’t over-connecting).
4. Take off the adhesive tape from the back of modules, stick them in the light box or advertisement board for initial settlement, then fix the module by 2 piece of ST2.9x10 mm self tapping screws, or you can also fix the module by glass glue.
5. The standard number is 20 pcs for each string; they also can be cut off on customer’s requirement.
6. During the connection,using diagonal pliers to cut off power cable between modules, peel off the plastic around 10mm, wiring the cables and then connect them to their respective isolation port(the white-red cable heads to positive,the white cable for negtive).Do remember check the conductivity and reliablity of the cable after the connection, genernally, they can’t be pulled out of the port by middling force.
7. If there are extra cable for the string-end module, peel off the cable coat by 10mm (around)then connect then into isolation port.
8. To make sure that the waterproof and anti-corrosive reliability, grease some silicon glue (neutral glass glue or waterproof glue.) into the connection port for further protection.
9. Don’t touch the product when they are electrified.
10. Use reliable power driver that with certifications. (With short circuit protection, overload protection and over-current protection.)
LED Module RGB:
0.0056kg/pcs.
4200pcs/CTN
N.W: 23.75KG/CTN G.W: 24.75KG/CTN
Size for CTN: 52*31*41cm
Weight for CTN: 1.35KG.
