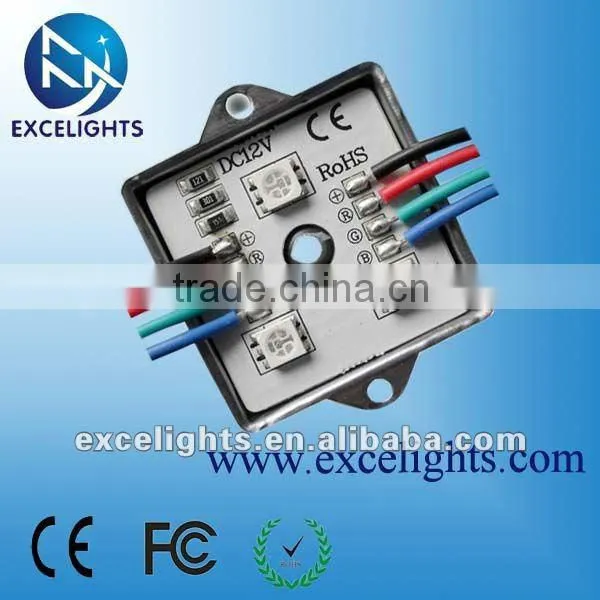

LED RGB Module:
Specifications for LED RGB Module:
1. Lighting source: 5050 SMD LED
2. Quantity of LED: 3 PCS
3. Operating voltage: 12V DC
4. Wattage: 0.72 W
5. Dimension: 75*12 mm
6. Forward current: 20 to 30mA
7. Waterproof grade: IP65 Epoxy resin
8. Viewing angle: 120°
9. Color: Various colors are available
Features for RGB Module:
1. Wide applicability, easy to install and maintain
2. Extremely luminous, with wide viewing angle
3. Energy saving and environmental friendly
4. Various colors are available
5. Very bright and low power consumption
6. Long lifesapn: More than 50, 000 hours.
| Item | Color | LED Quantity | Voltage | Wattage | size(mm) |
| EL-12S3-5050W-2 | White | 5050-3pcs | 12V DC | 0.72W | 45*45mm |
| EL-12S3-5050R-2 | red | ||||
| EL-12S3-5050G-2 | green | ||||
| EL-12S3-5050B-2 | blue | ||||
| EL-12S3-5050Y-2 | yellow | ||||
| EL-12S3-5050RGB-2 | RGB |
Application:
1. Idea for in cabaret, cabinet, furniture, landscape, and architectural lighting
2. Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
3. For cable and fixing hole
4. Channel letters backlighting
5. Advertisement signs acklighting
6. Advertisement light boxes backlighting
Machines for doling light source:
